Comfort Company Rigid Lateral Pads User Manual
Rigid lateral pads
Toll Free 800.564.9248
www.comfortcompany.com
509 South 22nd Ave Bozeman, MT 59718
IS-RIGIDLATERALPADS
REV0413

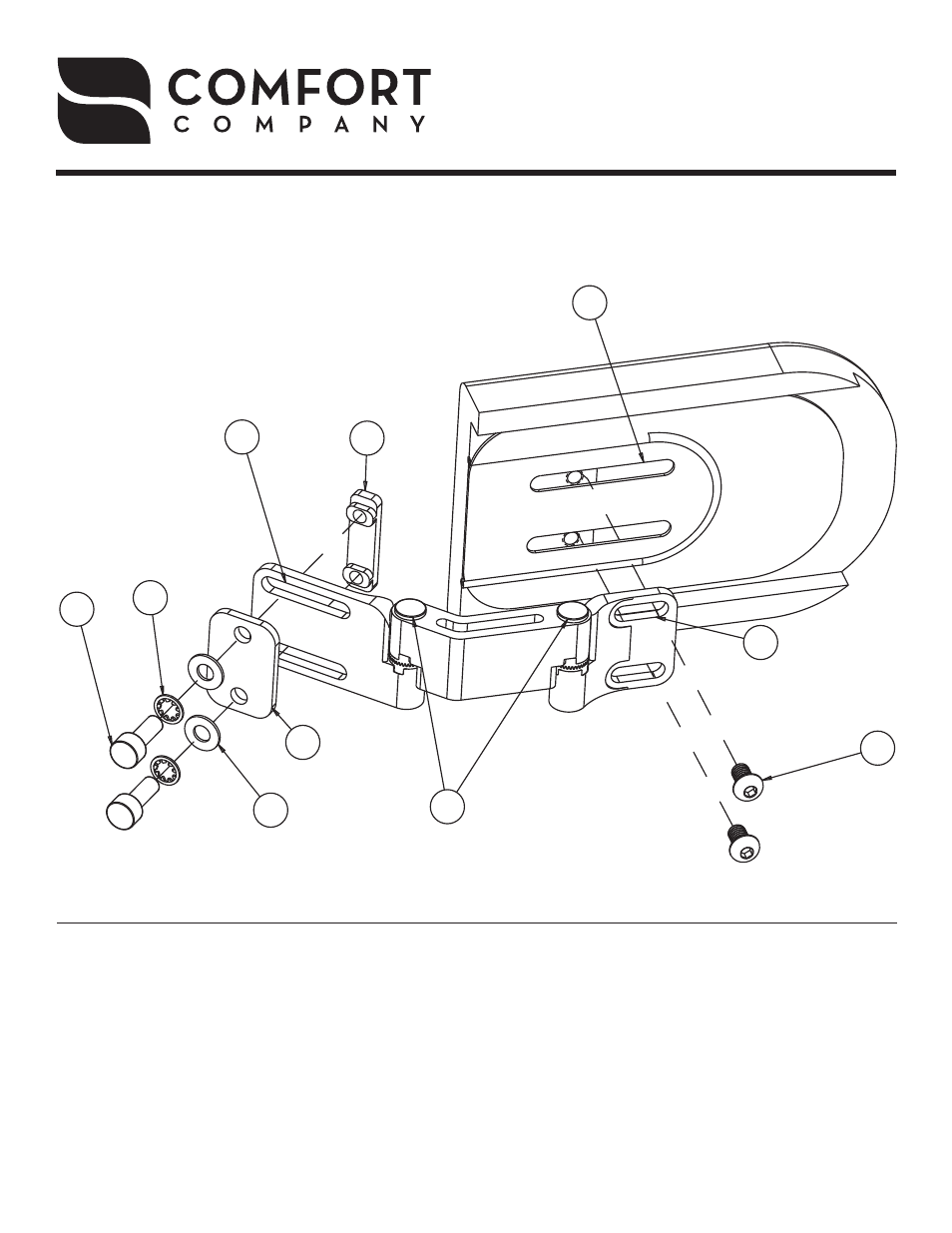

Loosen bolts (A) using the provided 5mm Allen
wrench. Fasten the base end of the hardware to
the mounting bracket on the wheelchair in the
order shown above : (A) -> (B) -> (A) -> (C) ->(D) ->
(E) -> (F).
Loosen bolts (G) from lateral assembly (H) and
securely fasten once they have been properly
positioned using the slots on (I).
To adjust the orientation of the mounting
brackets (E and H), loosen but do not remove
bolts (J) using the 5mm Allen Wrench. Securely
tighten once mounting brackets are in position.
1
2
3
PARTS INCLUDED:
1 - Rigid Lateral Hardware Assembly (LT_-RF)
1 - 5mm Allen Wrench
1 - 5/32” Allen Wrench
RIGID LATERAL PADS
NOTE: You can adjust the depth of the hardware by
sliding the bolt assembly along the slots shown in (E).
A
B
C
D
E
F
G
H
I
J
