PAPER ROLL REPLACEMENT AND OTHER MAINTENANCE OPERATIONS
INSTALLING THE BECEIFT PAPER

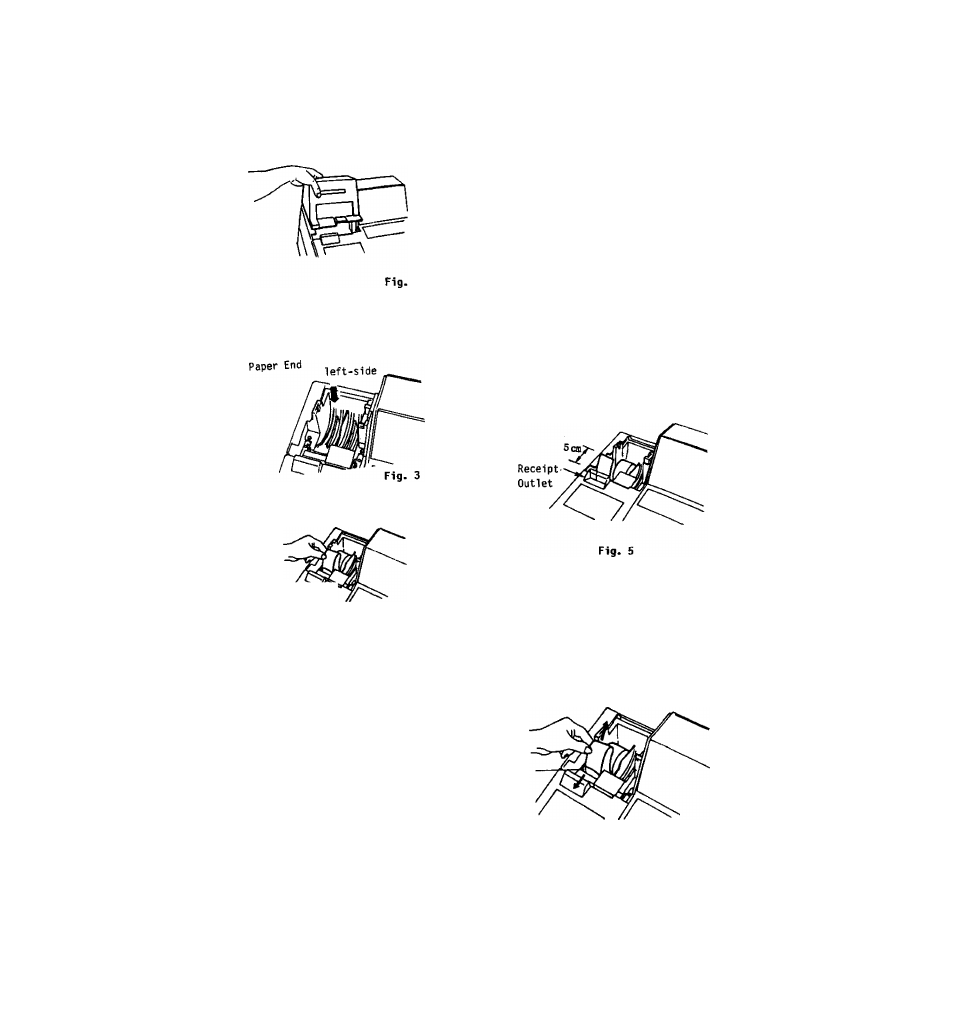

Fig. 2
Fig. 4
1. Turn the Mode Lock to the "REG" position.
2.
Remove
the
Receipt
Cover
by
pulling
it
upward (Fig. 1).
3.
Set
the
new
paper
roll
in
the
receipt
roll
holder
with
the
paper
end
fed
from
the
bottom as shown in Fig. 2 (Fig. 3).
4.
Insert
the
paper
end
into
receipt
inlet
as
holding the [RF] key pushed down (Fig. 4).
5.
When
the
paper
comes
out
of
the
receipt
outlet
for
approx.
5cm
(or
2
inches),
release the [RF] key (Fig. 5).
6.
Attach
the
Receipt
Cover.
Meanwhile,
the
paper end must be seen outside the cover.
7.
Press
the
[C]
key
to
clear
the
paper-end
condition,
and
depress
the
[NS]
key
and
cut
the
issued
receipt
to
check
if
the
paper has properly been set.
REMOVING THE RECEIPT PAPER
1.
Remove
the
Receipt
Cover
by
pulling
it
upward (Fig. 1).
2.
Pull
the
Free
Lever
frontward
while
pulling
the
old
paper
core
upward
to
remove the remaining paper tail (Fig. 6).
Free Lever
Fig. 6
