29

Step 6

—Adjust Factory-Installed Options

CobraEnergy Recovery Units
Please refer to the supplement provided for information on

installing and operating the factory optional COBRA Energy

Recovery Units. These units are equipped with a factory--installed
energy recovery unit and have different installation and operation

procedures than the standard unit.
Humidi--MizerAdaptive Dehumidification

System
Humidi--MiZer system operation can be controlled by field

installation of a Carrier--approved humidistat. (See Fig. 14.)
NOTE: A light commercial Thermidistat™ device (Fig. 15) can

be used instead of the humidistat if desired. The Thermidistat
device includes a thermostat and a humidistat. The humidistat is
normally used in applications where a temperature sensor is
already provided (units with PremierLink™ control).

% RELATIVE HUMIDITY

C06126

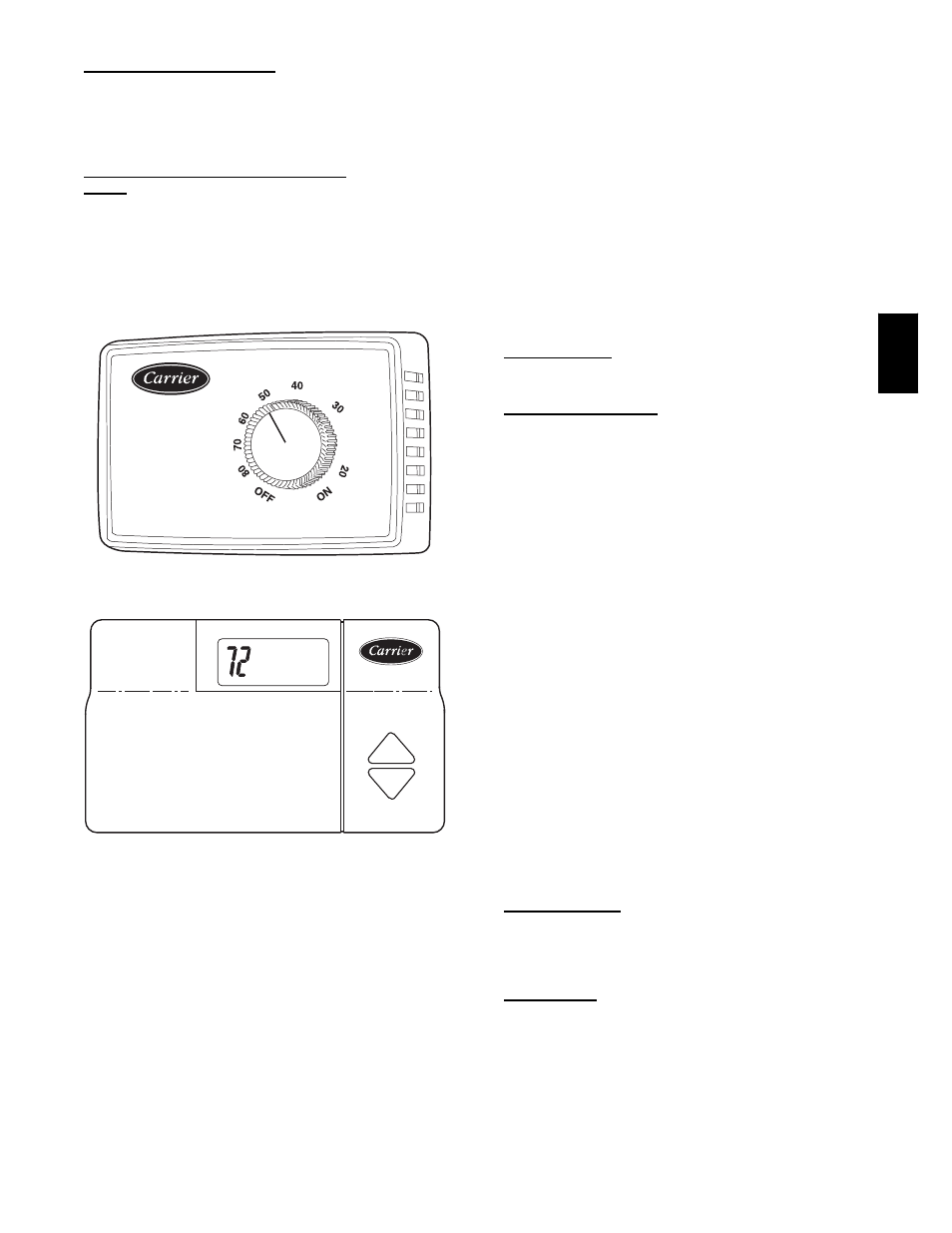

Fig. 14

--- Accessory Field--Installed Humidistat

C06127

Fig. 15

--- Light Commercial thermidistat Device

To install the humidistat:

1. Route humidistat cable through hole provided in unit

control box.

2. Some models may be equipped with a raceway built into

the corner post on the left side of control box (See Fig.

13.) This raceway provides the required clearance between
high--voltage and low voltage wiring. For models without
a raceway, ensure to provide the NEC required clearance

between high--voltage and low--voltage wiring.

3. Use a wire nut to connect humidistat cable into low-

voltage wiring as shown in Fig. 16.

To install Thermidistat device:

1. Route Thermidistat cable through hole provided in unit

control box.

2. Some models may be equipped with a raceway built into

the corner post on the left side of control box (See Fig.
13.) This raceway provides the required clearance between
high--voltage and low voltage wiring. For models without

a raceway, ensure to provide the NEC required clearance
between high--voltage and low--voltage wiring.

3. A field-supplied relay must be installed between the

thermidistat and the Humidi-Mizer circuit (recommended
relay: HN612KK324). (See Fig. 17.) The relay coil is

connected between the DEHUM output and C (common)
of the unit. The relay controls the Humidi-MiZer solenoid

valve and must be wired between the Humidi-MiZer fuse
and the low-pressure switch. Refer to the installation
instructions included with the Carrier Light Commercial

Thermidistat device for more information.

Disconnect Switch
The optional disconnect switch is non--fused. The switch has the
capability of being locked in place for safety purposes.
Manual Outdoor Damper
The outdoor--air hood and screen are attached to the basepan at

the bottom of the unit for shipping.
Assembly:

1. Determine quantity of ventilation required for building.

Record amount for use in Step 8.

2. Remove and save outdoor air opening panel and screws.

(See Fig. 18.)

3. Remove evaporator coil access panel. Separate hood and

screen from basepan by removing the 4 screws securing
them. Save all screws.

4. Replace evaporator coil access panel.
5. Place hood on front of outdoor air opening panel. See

Fig. 19 for hood details. Secure top of hood with the

4 screws removed in Step 3. (See Fig. 20.)

6. Remove and save 6 screws (3 on each side) from sides of

the manual outdoor-air damper.

7. Align screw holes on hood with screw holes on side of

manual outdoor-air damper. (See Fig. 19 and 20.) Secure

hood with 6 screws from Step 6.

8. Adjust minimum position setting of the damper blade by

adjusting the manual outdoor-air adjustment screws on the
front of the damper blade. (See Fig. 18.) Slide blade

vertically until it is in the appropriate position determined
by Fig. 21. Tighten screws.

9. Remove and save screws currently on sides of hood.

Insert screen. Secure screen to hood using the screws. (See
Fig. 20.)

Convenience Outlet
An optional convenience outlet provides power for rooftop use.

For maintenance personnel safety, the convenience outlet power
is off when the unit disconnect is off. Adjacent unit outlets may

be used for service tools.
Novar Controls
Optional Novar controls (ETM 3051) are available for
replacement or new construction jobs.

50H

E,

H

J
