LEGEND
C — Contactor
COMP — Compressor
IFC — Indoor (Evaporator) Fan Contactor
NEC — National Electrical Code
TB — Terminal Block
208/230-1-60
575-3-60
(SIZES 006 AND 007)
208/230-3-60
(SIZES 004 AND 005)
208/230-3-60
460-3-60
(SIZES 006 AND 007)
575-3-60
(SIZES 004 AND 005)
460-3-60
(SIZES 004 AND 005)
C06158

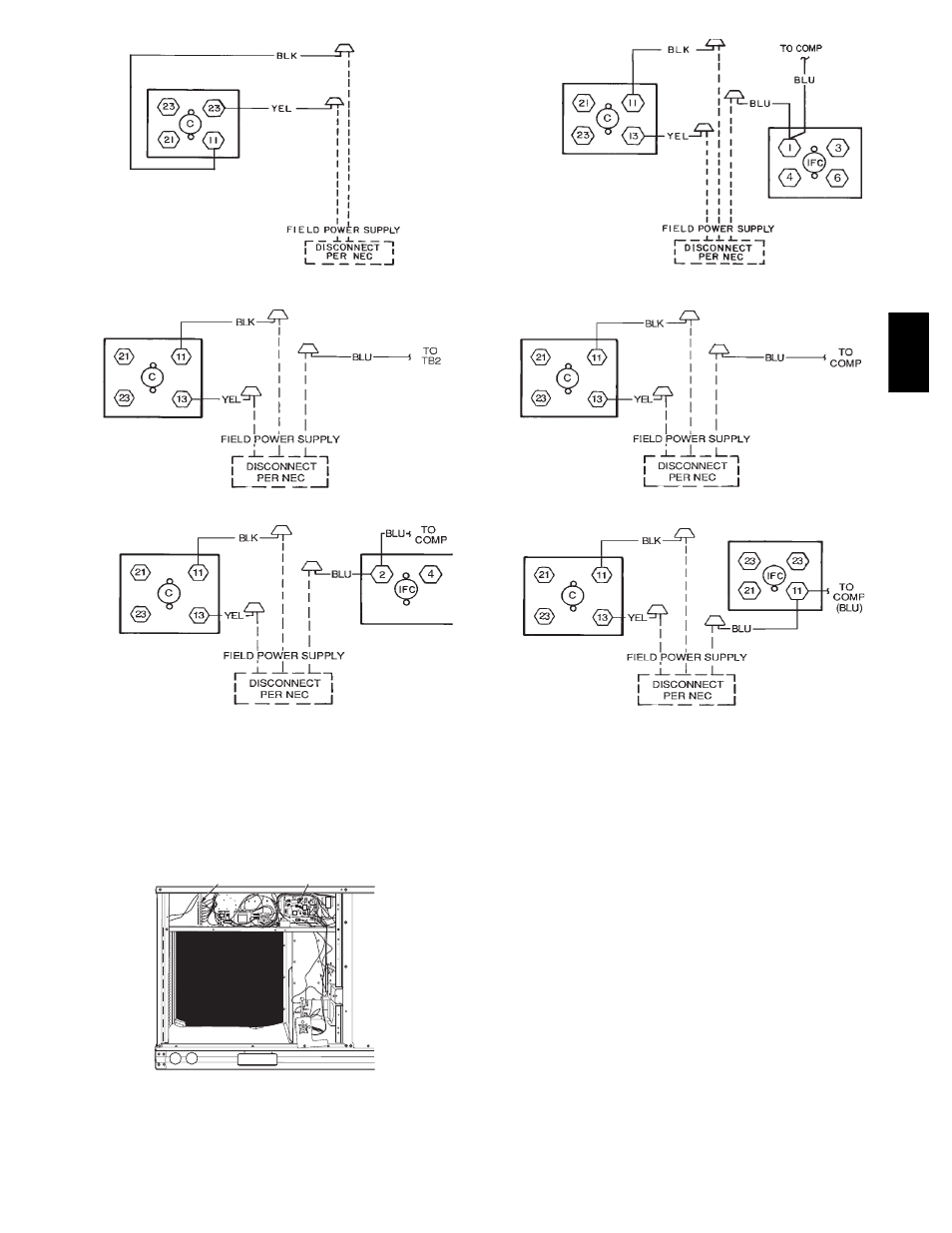

Fig. 12 --- Power Wiring Connections
LOW VOLTAGE
CONNECTIONS
INTEGRATED GAS UNIT
CONTROLLER (IGC)
C06125
Fig. 13 --- Field Control Wiring Raceway
