5
NOTES:
1. Place unit on curb as close as possible to the duct end.
2. Dimension in ( ) is in millimeters.
3. Hook rigging shackles through holes in base rail as shown in detail "A." Holes in base rails are centered around the unit center of gravity. Use wooden
top skid when rigging to prevent rigging straps from damaging unit.
4. Weights include base unit without economizer. See Table 1 for unit operating weights with accessory economizer.
5. Weights include base unit without the Humidi-MiZer
TM adaptive dehumidification system. See Table 1 for unit operating weights with the
Humidi-MiZer system.
C06111

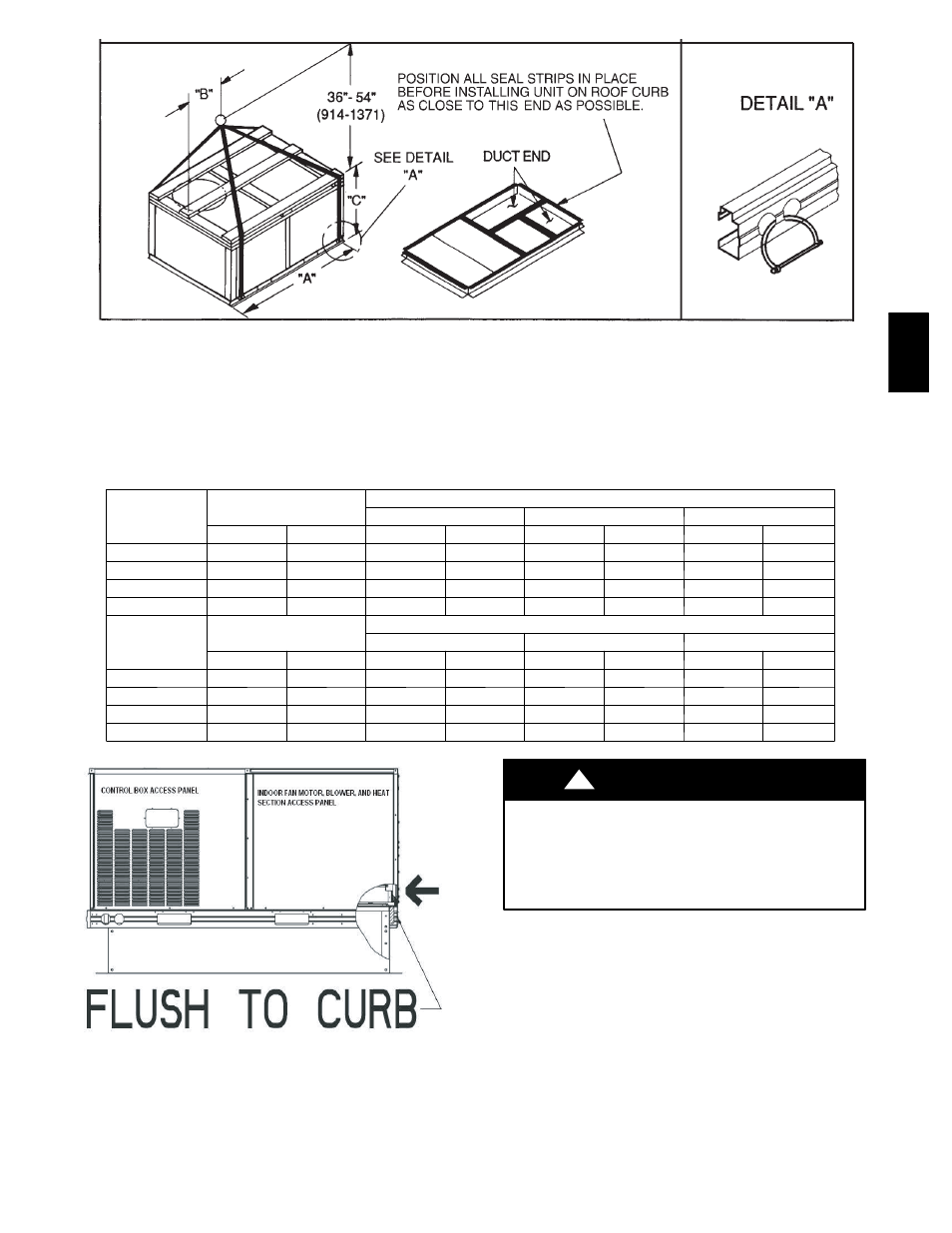

Fig. 6 --- Rigging Details
UNIT
50HE
OPERATING
WEIGHT
DIMENSIONS
“A” “B” “C”
lb kg in. mm in. mm in. mm
003 435 197 73.69 1872 35.50 902 33.31 847
004 445 202 73.69 1872 35.50 902 33.31 847
005 465 211 73.69 1872 35.50 902 33.31 847
006 520 236 73.69 1872 35.50 902 33.31 847
UNIT
50HJ
OPERATING
WEIGHT
DIMENSIONS
“A” “B” “C”
lb kg in. mm in. mm in. mm
004 530 240 73.69 1872 35.50 902 33.31 847
005 540 245 73.69 1872 35.50 902 33.31 847
006 560 254 73.69 1872 35.50 902 33.31 847
007 635 288 73.69 1872 35.50 902 33.31 847
C06208
Fig. 7 --- Roof Curb Alignment
PERSONAL INJURY AND PROPERTY DAMAGE
HAZARD
Failure to follow this warning could result in personal
injury, death and property damage.
All panels must be in place when rigging and lifting.
! WARNING
