Connecting the Alarm Terminals

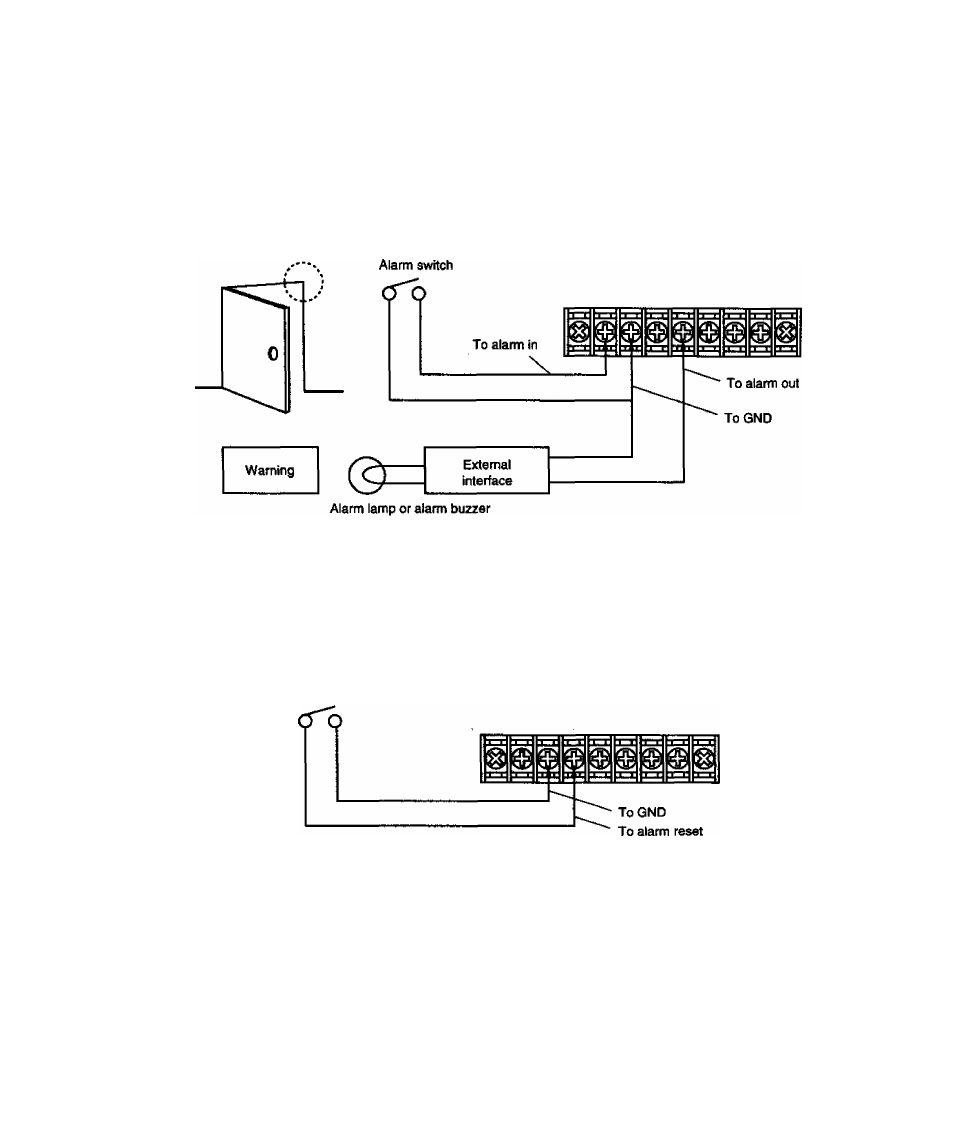

Connecting the ALARM IN/OUT terminals
• When the alarm switch Is ON, an alarm recoiling starts. It is possible to confirm the warning from outside by connecting a
lamp or a buzzer to the alarm output.
Connecting alarm reset input
Alarm reset switch
> When the alarm switch is ON, the alarm recording starts. However, when the alarm reset switch is turned ON after starting, the
al^m recording is released and the unit returns to the original condition of time-lapse recording.
Note:
When simultaneously connecting alarm input and alarm reset input, be sure to carefully check the voltage levels of them.
29
