Connecting Your DVD Player
Using HOMI (Best)
DVD
OO
DVD players that have a HDMI digital interface should be connected using HDMI for optimal results. To
maintain image quality, use a VIZIO certified HDMI cable. This cable is available in 6, 15, and 30 foot
for details.
1
.
2
.
3.
4.
Turn off your HDTV and DVD player.

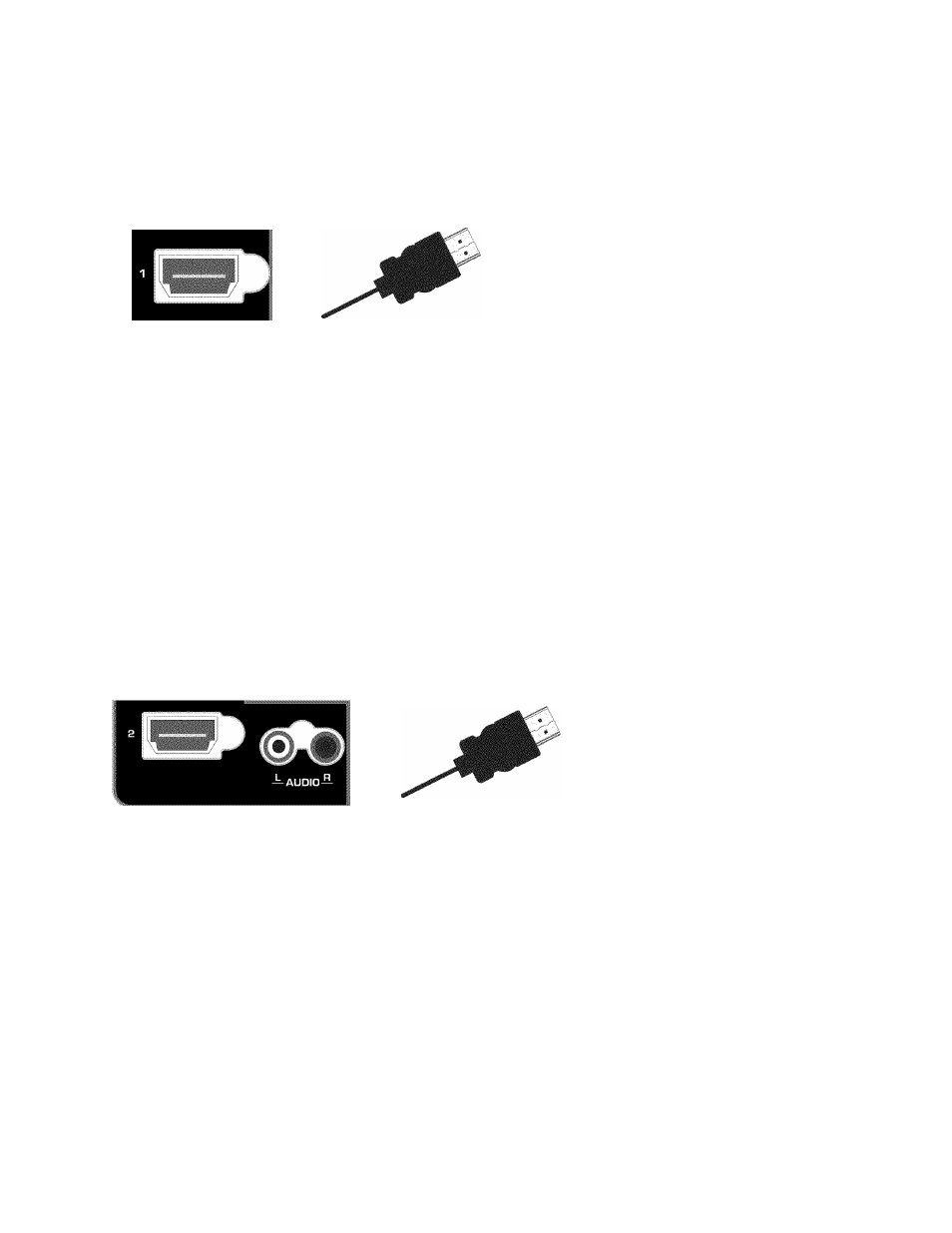

Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDM11 or
2 jack on your HDTV.
Turn on the power to your HDTV and your DVD player.
Select HDMI-1 or HDMI-2 using the INPUT button on the remote control or side of the TV.
The HDMI input on your HDTV supports High-bandwidth Digital Content Protection (HDCP).
HDCP encrypts the transmission between the video source and the digital display for added
security and protection.
Refer to your DVD player user manual for more information about the video output requirements.
HDMI Connections for DVD Players with DVI
n
DVD
OO
1. Turn off your HDTV and DVD player.
2. Using a HDMI-DVI cable, connect the DVI end to your DVD player and the HDMI end to the
HDMI 2 Jack on your HDTV.
3. Connect the audio cables (white and red) from the DVI audio output jacks on the DVD player to
the HDMI 2 L and R AUDIO jacks on your HDTV.
4. Turn on the power to your HDTV and your DVD player.
5. Select HDMI-2 using the INPUT button on the remote control or side of the TV.
