Carrier 00EFN900003000A - Manual (Page 8)

8
SIDE VIEW END VIEW
TOP VIEW
30-3/8
(770)
22-7/8
(581)
23-1/2
(598)
7-7/8
(200)
2 x Ø 7/16 (11)
29-3/8
(746)
6-1/2
(166)
7/16
(12)
5/8
(17)
7/16
(11)
7/8
(21)
7/16
(11)
7/8
(21)
7-7/8
(256)
24-1/4
(611)
30-3/4
(781)
23-1/32
(585)
4 x Ø 7/16 (11)
29-3/8
(746)
8-3/4
(222)
5/8
(17) 7/16
(12)
2-1/4
(56)
SIDE VIEW END VIEW
TOP VIEW

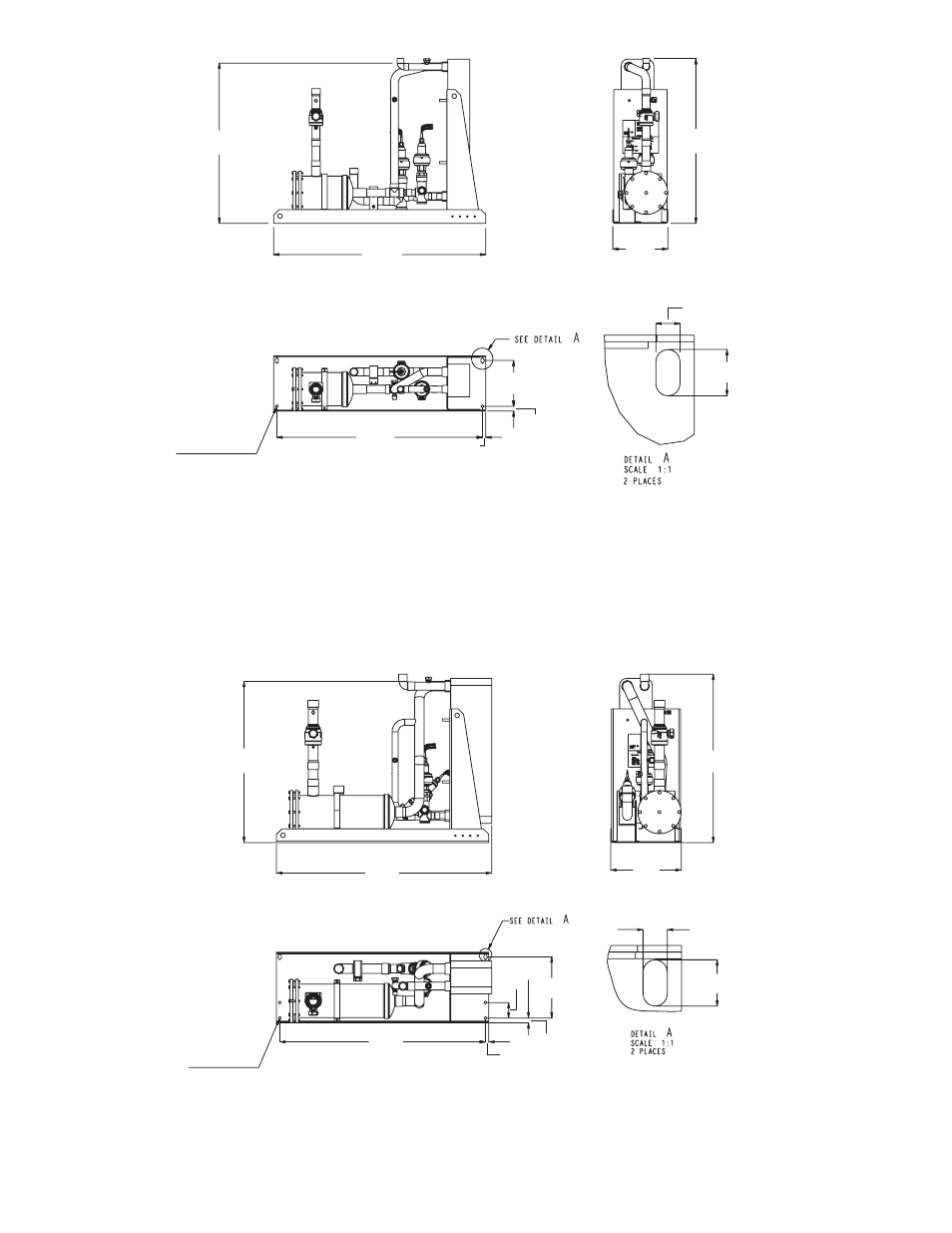

Fig. 5A — 30XA090-160 Economizer Dimensions
Fig. 5B — 30XA180-350 Economizer Dimensions
NOTES:
1. Measurements are shown in inches (millimeters).
2. Recommended service clearance around the economizer is 36 in. (914 mm).
NOTES:
1. Measurements are shown in inches (millimeters).
2. Recommended service clearance around the economizer is 36 in. (914 mm).
a30-4516
a30-4517
