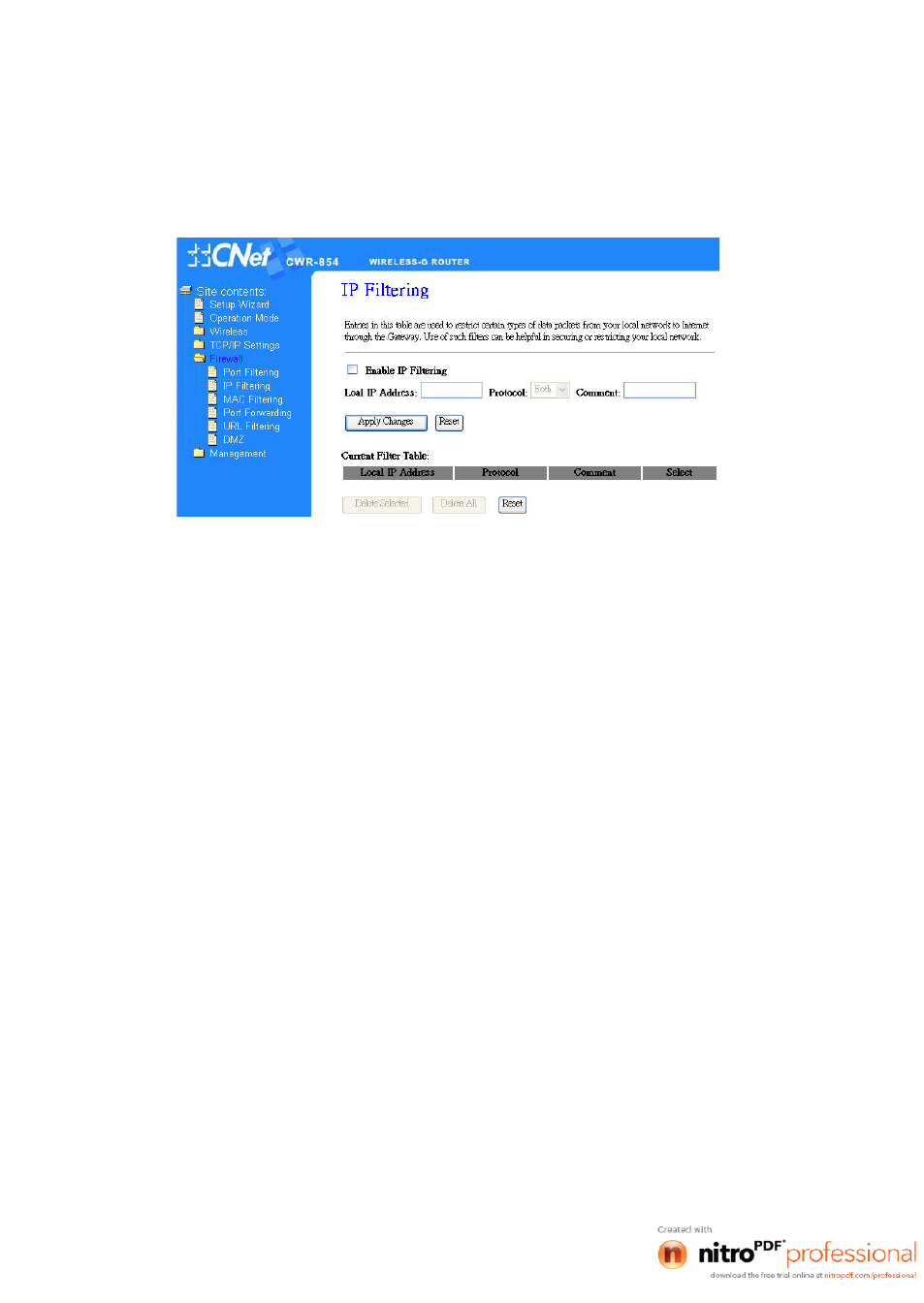

3.5.2 IP Filtering
When enabled, LAN clients are blocked / filtered from accessing the Internet based on their IP
addresses.
 Enable IP Filtering: Enable the IP Filtering function.
 Local IP Address: IP address that is to be blocked from accessing the Internet.
 Protocol: Select the protocol to be blocked UDP, TCP or both .
 Comment: This field is used for adding comments for each access control entry.
 Apply Changes: Click on “Apply Changes” to save the settings.
 Reset: Click on “Reset” to undo your changes.
 Current Filter Table: A table shows the list of current IP Addresses filtered.
 Delete Selected: Select and delete any IP Address in the Current Filter Table.
 Delete All: Delete all listed IP Address in the Current Filter Table.
 Reset: Click on “Reset” to undo your changes.
