CNET CWR-854 - Manual (Page 29)

29
 WEP Encryption
 Encryption: “WEP” (Wired Equivalent Privacy) encryption type.
 Set WEP Key: Only active when “Use 802.1x Authentication” is not selected.
 Use 802.1x Authentication: When this feature is enabled, users need to enter
parameters of the “RADIUS Server” and select the encryption key length to be
“WEP 64bits” or “WEP 128bits”.
 Authentication RADIUS Server: RADIUS Server’s Port number, IP address
and Password.
 Apply Changes: Click on “Apply Changes” to save the setting.
 Reset: Click on “Reset” button to undo your changes.

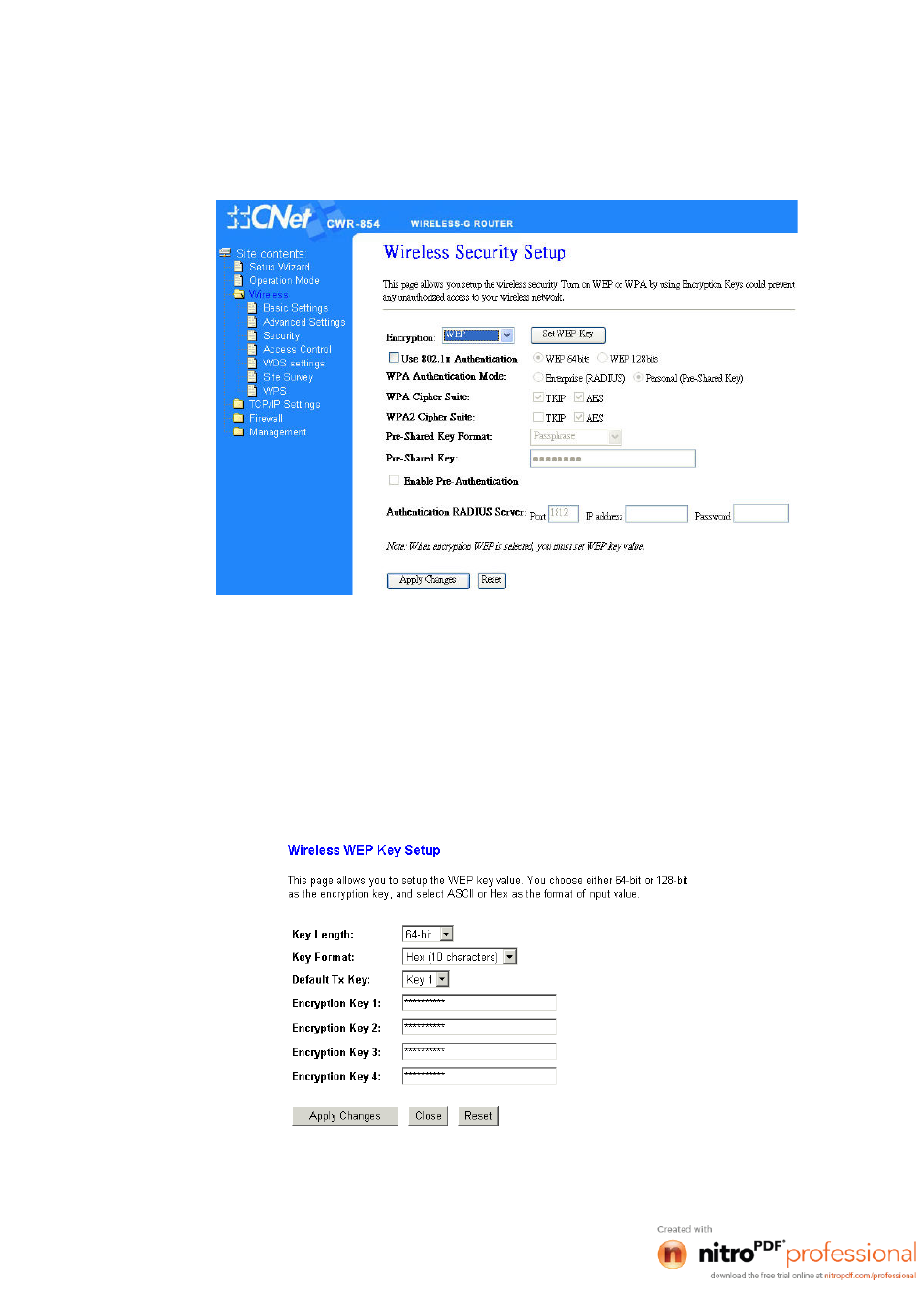

When “Set WEP Key” is selected, the Wireless WEP Key Setup window will display as
below:
