P A R T N A M E S
14
6
7
- 8
■ 9
10

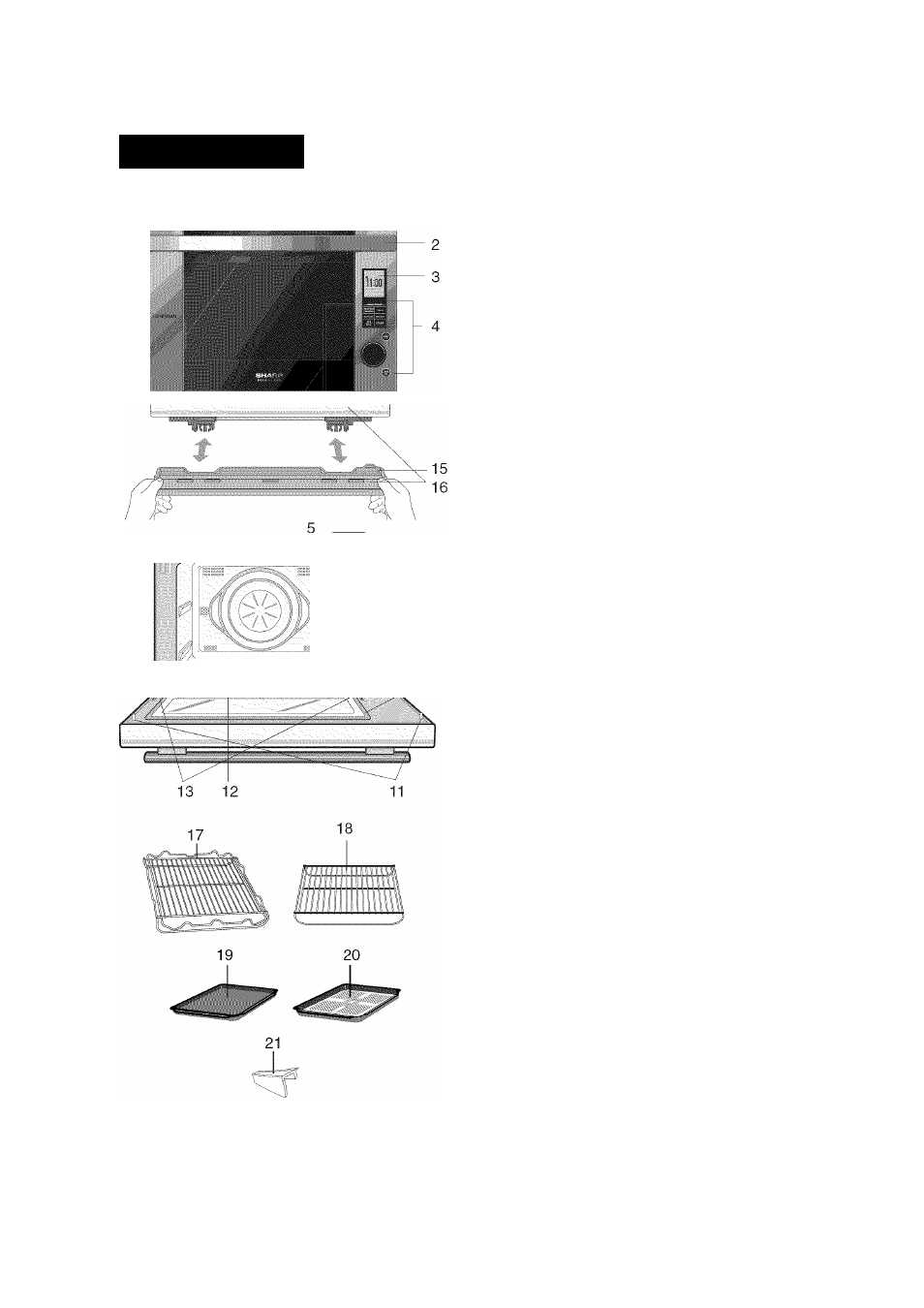

1 Air vent opening
2 Handle
3 LCD display
4 Control panel
5 Oven light
6 Upper level
7 Lower level
8 Reservoir lid (See page 13.)
9 Reservoir (See page 13.)
10 Door gasket
11 Latches
12 Ceramic oven floor
13 Door hinges
14 Steam outlets
15 Drip tray lid (See page 13.)
16 Drip tray (See page 13.)
ACCESSORIES
17 High rack
For SuperSteam Convection, Convection
and Steam.
Do not use when microwave cooking.
Always place on baking tray.
18 Low rack
For SuperSteam Convection, Convection
and Steam.
Do not use when microwave cooking.
Always place on baking tray.
19 Baking tray x2
For SuperSteam Convection, Convection,
Steam and Descale function. Do not use
when microwave cooking.
20 Steam basket
For Steam. You can also use for
SuperSteam Convection and Convection.
Do not use when microwave cooking.
Place on high rack in baking tray.
21 Descaling guide (See page 15.)
PRINTED MATERIALS included:
Operation Manual
SuperSteam Oven Cookbook
Touch Guide
11
