Installing the 9H423-28 Module
2-2
3. Install the FEPIM as shown in Figure 2-1. Ensure that the rear connector is
seated firmly before tightening the three mounting screws.
4. Replace the plate and two screws on the side of the FEPIM slot.

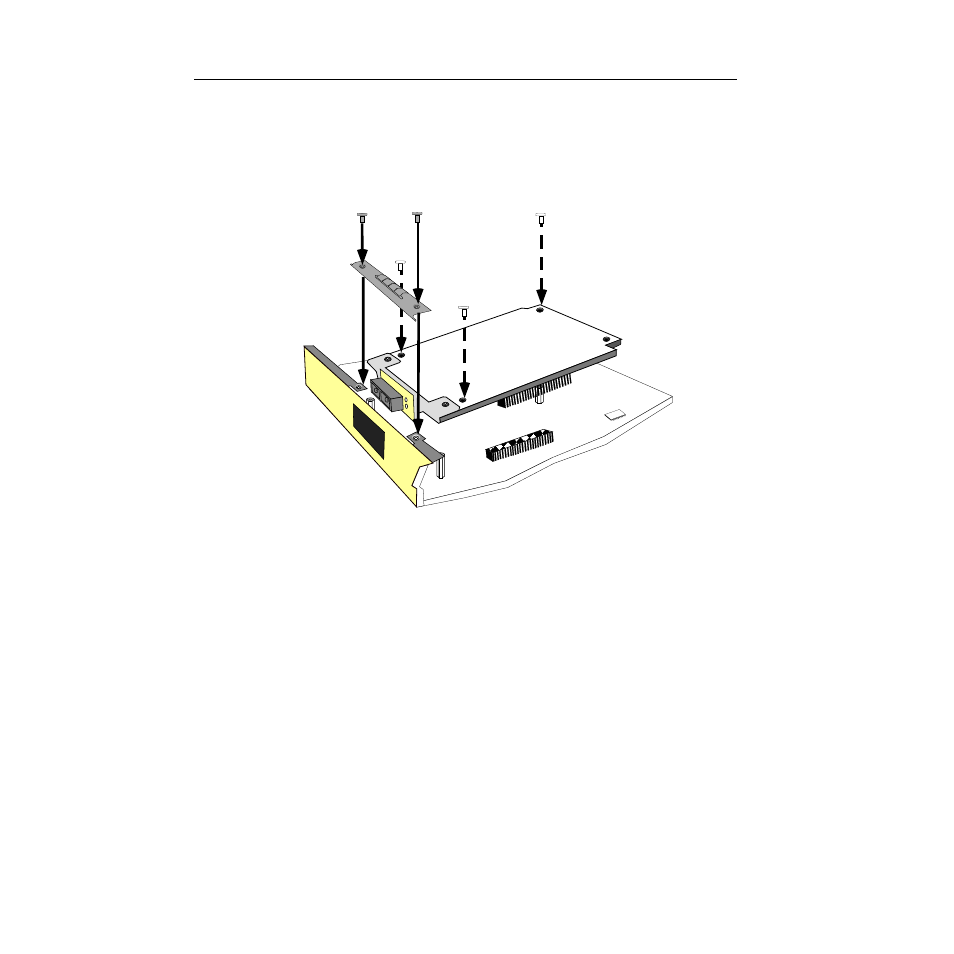

Figure 2-1. Installing an FEPIM
User Accessible Components
Figure 2-2 shows the various components that can be accessed by users. These
consist of an eight-position dip switch (explained in the next section), replaceable
PROMs, and sockets for memory and flash upgrades. These will be used for
future upgrades. Instructions for installing the components will be supplied with
the upgrade kit.
