WIRE WALLPLATE OR SUBBASE
NOTE: All wiring must comply with local eleotrical
codes and ordinances.
□

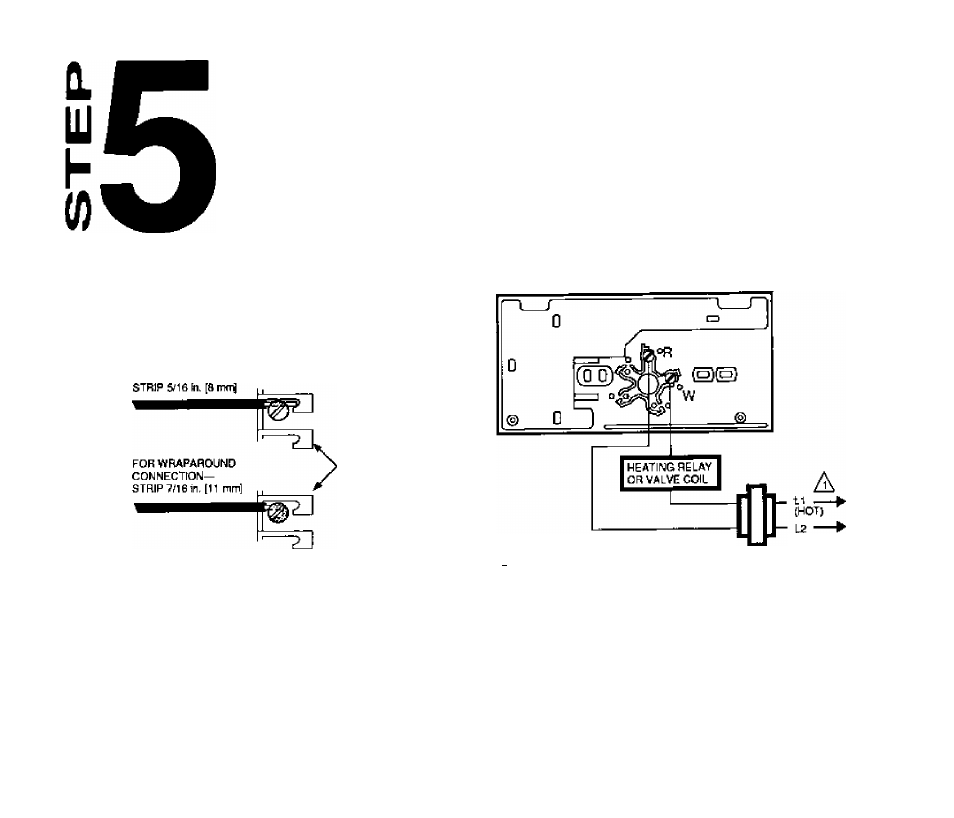

Refer to illustration and strip thermostat wire
insuiation as necessary.
FOfl STRAIGHT
CONNECTION-
BARRIER
For CT1500 heating-only
/\
POWER SUPPLY, PROVIDE DISCONNECT MEANS AND
OVERLOAD PROTECTION AS REOUIRED.
□
Connect either wire to R terminal and the
other wire to W terminal. Firmly tighten
screws.
□
Push excess wire back into wall, and plug
hole in wall with nonflammable insuiation to
prevent drafts from affecting thermostat operation.
