NAT: Network Address Translation hides private IP addresses behind the router's IP address. This is the simplest

and most common choice for users, because NAT does the translation work for you.



Standard: NAT-less routing. If you select Standard, you must separately configure your IP addresses so that they

will be publically accessible. Typically you will not select this option unless you have a specific reason to bypass
NAT.



IP Passthrough: IP Passthrough passes the IP address given by the modem WAN through the router. All Ethernet

ports must be in LAN mode or Disabled mode, and Hotspot, VPN, and GRE must be disabled.



Disabled: Disable this network.

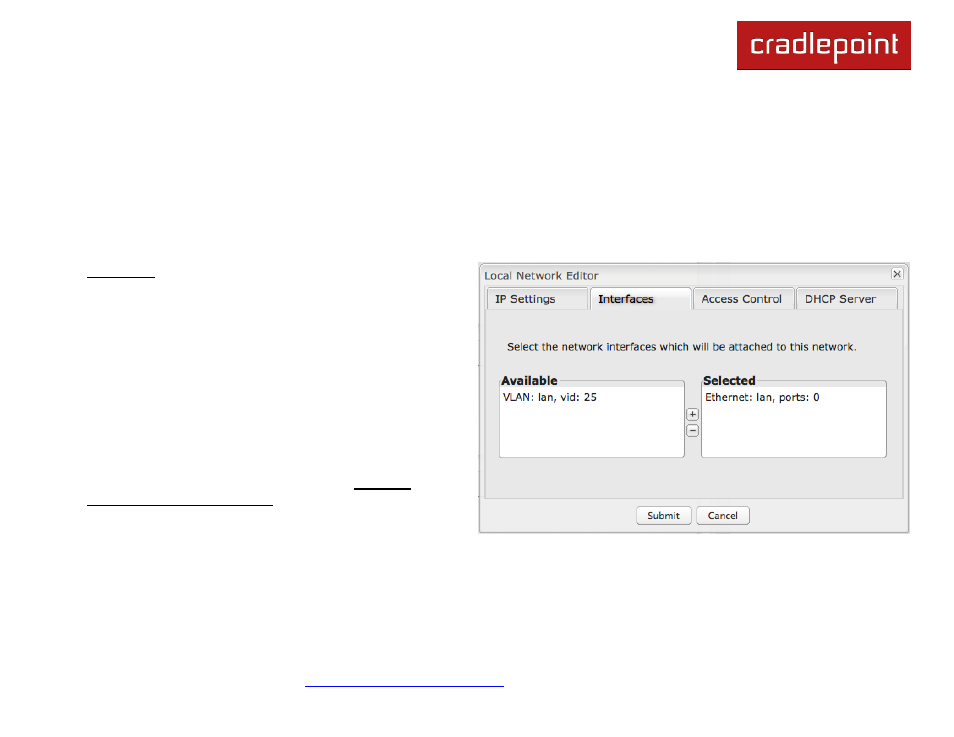

Interfaces:

Select network interfaces to attach to this network. Choose
from Ethernet ports and VLAN interfaces. Double-click on
any of the interfaces shown on the left in the Available
section to move them to the Selected section on the right
(or highlight an interface and click the + button). To
deselect an interface, double-click on an interface in the
Selected section (or highlight the interface and click the

–

button).

If you want more interface options, you must configure
additional Ethernet port groups and VLAN interfaces
separately. See the Local Network Interfaces section
below (on this same administration page: Network
Settings

→ Local Networks).
