Compaq 2800 User Manual
Page 85
Removal and Replacement Procedures
Maintenance and Service Guide
5–7
6. Remove the hard drive by following these steps:
a.
Turn the computer bottom side up with the left side
facing forward.
b.
Remove the PM3.0 × 4.0 hard drive retention screw
1
(Figure 5-5).
c.
Slide the hard drive forward
2
to unseat the hard drive
connector from the system board.
d. Remove the hard drive.

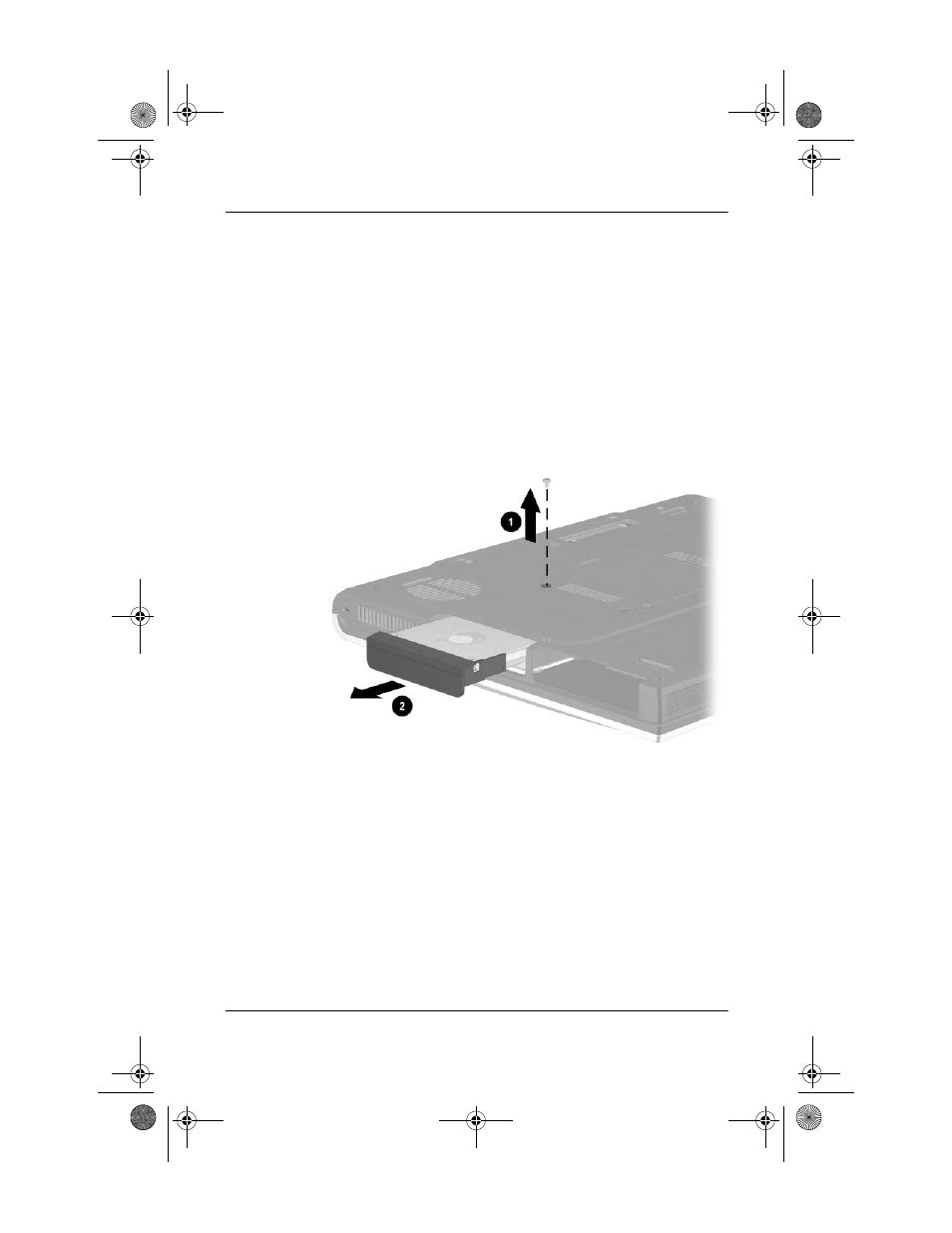

Figure 5-5. Removing the Hard Drive
