Carl Goldberg GBGA1089 User Manual

Page 16

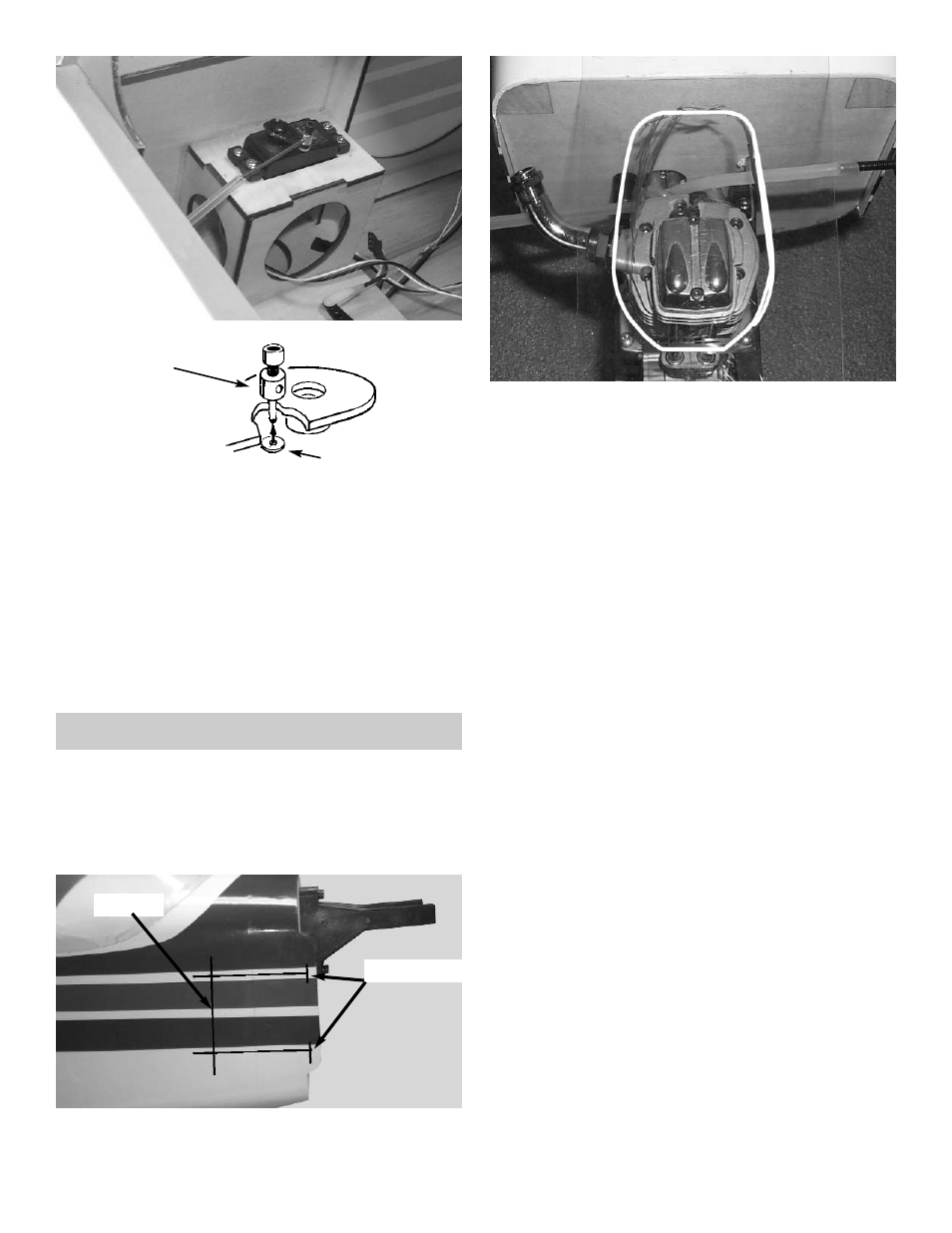

7. Mount throttle servo in the servo tray

Note: Your installation may vary depending

on the engine used.

Install pushrod connector on your servo arm

and attach to the throttle servo

Insert the .pushrod wire through the connec-

tor on the servo arm.

Locate the proper positioning of the throttle

servo arm. Then cut off the excess wire, keep-

ing some wire for future adjustments.

PUSHROD CONNECTOR

SNAP NUT

INSTALLING THE COWL

Collect the following items:

(1) Cowl
(4) 2mm x 5mm Philip head screws
(1) 4” x 12” clear plastic

Make a mark 2” back from the middle front

tabs on the fuselage sides in each of the white

stripes.

2” Back

Center of tab

Place the piece of clear plastic over the top of

the engine. The end of the plastic should

extend just past the cylinder head.

Mark where the engine contacts the plastic.

Remove the plastic and, using the moto tool,

cut out the engine area until the plastic fits

over the top of the motor and lies flat on the

fuse side. Then, tape the edges of the plastic

to one side of the fuselage.

Lift up the untaped side of the plastic and

remove the engine.

5. Slide the cowl under the plastic.
CAUTION! WHEN CUTTING THE COWL, ALWAYS

WEAR PROTECTIVE EYE GEAR AND A LONG-

SLEEVE SHIRT. CHANGE CLOTHES AND WASH

AFTER CUTTING.
6.

Securely tape the cowl to the fuselage,making

sure that the cowl is 5-5/8” away from the fire-

wall. Once taped, measure the cowl again to

make certain its position has not shifted.

Trace the cut out on the clear plastic to the

cowl.
