20

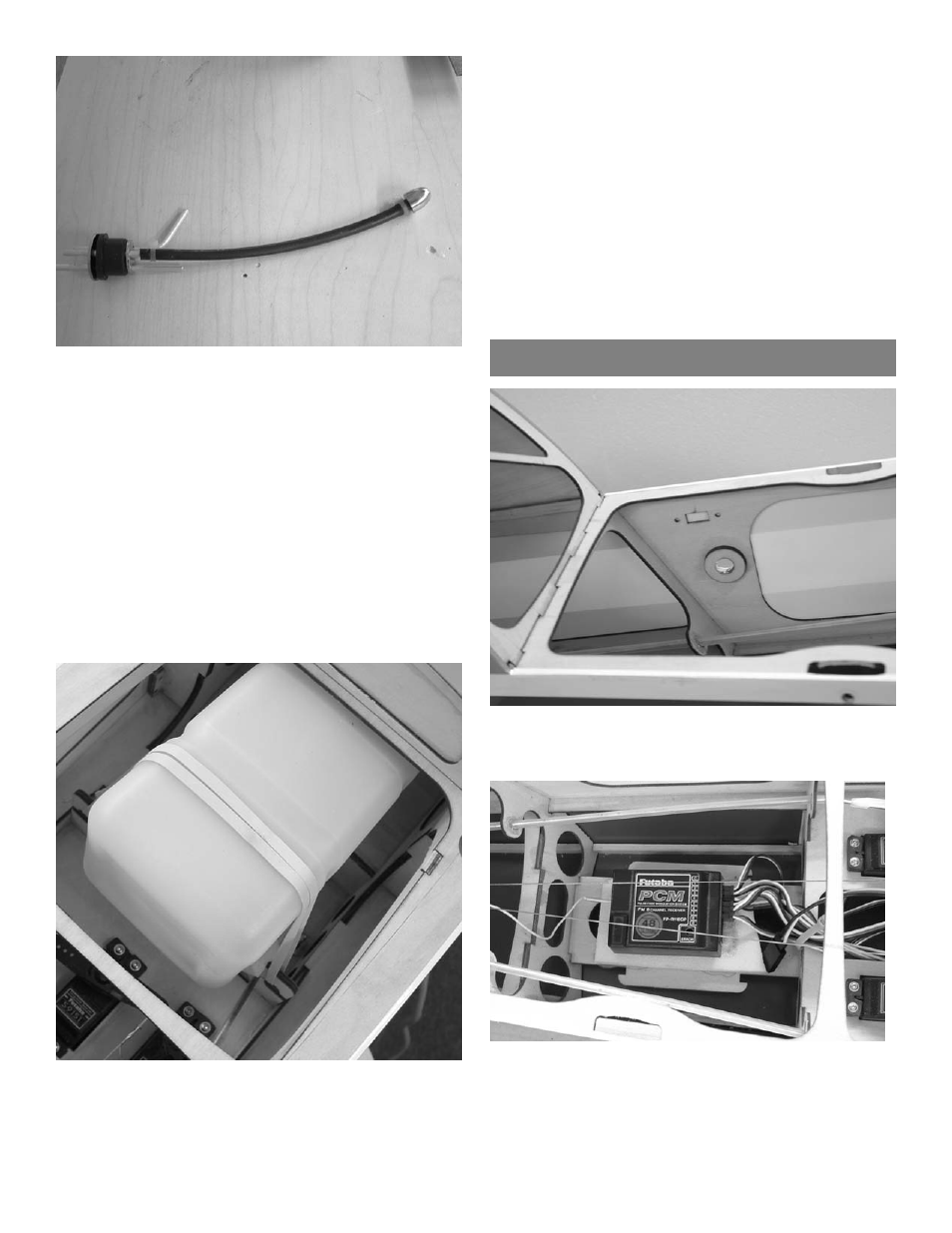

5. Install the tank with the cap through the hole
in the firewall and sitting in the cradle in the
rear.
Put a thin piece of foam under the tank in the
rear cradle and hold tank in place with rubber
bands (not supplied).
Install fuel tubing (not supplied) between the
fuel pickup line and the carb.
Route the fill line and vent tube out the bottom
of the cowl.
The fill line will have to be plugged, the vent
line must be left open.
Receiver and Switch Installation
1. Switch mount positions are provided on both
sides of the fuselage, either can be used.
2. A mount for the receiver is provided just
behind the servo tray and under the rudder
cables.
3. Attach the fuel pickup line to one of the
straight tubes.
Attach the clunk to the other end.
Fit assembly into the tank and adjust the
length of the pickup line so the clunk is about
1/4” off the bottom of the tank when held verti-
cally.
4. When adjusted properly, tighten the screw
Be careful and don’t over tighten as you can split
the tank.
Mark the lines so you can identify the vent, fill
line and pickup line when ready to attach to
engine.
