19

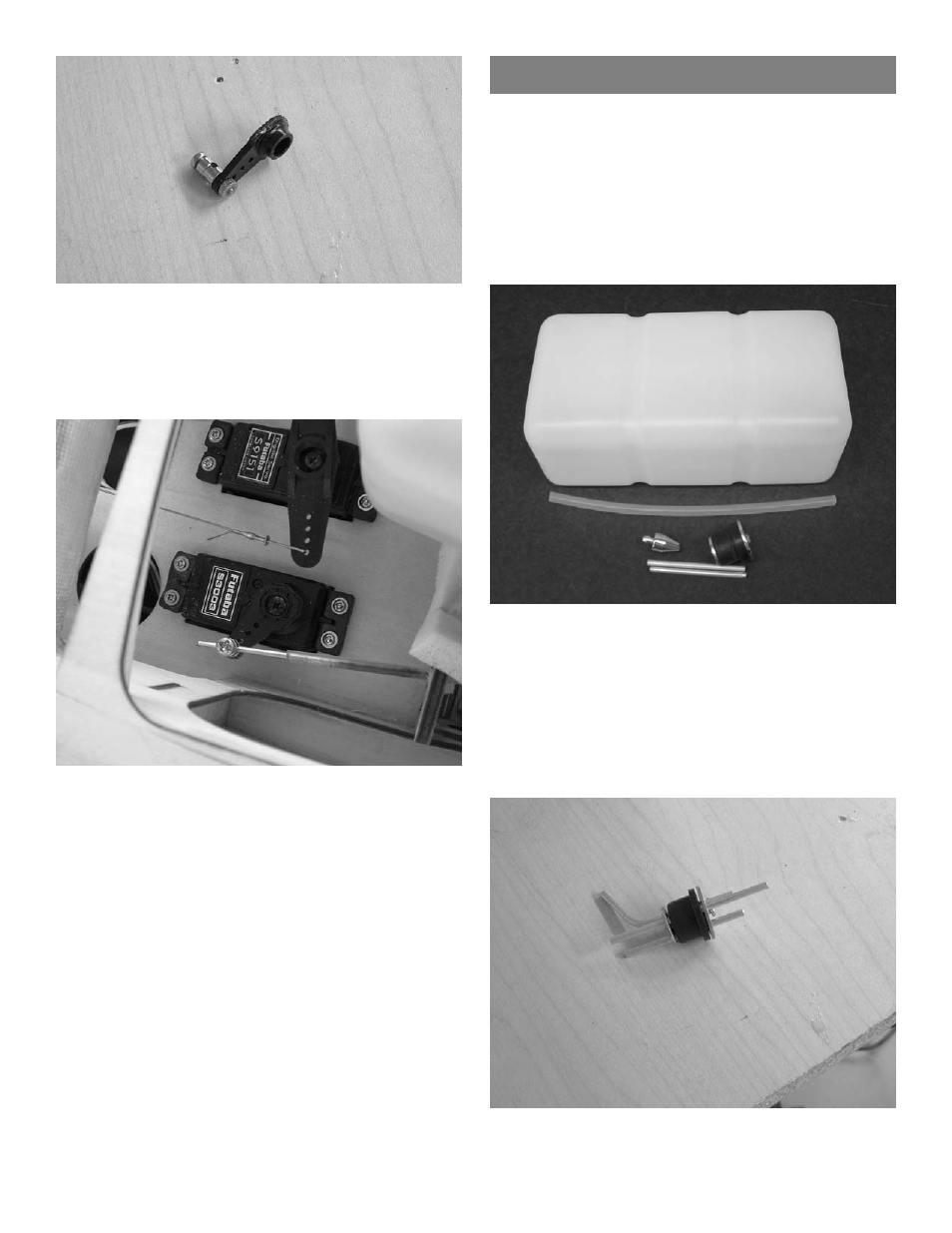

5. Attach the ez-connector to your servo arm.
Put a drop of CA on the nut to make sure it
does not come loose.
6. Insert the pushrod into the ez-connector and
attach servo arm to servo.
Move the throttle servo to full throttle, move
engine throttle arm to full throttle and tighten
the screw on top of ez-connector.
Cut off excess pushrod wire.
Fuel Tank Installation
1. Collect the following items:
(1) fuel tank
(1) cap assembly
(1) clunk
(1) pick up tube
(3) aluminum tubes
2. Insert the three aluminum tubes into the cap
assembly.
There should be two short tubes that extend
out the front and back of the cap about 1/2” to
5/8”. The third line is the vent and should be
bent at an angle so it touches the top of the
tank when installed.
