18

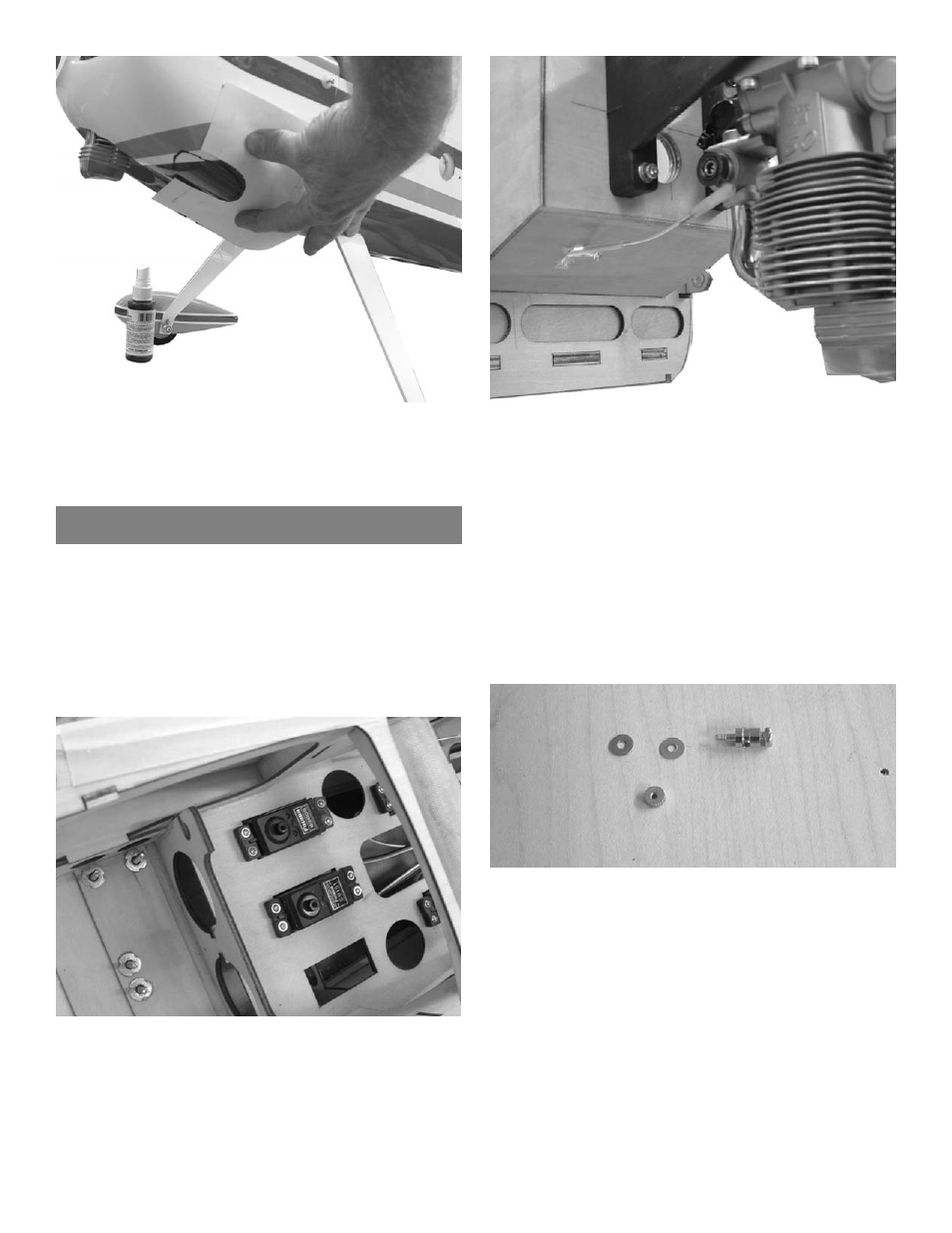

8. Reinstall the cowl and transfer the hole loca-
tion to the cowl.
Throttle Servo Installation
1. Collect the following items:
(1) 2-56 x 18” throttle pushrod
(1) 5/32” nylon tube
(1) nylon snap link
(1) e-z pushrod connector.
2. Mount the throttle servo in either the left or
right position in the servo tray depending on
the engine you use.
Mount the servo so it will be on the same side
of the plane as your throttle arm on the
engine.
3. Drill a hole(1/4”) in the motor box that will give
you the most direct access to the servo.
This will vary depending on the engine used
Make sure it will clear the tank inside.
Thread the nylon snap link on the pushrod,
insert the pushrod in the nylon tube and fit into
the hole you just drilled.
4. Locate the ez-connector and remove the nut.
