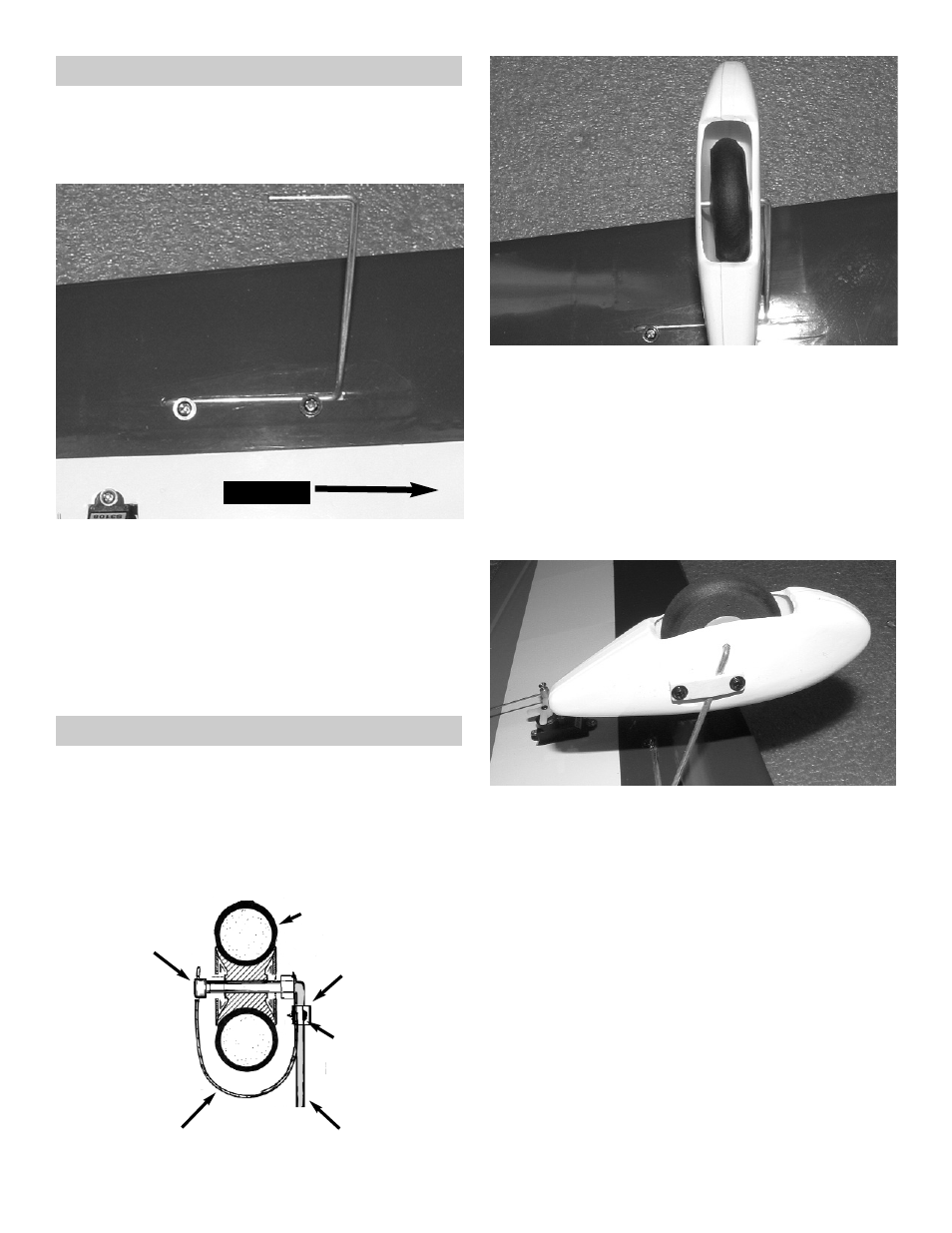

Landing Gear

1.

Collect the following parts:

(1) wing

(2) Main Landing Gear Wire

(4) 2mm x 6 Sheet Metal Screw

2.

Remove any covering over the landing gear

slot.

Insert the short end of the main landing gear

wire into the hole.

Locate the two holes next to the landing gear

slot.

Screw the landing gear into place using two

2mm x 6 Sheet Metal Screws.

Fuselage

Wheel Pants

1.

Collect the following parts:

(1) wing

(2) Wheel Pants

(2) Wheel Collars with set screws

(4) 2mm x 3mm Sheet Metal Screw

(2) Landing gear strap

(2) Wheels

Landing gear Wire

Wheel Pant

Wheel

Wheel Collar

Landing Gear Strap

2mm x 3mm Sheet Metal Screw

2.

Place the wire though the back side of the

wheel pants.

Insert the wheel into the wheel pant.

Push the landing gear wire through the wheel

and out the other side of the wheel pant.

Insert the wheel collar on the end of the land-

ing gear wire.

While slightly squeezing the wheel pant tight-

en the wheel collar onto the landing gear wire.

3.

Place the landing gear strap onto the landing

gear wire so that the slot in the strap fits over

the wire.

Screw the strap to the wheel pant using the

2mm x 3 sheet metal screws.

Repeat steps 2 & 3 for the other wheel pant.
