Vehicle Care 10-51
Mini Fuses Usage
66 Trailer Left Stoplamp
67 Spare
68 Spare
69 Spare
70 Spare
71 Spare
72 Spare
Mini Relays Usage
7 Powertrain
9 Cooling Fan 2 (LF1)
13 Cooling Fan 1 (LF1)
15 Run/Crank
16
Secondary
AIR Pump
Micro
Relays
Usage
2 Vacuum Pump
4 Wiper Control
5 Wiper Speed
10 Starter
12 Cool Fan 3 (LF1)
14 Low Beam/HID
U Micro
Relays
Usage
8 Headlamp Washer

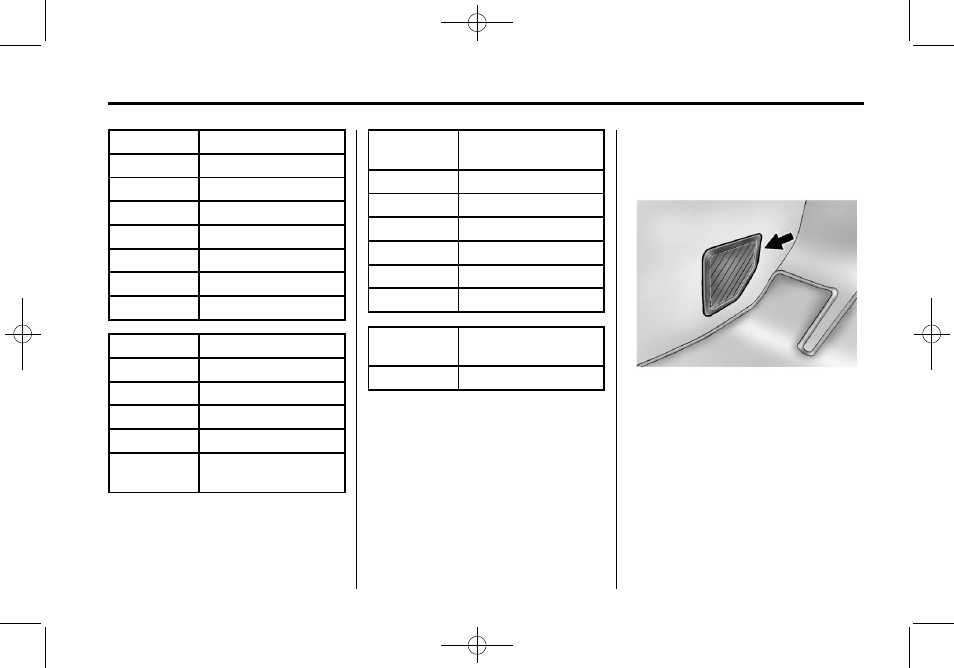

Instrument Panel Fuse
Block
The instrument panel fuse block
is located in the center console
between the driver and passenger
seats. To access the fuses, open
the fuse panel door from the
passenger side by pulling it out.
To reinstall the door, push the door
back into its original location.
The vehicle may not be equipped
with all of the fuses, relays and
features shown.
