Black plate (7,1) Cadillac SRX Owner Manual - 2011
Storage 4-7

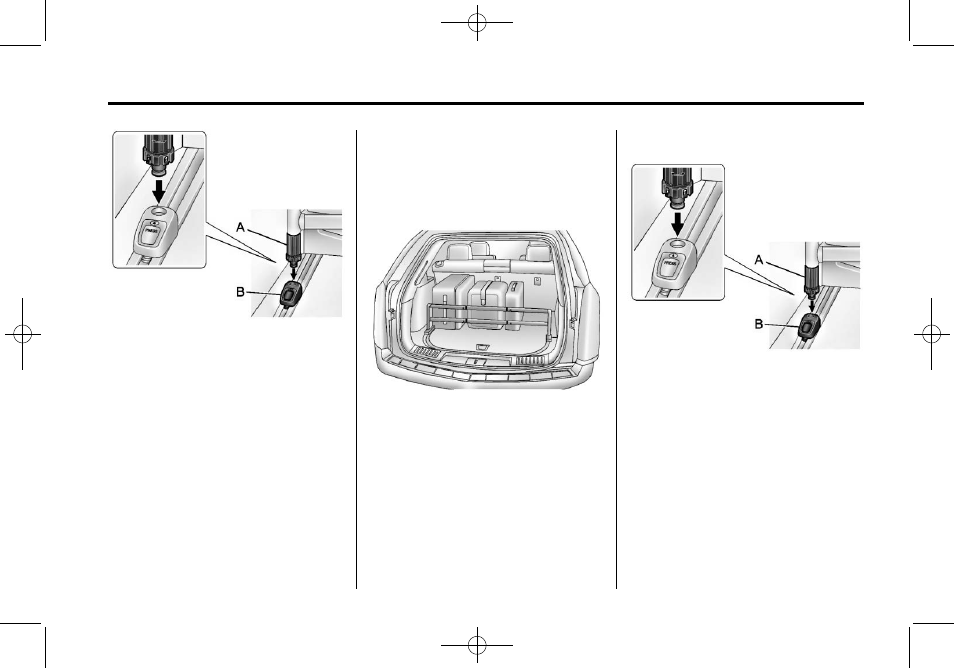

Push both adapter buttons to move
the adapters (B) on the straight part
of the u-rail.
To move the fence around the u-rail,
disconnect one side:
1. Unlock by turning the latch (A)
to align
K
with the arrow on the
adapter (B).
2. Push the adapter button to move
the adapters (B) to the desired
position.
3. Reinstall the fence and lock
both latches (A) by turning to
align
Q with the arrow on the
adapter (B).
Use the fence to secure items in
place.
Removing the Fence
Unlock by turning both latches (A)
to align
K with the arrow on the
adapter (B). Lift and remove the
fence.
Installing the Fence
Insert the fence into the adapters
and lock both latches (A) by turning
to align
Q with the arrow on the
adapter (B).
