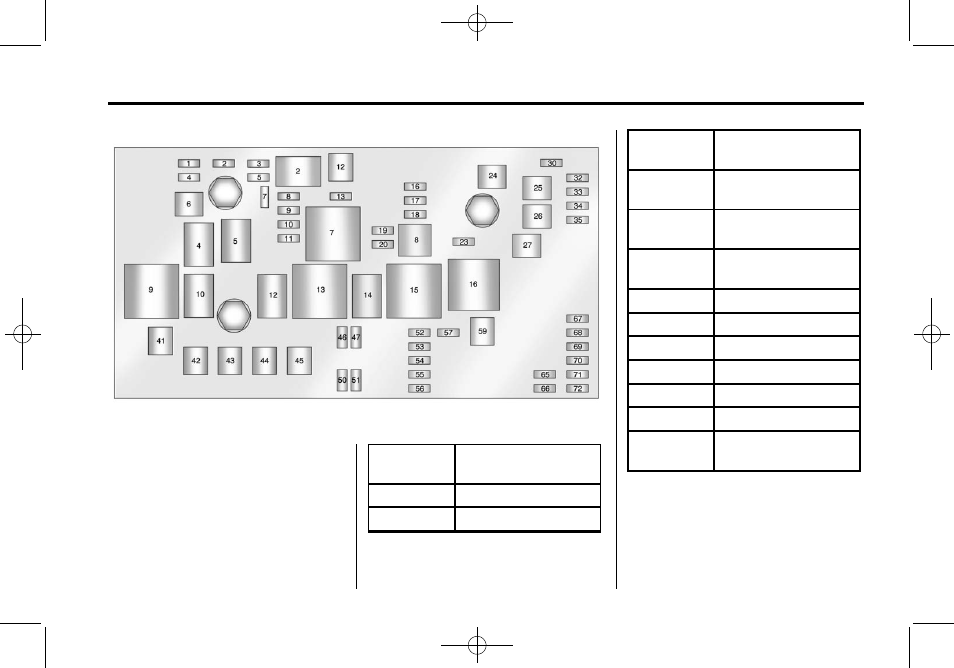

Engine Compartment Fuse Block
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
J-Case
Fuses
Usage
6
Wiper
12
Vacuum Pump
J-Case
Fuses
Usage
24
Antilock Brake
System Pump
25
Rear Electrical
Center 1
26
Rear Electrical
Center 2
27
Not Used
41
Cooling Fan 2 (LF1)
42
Starter
43
Not Used
44
Not Used
45
Cooling Fan 1 (LF1)
59
Secondary
AIR Pump
