Crestron Isys™ TPS-TPI Touchpanel Interface
SIMPL Windows, Crestron recommends a SIMPL Windows and operating system
upgrade. The latest version can be obtained from the Downloads page (SIMPLWIN
Library) of the Crestron website (
www.crestron.com) . New users are required to
register in order to obtain access to the FTP site.
Use the Configuration Manager workspace (Project | Configure System) in SIMPL
Windows to select and configure all the devices that need to be included into the
system. For this example, add a CNXRY-16 to slot #1 of the CNMSX-PRO. Also
add a TPS-TPI to the system; its NET ID must be set to 03, shown after this
paragraph.

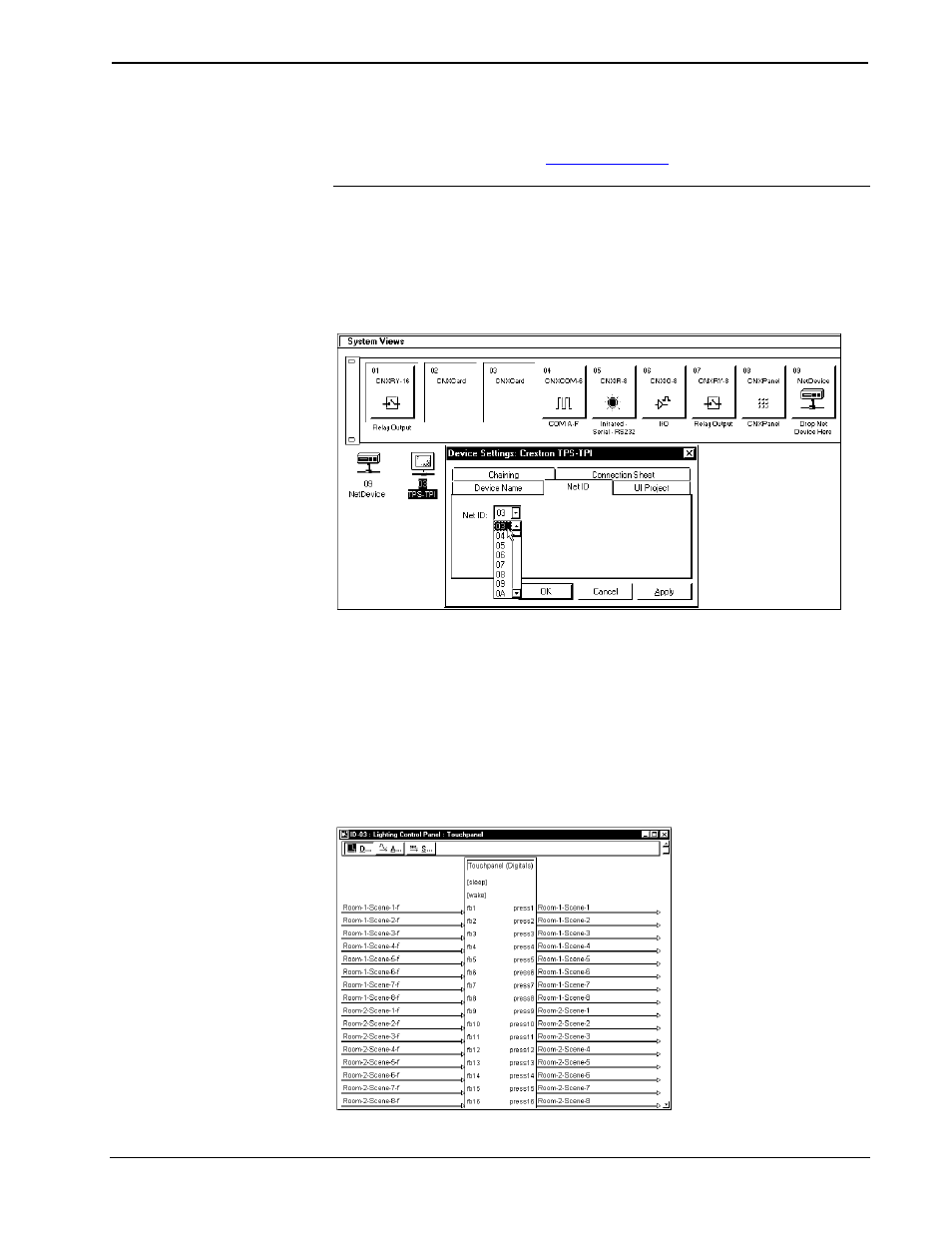

System View of the CNXRY-16 and TPS-TPI in SIMPL Windows’ Configuration Manager
Programming Manager
Use the Programming Manager workspace (Project | Program System) in SIMPL
Windows to select symbols and assign their respective signals. For this example, a
TPS-TPI and CNXRY-16 symbols were added automatically when the devices were
added to the system in the Configuration Manager workspace. Expand the Network
Modules folder and double click on the touchpanel for a detail view (alternatively
CTRL+D or drag and drop into Detail View). Assign signals as shown after this
paragraph.
Detail View of the TPS-TPI in SIMPL Windows’ Programming Manager
Operations Guide - DOC. 5855 Touchpanel Interface: Crestron Isys™ TPS-TPI • 19
