Be sure that the front panel is
located on the side that contains
the tall shelter posts. This will
ensure enough clearance for
you and the animal.
Step 3
3a. At this point, the structure can now be set in place. Two people are needed for this
process for safety purposes. Place four-2” butterfly connector halves (7f) at each corner
of the pen. Fasten the butterflies with one-3/8” x 1” carriage bolt (7e) and one-3/8”
flanged whiz nut (7g). Make sure the bolt head is on the inside of the pen for a smooth
edge near the animal. Do not fully tighten the butterflies. This will allow for adjustment of
the pen. When attaching the butterflies, place one directly below the shelter post and one
near the bottom of the panel.

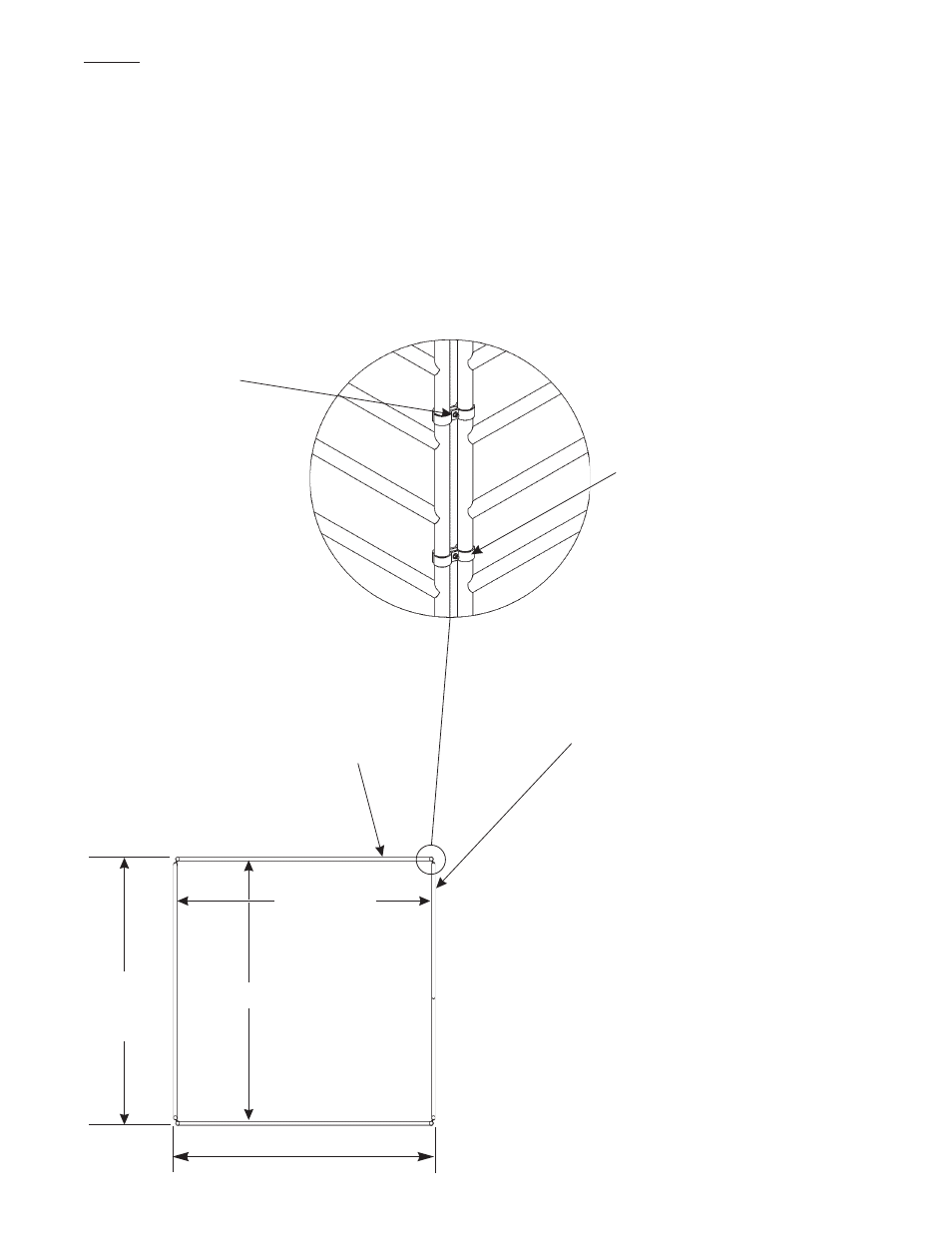

3b. Measure the pen to match the measurements provided in the illustration. After
measuring and moving panels as necessary, tighten the butterflies in place.
7f
(16 req’d. for a
12’ x 12’ pen)
7g & 7e
(16 req’d. for a
12’ x 12’ pen)
The sides are the panels that have
the shelter posts, end cee and
side channel clips attached to it.
11' 11-9/16"
11' 10"
12' 2"
Outside
Dim.
12' 3-9/16"
Outside Dim.
