4-6 Chapter 4: Appendix B - Connector Pinouts
Intellicon-NT960/PCI User's Manual, ver. 0.02
ACM/Flex16 Pinouts
The ACM/Flex16 provides male DB-9 connectors for each port.
For the DB-9 pinout information please refer to Table 4.

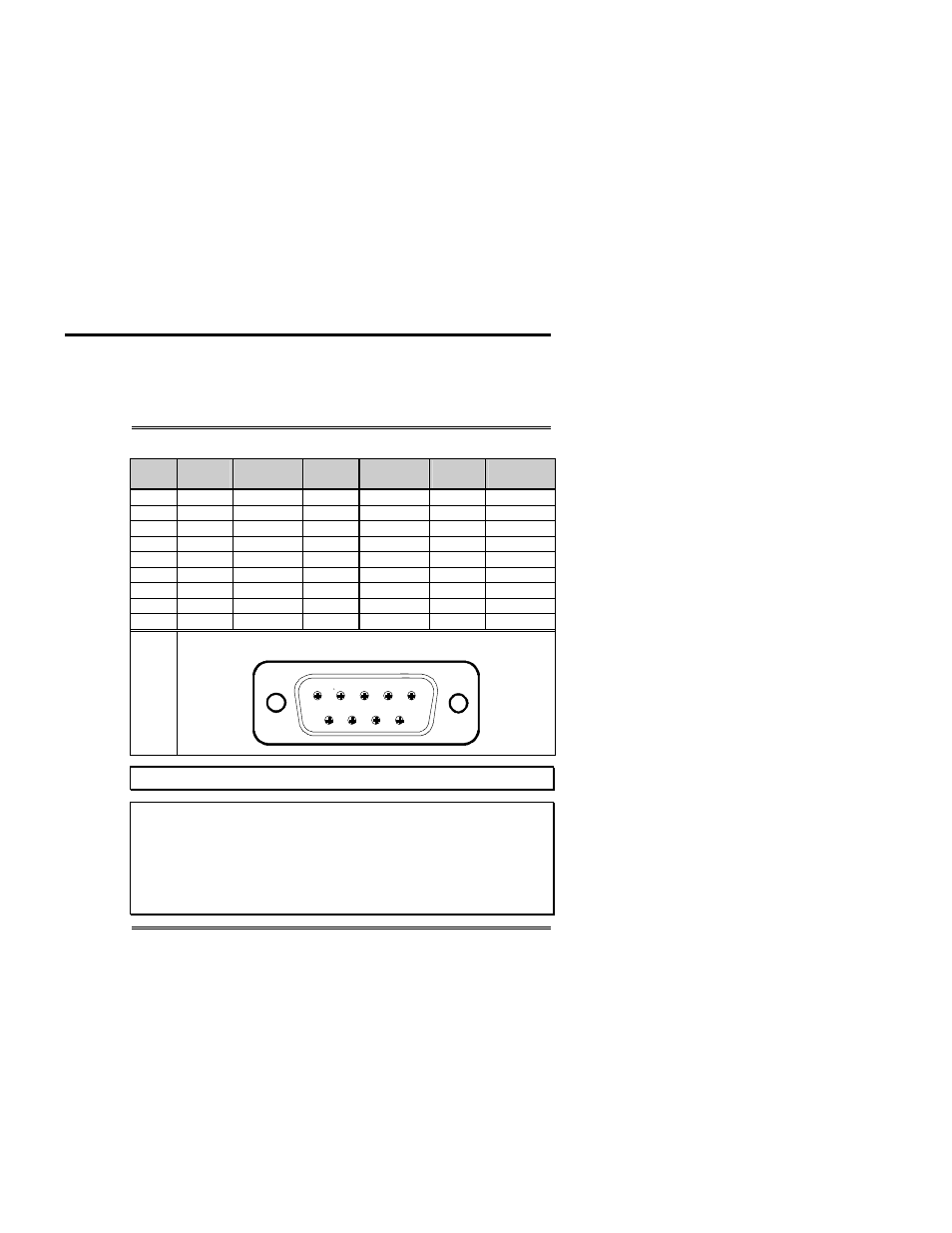

Table 4: DB-9 pinouts - ACM/Flex16
Pin No. RS-232
Signal
Direction RS-485
Signal
Direction 20mA
Signal
Direction
1 DCD input RxD + input RxD - input
2 RxD input TxD + output TxD + output
3 TxD output TxD - output unused
4 DTR output RxD - input unused
5 SG signal gnd. SG signal gnd. unused
6 DSR input CTS - input unused
7 RTS output RTS - output TxD - output
8 CTS input RTS + output RxD + input
9 RI input CTS + input unused
Male DB-9 Connector
1 5
6 9
Note: ports 3, 4, 7, 8, 11, 12, and 15 do not support the RI signal.
Technical Tip:
Please ensure that you terminate the DCD or CTS signals if your
application does not use them. The common way to do this is to
connect DCD to DTR and/or to connect CTS to RTS. Failure to
do so may result in a loss of a performance on your Intellicon-
NT960/PCI subsystem.
ACM/Flex16 SLIM Pinouts
You may order the ACM/Flex16 external module with RS-232,
RS-485/422 and/or 20mA Current Loop Serial Line Interface
Modules (SLIM). Please refer to Table 5 for the pinouts for the
SLIM sockets found on the ACM/Flex16 module.
