The Intellicon-NT960/PCI subsystem can accommodate both
small and large multi-channel applications. The NT960/PCI Host
Adapter can connect up to eight ACM/16, ACM/16RJ and/or
ACM/Flex16 modules for a total of 128 ports. Figure 5 below
represents a sample configuration for a system requiring 32 ports.

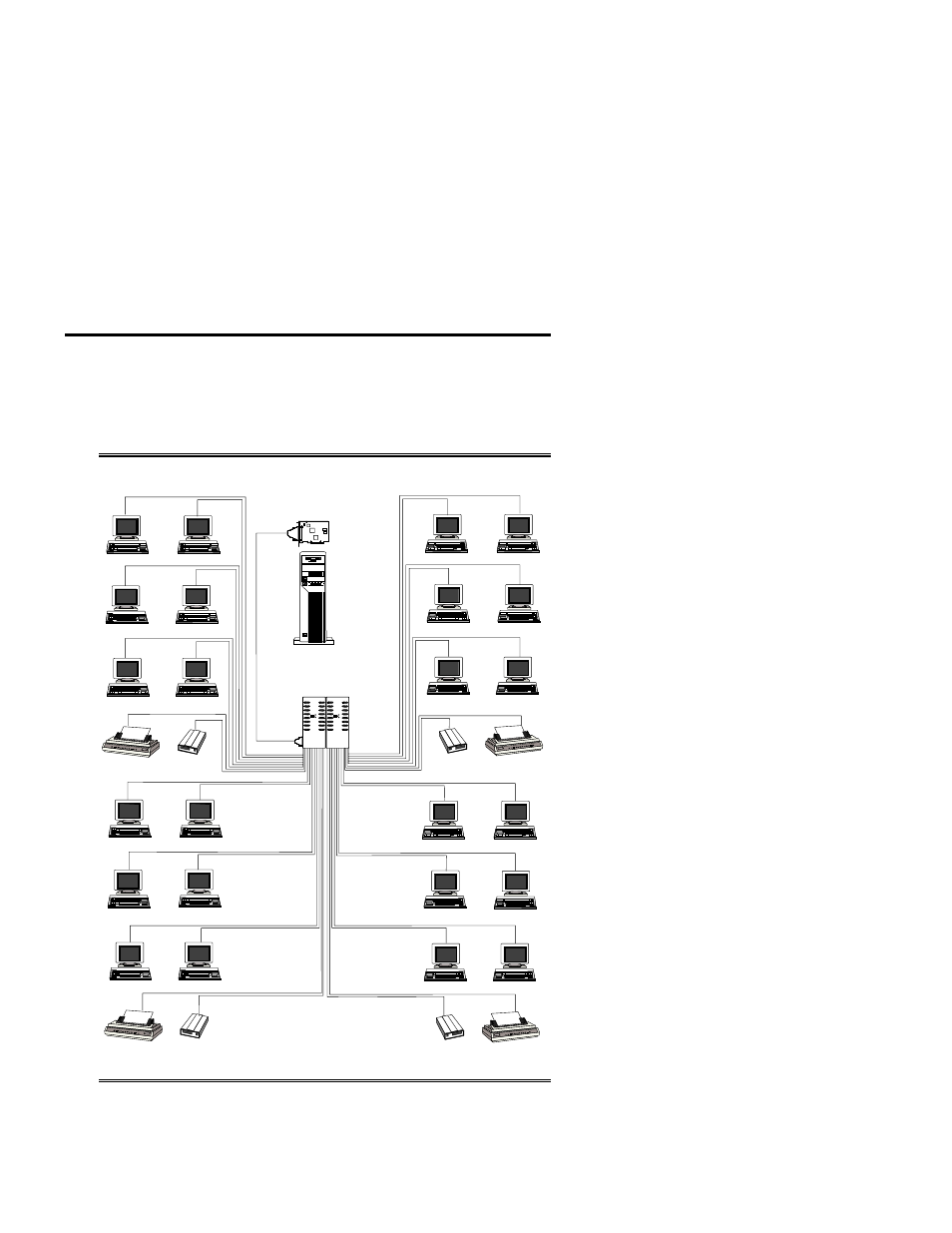

Figure 5: Intellicon-NT960/PCI - 32 port configuration
Host Computer
ACM/16, ACM16RJ
or ACM/Flex16 I/O Modules
NT960/PCI
Host Adapter
Terminals
Printer Modem
Terminals
Terminals
Terminals
Printer Modem
Terminals
Terminals
Terminals
Printer Modem
Terminals
Terminals
Terminals
Printer Modem
Terminals
Terminals
P P
