Current loop cable wiring, Figure 22: current loop wiring diagram(4 wire), Current loop cable wiring -25 – Connect Tech NT960/PCI User Manual

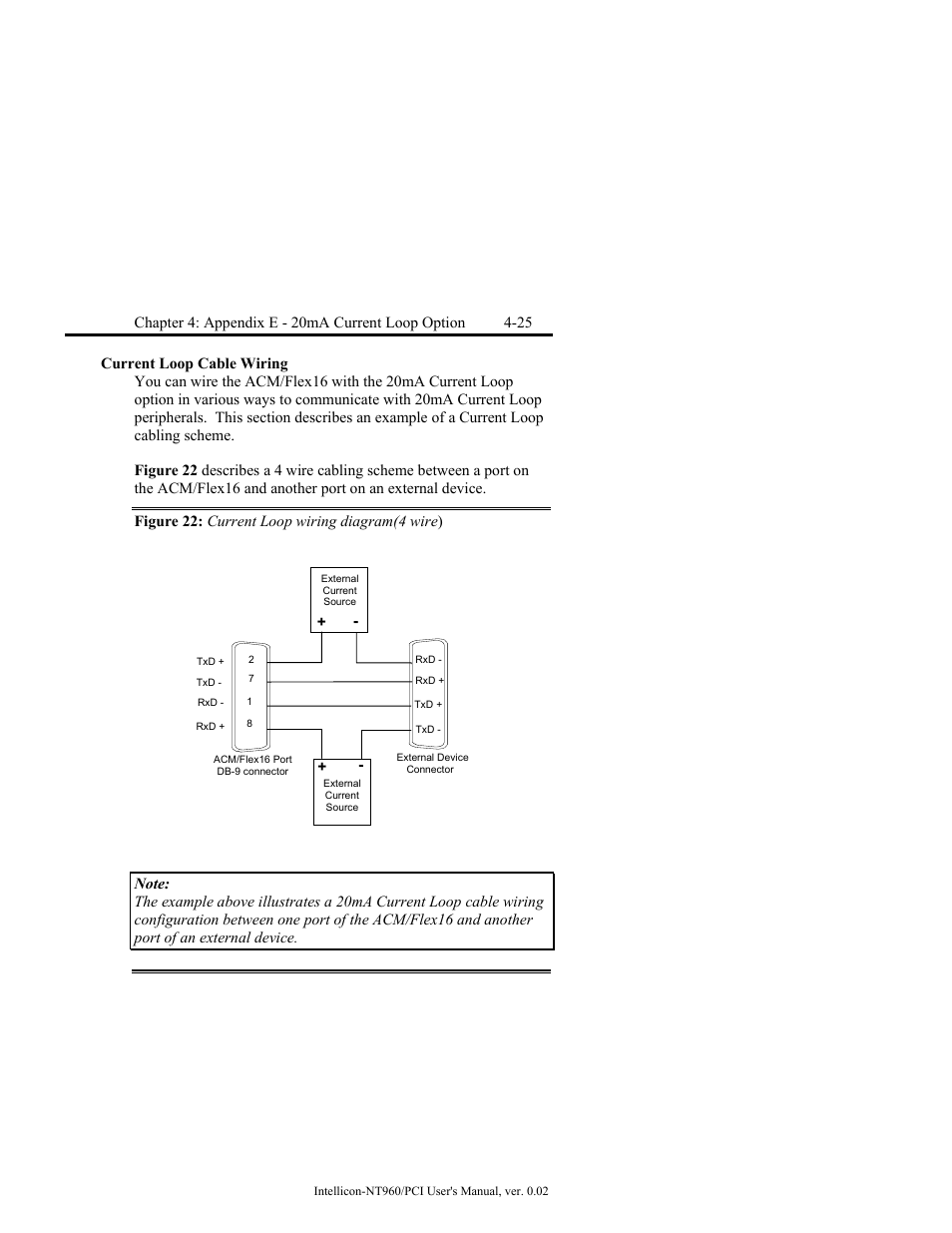

Page 77: Figure 22: current loop wiring diagram(4 wire) -25
