Pattern chart – Avlink PG-MT1 User Manual
Page 4
39 1600x1200
60
162
P
P
40 1680x1050
60
146.25 N
P
41 1920x1080 60
RB
138.5
P
N
42 1920x1200 60
RB
154
P
N
43 1440x480i
59
27
N N
44 1440x576i
50
27
N N
45 720x480
59
27
N N
46 720x576
50
27
N N
47 1280x720
50
74.25 P P
48 1280x720
60
74.25 P P
49 1920x1080i
50
74.25
P
P
50 1920x1080i
60
74.25
P
P
51 1920x1080p
24
74.25
P
P
52 1920x1080p
25
74.25
P
P
53 1920x1080p
30
74.25
P
P
54 1920x1080p
50
148.5
P
P
55 1920x1080p
60
148.5
P
P
RB: Reduced Blanking
P: Positive
N: Negative
-9-

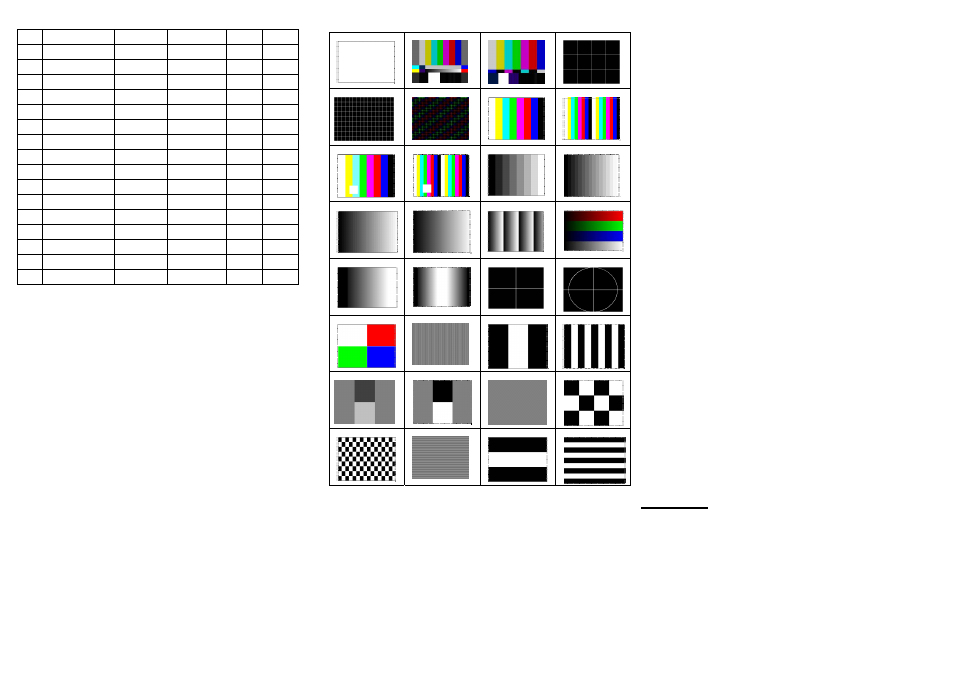

**Pattern chart:
1. FLAT
2. SMPTE RP219
3. SMPTE EG-1
4. GRID_4x3
5. GRID_16x12
6. COLOR_GRID
7. COLORBAR_1
8. COLORBAR_2
9. COLORBAR_3
10. COLORBAR_4
11. GRAY_8
12. GRAY_16
13. GRAY_32
14. GRAY_64
15. GRAY_1
16. COLORGRAY64
17. BWSWING
18. BW2SWING
19. WINDOW_1
20. WINDOW_2
21. WINDOW_3
22. VLINE_1
23. VLINE_2
24. VLINE_3
25. H Pattern_1
26. H Pattern_2
27. BLOCK_1
28. BLOCK_4x3
29. BLOCK_16x12
30. HLINE_1
31. HLINE_2
32. HLINE_3
-10-
