“▲”: Switch the Resolution and Refresh Rate values
with up page. (refer to Appendix A: PG-H1 output signal
specification chart)
„
“▼”: Switch the Resolution and Refresh Rate values
with down page. (refer to Appendix A: PG-H1 output
signal specification chart)
„
“ ▲ ”,” ▼ ”: Switch between Resolution and Refresh
Rate
options.
„

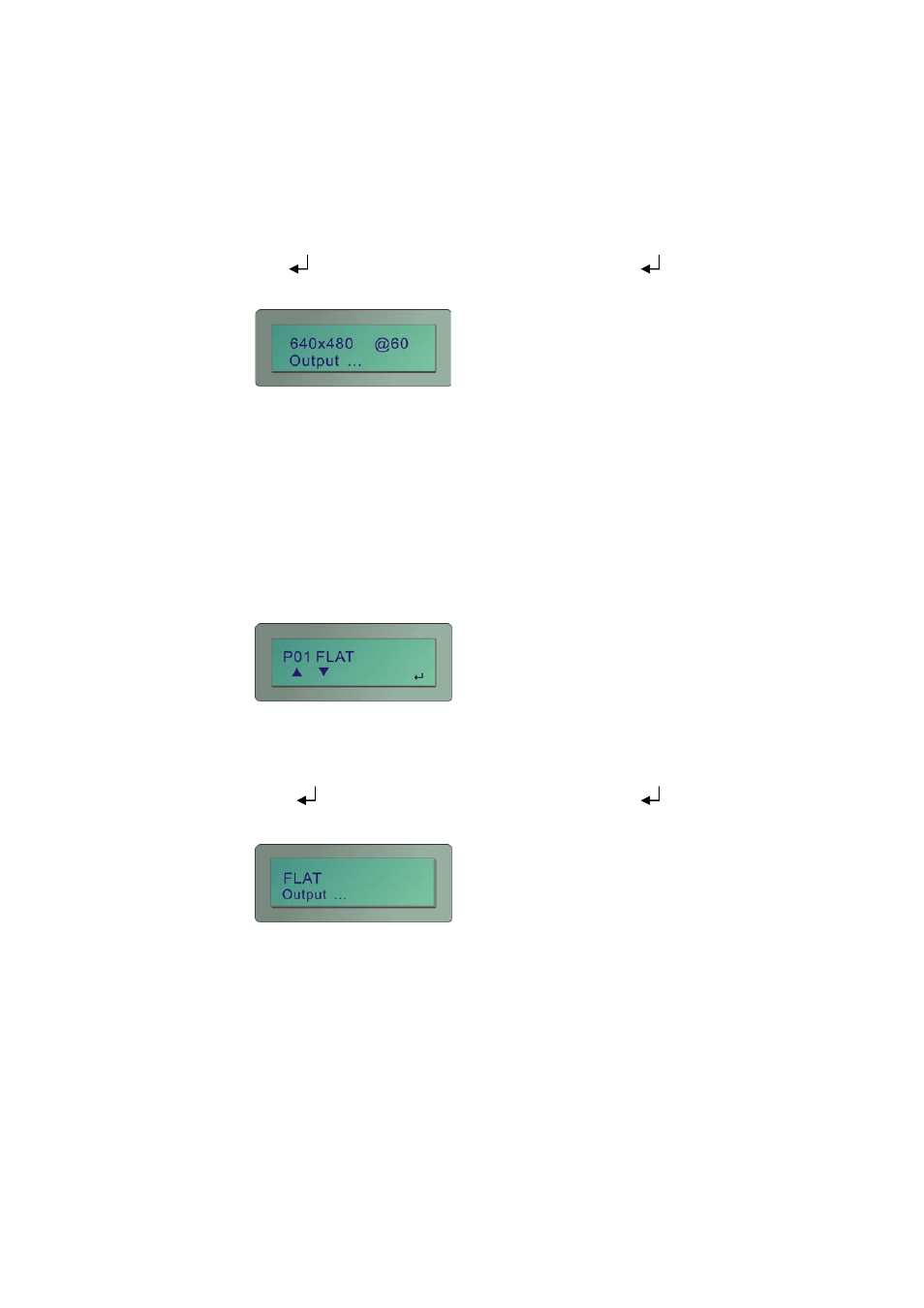

“ ”: Confirm the changed value. (After press the “ ”
indicated key the screen will be showed as below: )
)
Under the H12 mode will not show the timing values as
below:
1280x1024@85
1400x1050@75
1600x1200@60
1920x1200@60RB
3.3.2 Ptn configuration
Press the Ptn indicated key, the Ptn configuration screen
will be showed as below:
„
“▲”: Switch the Pattern mode with up page. (refer to
Appendix B: Pattern chart)
„
“▼”: Switch the Pattern mode with down page. (refer to
Appendix B: Pattern chart)
„
“ ”: Confirm the changed value. (After press the “ ”
indicated key the screen will be showed as below: )
