Avlink HDMI-EN User Manual
Page 3

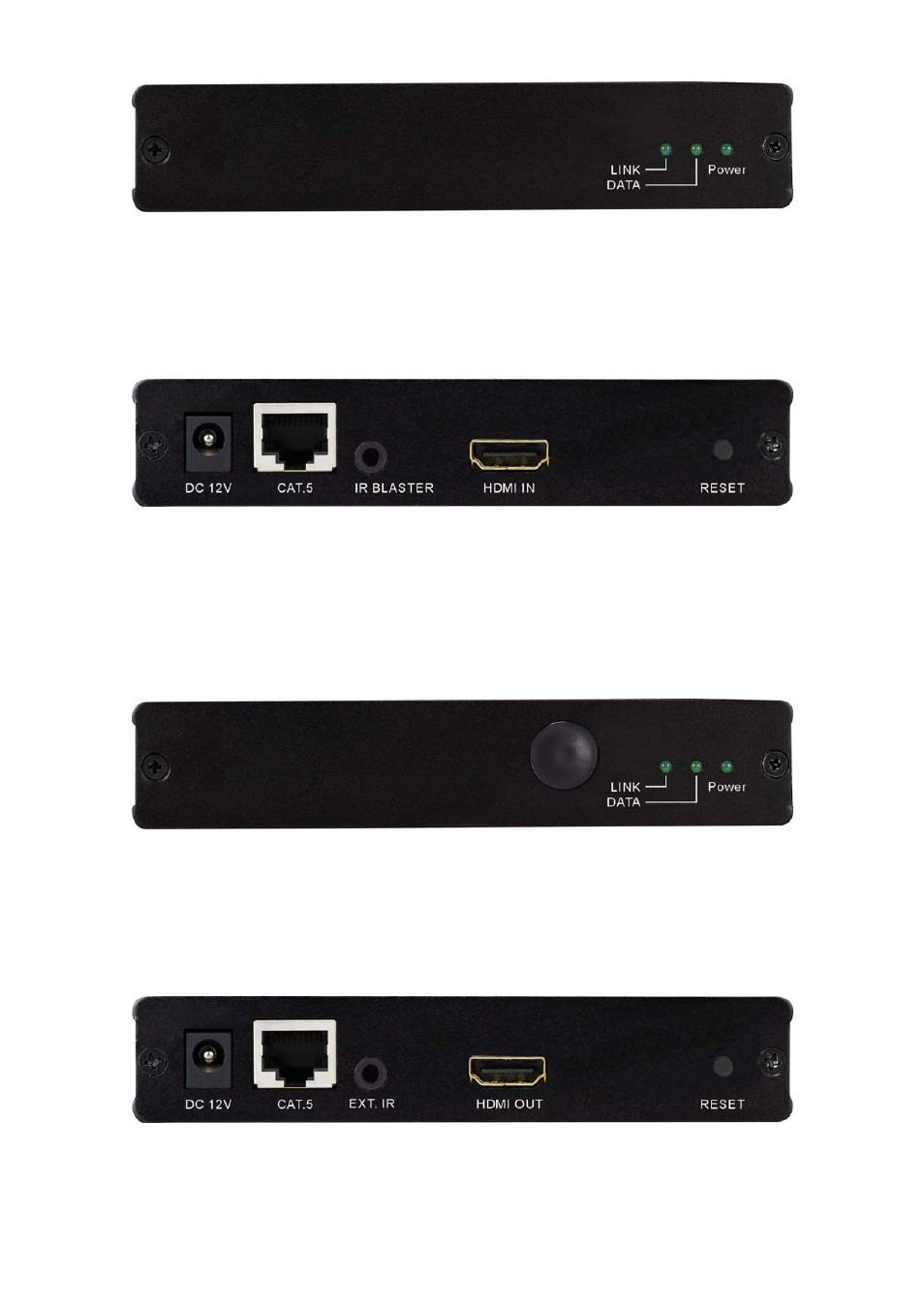

LOCAL FRONT VIEW
1. Link LED
2. Data LED
3. Power LED
LOCAL REAR VIEW
1. Power jack
2.
CAT.5 (RJ-45 Connector)
3. IR BLASTER
4. HDMI In
5. Reset Button
REMOTE FRONT VIEW
1. IR Receiver
2. Link LED
3. Data LED
4. Power LED
REMOTE REAR VIEW
1. Power jack
2.
CAT.5 (RJ-45 Connector)
3. EXT. IR
4. HDMI Out
5. Reset Button
