SK-ACP Installation & Operating Manual
A-2
¿
TELCO LINE
SK-MDM
MODEM MODEM
A virtually unlimited number of remote locations
can be set-up on one PC with SK-Net-MLD Software.
See Appendix “C” setup instructions
NET-CONV-P
¿
¿
SK-ACP
SK-ACP SK-ACP
SK-ACP
SK-ACP
SK-ACP
¿
1
2 1
¿
¿
Up to 100
SK-ACP’s
Up to 100
SK-ACP’s

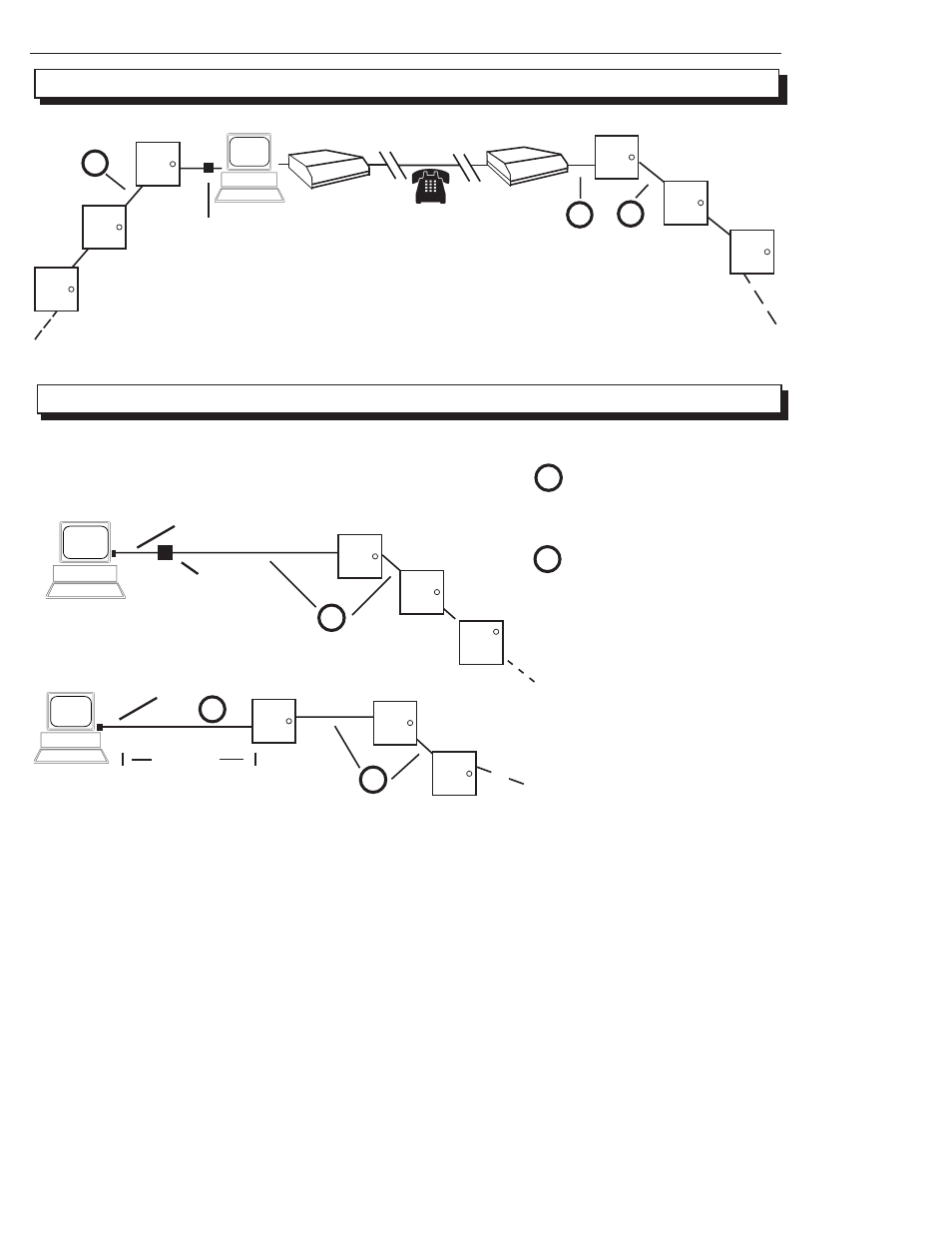

MULTI LOCATION SYSTEM WITH SK-NET-MLD SOFTWARE
SK-NET TM
SOFTWARE
B. Gateway Configuration without Converter
There are two ways to connect a PC to the panel network:
Option A is recommended for large systems or systems with high traffic volume.
NETWORK CABLE:
RS-485 -Two Twisted Pair, 18-24 AWG.
Total system cable length: 4,000 ft.
Suggested Cable: Belden 1585A.
SERIAL CABLE:
RS-232 - PC or printer to 28SA Plus,
6-Conductor, Shielded, 18-24 AWG.
300 ft. (9600 baud); 100 ft.
(38.4 baud). Suggested Cable:
Belden 6304FE.
1
Additional
SK-ACP’s
100 ft. Max. ¿ ¿
¿
2
SK-ACP
SK-ACP
SK-ACP
1
¿
2
¿
RS-232
COM PORT
¿
OPTIONS FOR CONNECTION OF THE SK-ACP NETWORK TO A PC
SK-NET TM
SOFTWARE
A. Standard Configuration with Converter
¿
NET-CONV-P
¿
RS-232
COM PORT
¿
¿
1
SK-ACP
SK-ACP
SK-ACP
Additional
SK-ACP’s
¿
SK-NET TM
SOFTWARE
