SK-ACP Installation & Operating Manual

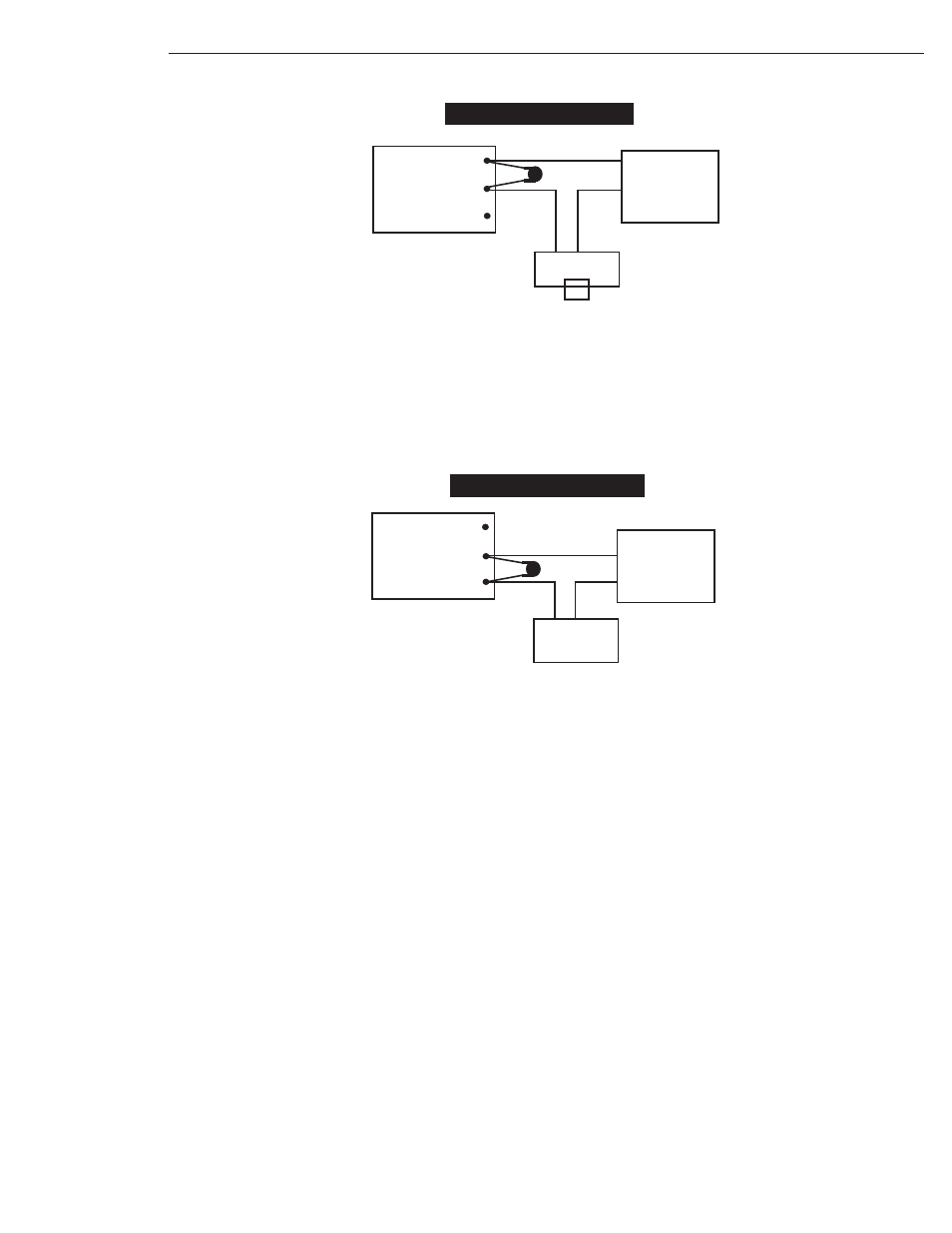

Install the enclosed 40-volt MOV (Metal Oxide Varistor) across the relay contacts in the access control unit, as
shown. The Access Control Unit must have its own power supply.
FIGURE 6
STRIKE
ACCESS
CONTROL
UNIT
LOCK
POWER
SUPPLY
AC or DC
+
_
N.O.
COM
N.C.
INSTALL
MOV HERE
µ
Installation of Metal Oxide Varistor
with Electric Strike
9
Install the enclosed 40-volt MOV (Metal Oxide Varistor) across the relay contacts in the access control unit, as
shown. The Access Control Unit must have its own power supply.
FIGURE 7
MAG
LOCK
ACCESS
CONTROL
UNIT
LOCK
POWER
SUPPLY
DC
+
_
N.O.
COM
N.C.
INSTALL
MOV HERE
µ
Installation of Metal Oxide Varistor
with Magnetic Lock
