Vermont Casting DVR28IN - Manual (Page 30)

30 20012301
Vermont Castings DVR28 Direct Vent Gas Fireplace
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.
DVR28IN
(GFYN4G0)
5
4
12
7
6
3
2
8
9
10
11
1
13
12301

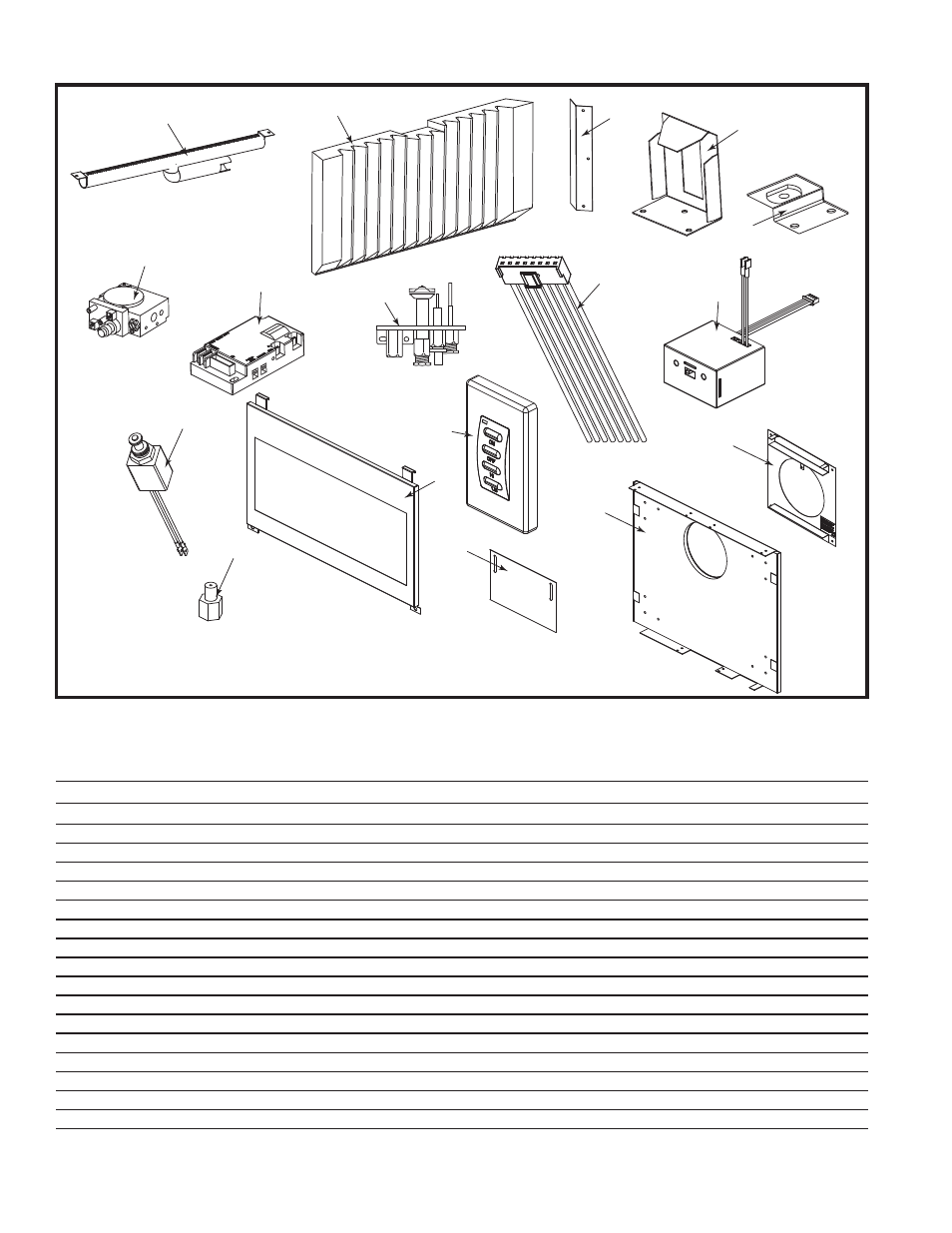

DVR28 parts
3/07
14
15
17
16
Ref. Description DVR28
1. Burner Tube 20012266
2. Rear Refractory 20011551
3. Ceramic Retainer 20012350
4. Bracket, Upper Trim 20011581
5. Lower Bracket Assembly 20011579
6. Valve Assy, VF4000 20012290
7. Main Module 20011895
8. SIT Pilot Assembly 20012381
9. 24” Wire Harness 8-Pin, 8-Wire 20012258
10. Battery Power Pack 20012263
11. Solenoid Remote Hi/Lo 20012265
12. Glass Frame Assembly 20011597
13. On/Off HI/LO Remote Control 20012267
14. Restrictor Plate 20012396
15. Wall Mount Assy. 20012219
16. Burner Orifice #45 (.0820”) 20012302
17. Firestop 20012362
