Things You Should Know
•
Under certain conditions (cold weather, high humidity, etc.)
condensation will form on the inside surfaces of your tent. Condensation is
caused by water vapor from your breath, perspiration, or any wet clothing
inside your tent. It is NOT LEAKAGE through the tent fabric. It can be mini-
mized by removing wet clothing from your tent and by providing good ventila-
tion through the tent.
•
Never store tent, even for a short period of time, without drying it thorough-
ly and brushing off caked dirt. Do not pack stakes or poles inside your tent.
Use a separate storage bag.
•
STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO
REMOVE STAKE.
•
TENT POLES SHOULD NOT BE LEFT TELESCOPED
TOGETHER DURING STORAGE.
•
Seam sealer has not been provided with your tent. We recommend seam
sealing your tent prior to camping. Seam sealer may be purchased through
your local retailer or at your local sporting goods store.
•
Do not leave your tent set-up for weeks at a time, be aware that
exposure to the ultraviolet rays of the sun can seriously damage material
and/or cause it to become discolored.
•
See owners manual for more tips.
WARNING: KEEP ALL FLAME AND HEAT SOURCES
AWAY FROM THIS TENT FABRIC. This tent meets the flammability
requirements of CPAI-84.The fabric will burn if left in continuous contact with
any flame source.The application of any foreign substance to the tent fabric
may render the flame-resistant properties ineffective.
Attach Tent to Frame
Using Frame Clips
–Attach frame clips along
the edges of tent to frame poles.
(illus. 5), (illus. 6)
–Make any adjustments to the tent
corner stakes that are needed.
3
4
Attach Rainfly
–Assemble rainfly pole by
interlocking shock-corded pole.
–Insert rainfly pole into reinforced
pockets located at the center edges
of the underside of rainfly.
(illus. 7), (illus. 8)
–Attach underside of rainfly to the
rainfly pole. (illus. 8)
–Drape rainfly over tent frame, pole
side down. Rainfly pole should
point out over door and rear window.
–Connect the four elastic loops with
“S” hooks, (found at the rainfly
corners) to the four rings
located at the end of the stake
loops at the corners of the tent.
–Secure rainfly with attachments
located on underside of fly. (illus. 9)
–Stake out the tent with (2) side
guylines. (illus. 9)

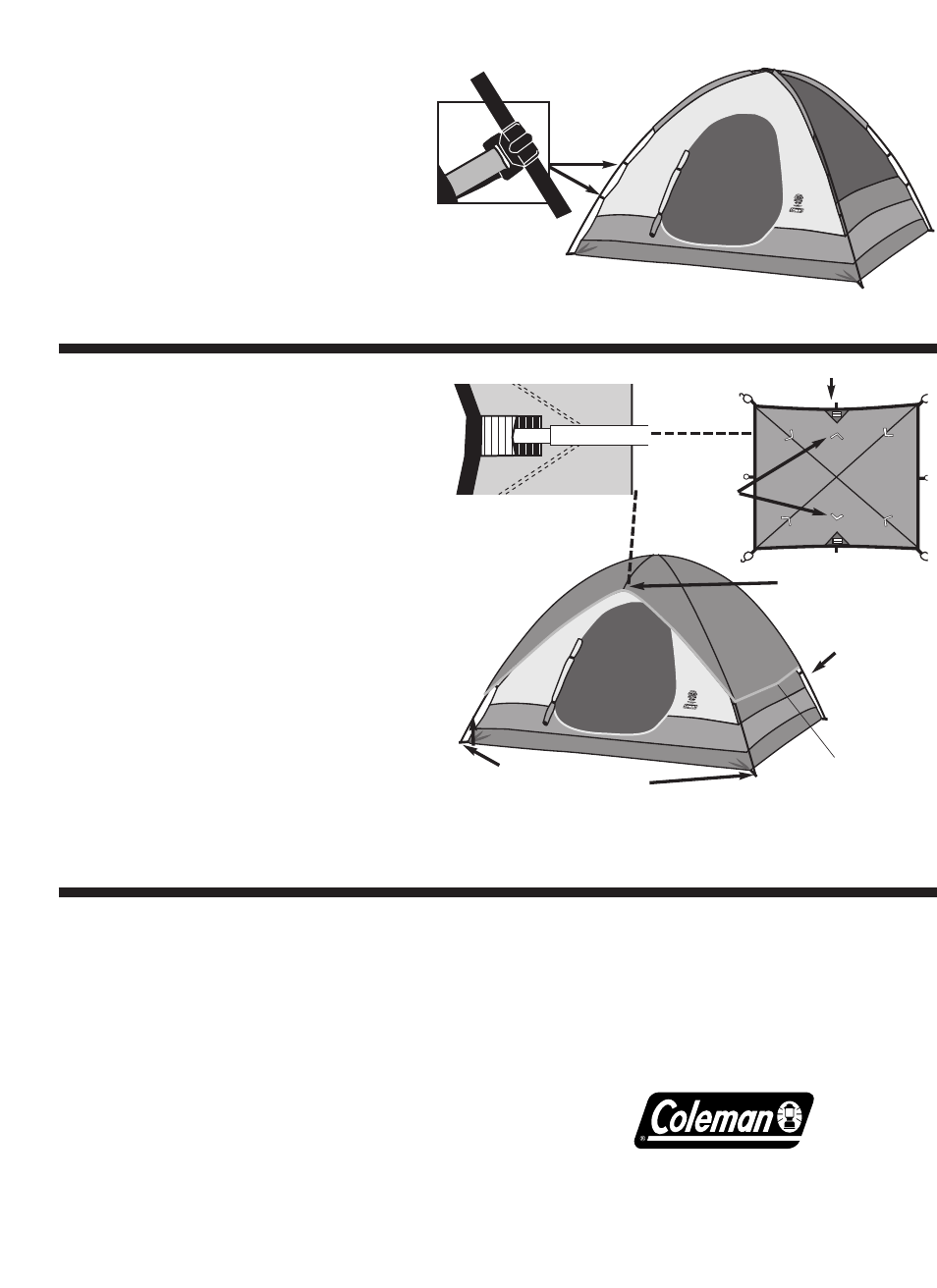

illus. 6
Assembled tent without rainfly.
illus. 5
Frame clips
illus. 7 Insert rainfly
pole piece into pocket
on underside of rainfly
illus. 9 Completed tent with rainfly.
illus. 8
Underside of
rainfly
attaches to
frame poles
Side
guyline
“S” hooks attach to
rings at the corners
Rainfly
pockets
Rainfly pocket
Pole
attachments
