Coleman SUNDOME 9160N101 - Manual

Connect Frame to Tent
–Insert one end of main tent pole
onto pin of pin & ring system at tent
corner. (illus. 4)
–Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
–Repeat for second pole. (illus. 5)
SUNDOME
™
10’x10’

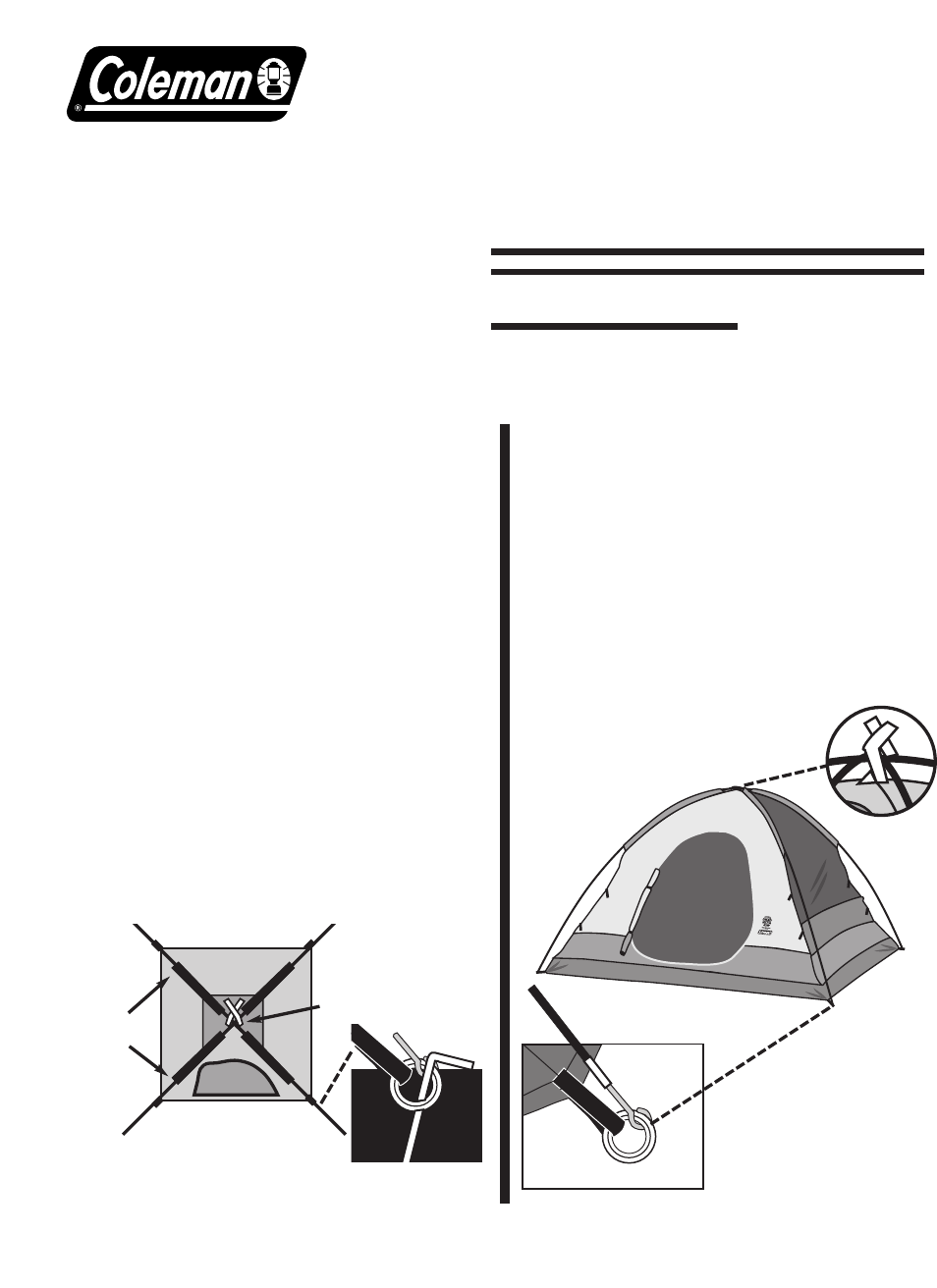

1 Layout & Positioning
of Tent, Pole Assembly
–Layout and position tent with door
facing desired direction. (illus. 1)
–Unzip door.
–Stake down tent using the rings of the
pin & ring system at the corners of the
tent. Keep the floor taut. (illus. 2)
–Assemble frame poles by
interlocking shock-corded poles.
This will make two long poles.
–Insert the poles diagonally into pole
sleeves.The center of the poles should
cross forming an “X” in the middle of
tent. (illus. 1)
–Fasten frame tie on top of tent over
both poles. (illus. 1), (illus. 3)
2
When You Are Ready To Set Up Your
Tent
–Select a level campsite clear of rocks,
branches and other hard or sharp
objects.
–Do not set up your tent under trees.
–For best results in windy conditions, do
not position the door of tent into the wind.
–See owners manual for more tips.
Rainfly
Poles
Rainfly Part No. 9160N104
Main Tent
Poles
POLE ASSEMBLY PARTS
Assembled
poles
inserted
through
pole
sleeves
Frame tie
Instructions apply to Part Number 9160N101
illus. 1
illus. 2 Tent stake
through ring
illus.4
Insert pole end onto
pin & ring
illus. 5 Tent
frame set-up
illus. 3
Frame tie
Part No. 9160B102
Part No. 9160A103
