SEE NEXT PAGE FOR STANDARD MOUNTING INSTRUCTIONS.
A*
B
C**
D
LMB
1/4” to 5/8”
5/16” to 9/16”
1.5”
4 to 5 ft-lb
LMQB
1/2” to 1.05”
3/8” to 11/16”
1.5”
6 to 7 ft-lb
NMB
1/2” to 1.05”
3/8” to 11/16”
1.5”
6 to 7 ft-lb
NMQB
1/2” to 1.05”
3/8” to 11/16”
1.5”
6 to 7 ft-lb
AMB
1/2” to 1.05”
3/8” to 11/16”
1.5”
6 to 7 ft-lb
AMQB
1/2” to 1.05”
7/16” to 11/16”
1.5”
6 to 7 ft-lb
GMB
1/2” to 1.05”
7/16” to 11/16”
1.5”
6 to 7 ft-lb
* LMB standard clamp has max 5/8” diameter. Accessory clamp K-LM20 can be
mounted for sizes up to 3/4” diameter. NM and AM clamps have an insert that
self-centers on the following diameter shafts: 1/2” (default), 3/4” and 1.05”. GM
clamps have an insert that self-centers on 3/4” diameter.
** Shorter with reversible clamp for NMB, AMB, and GMB.
Installation Instructions

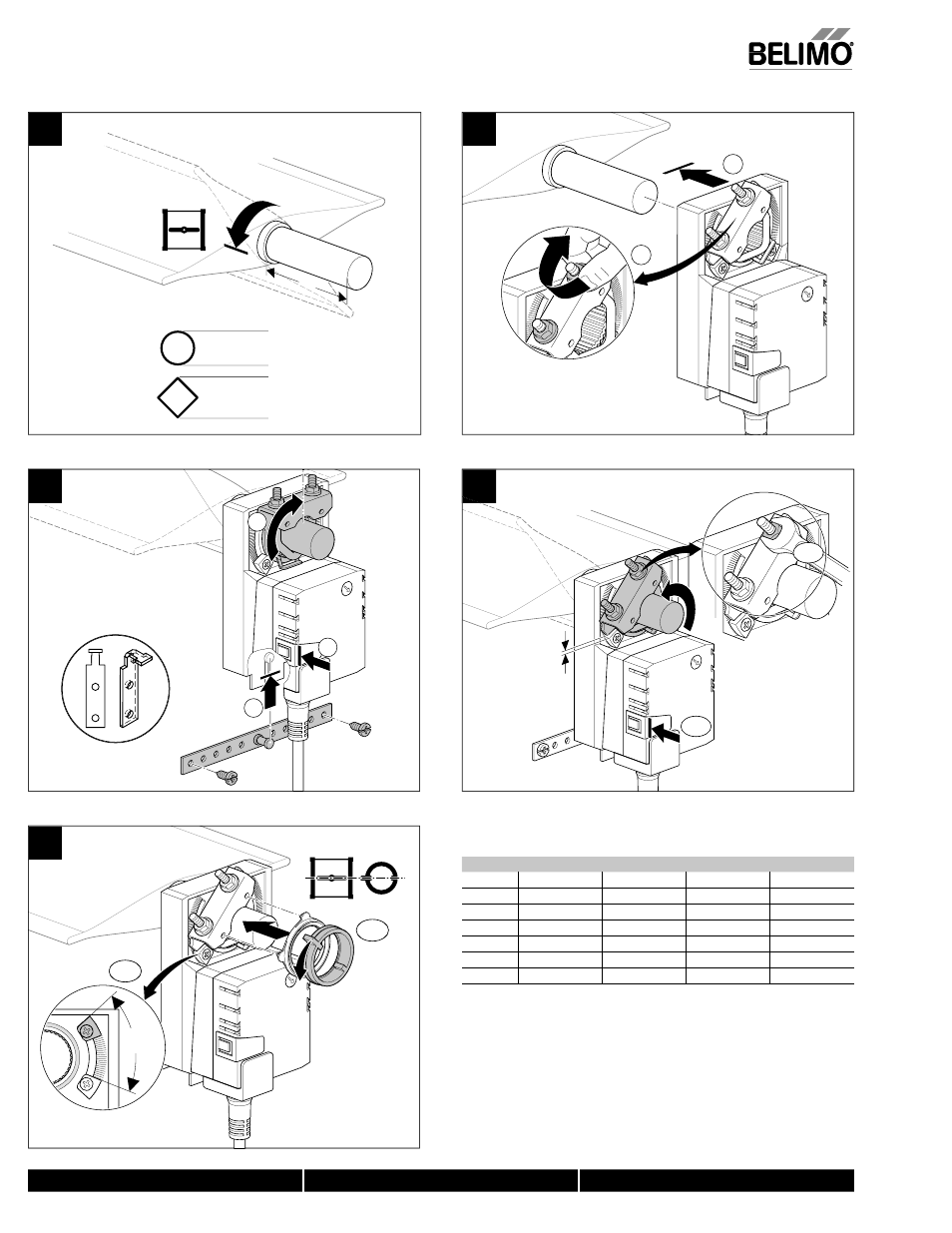

Quick-Mount Visual Instructions for Mechanical Installation
C
A
B
1
2
1
1
2
1
1
2
3
65
°
2
1
5
5°
10
D
2
1
4
LM Universal
Mounting Bracket
M40024 - 05/10 - Subject to change.
