Lights – Acura 2009 TL - Owner's Manual User Manual
Page 563

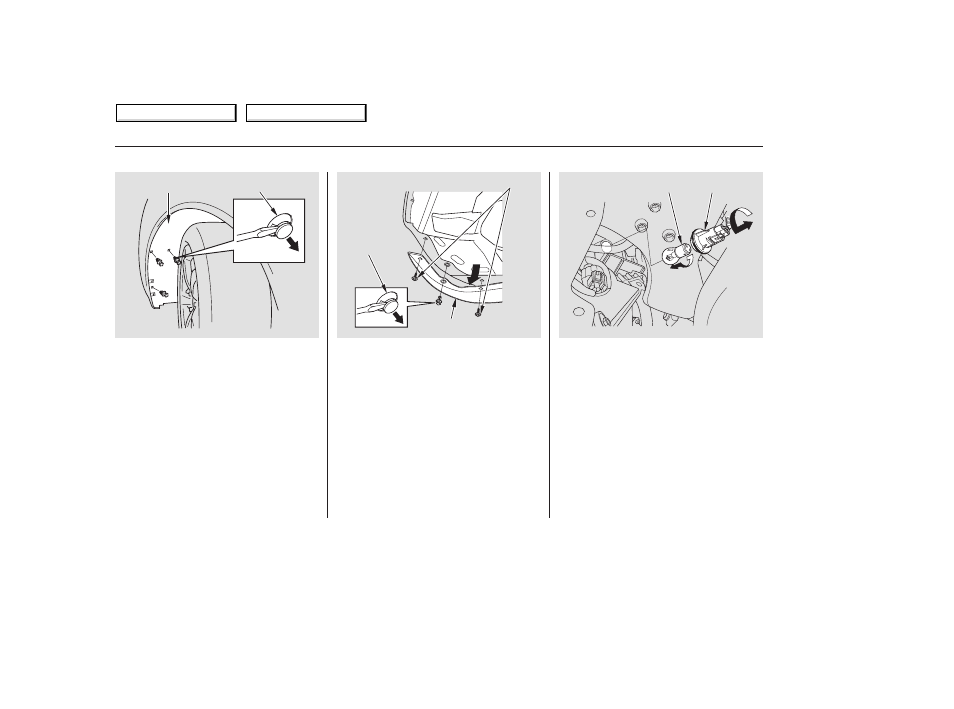

Remove the socket from the light
assembly by turning it one-quarter
turn counterclockwise.
Remove the bulb from the socket
by pushing it in and turning it
counterclockwise until it unlocks.
Use a flat-tipped screwdriver to
remove the three holding clips
from the inner fender.
Use a 10 mm wrench to remove
the two mounting bolts and
remove the holding clip with a flat-
tipped screwdriver.
Pull down the under cover from
the bumper carefully.
3.
2.
4.
5.
Lights
560
HOLDING CLIP
SOCKET
BULB
COVER
HOLDING
CLIP
SPOILER
BOLTS
2009 TL
