478
uu Fuses u Fuse Locations
Han
d
lin
g the U
n
expected

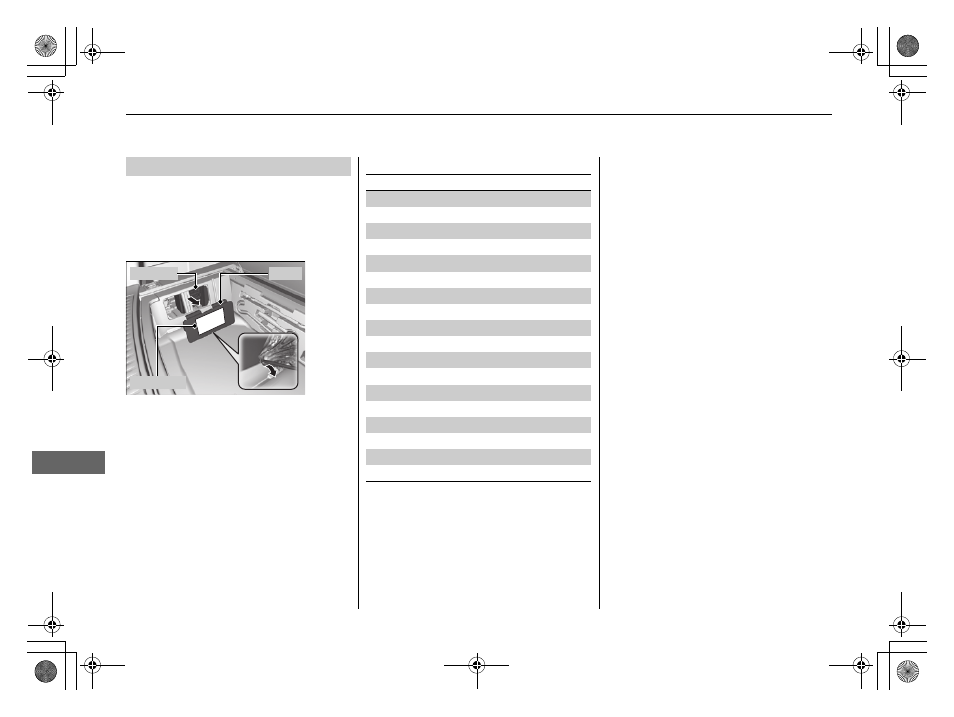

Located on the left side of cargo area.
Remove the cover by prying on the edge of
the cover using a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
Fuse locations are shown on the cover.
Locate the fuse in question by the fuse
number and box cover number.
■ Rear Fuse Box
Fuse Label
Fuse Box Cover
■ Circuit protected and fuse rating
Circuit Protected Amps
1 Power Tailgate Closer 20 A
2 Trailer Small Light * (20 A)
3 − −
4 Fuel Lid 7.5 A
5 Seat Slide 20 A
6 − −
7 Rear H/Seat * (20 A)
8 − −
9 Trailer Charge * (20 A)
10 Trailer Back Light * (7.5 A)
11 Trailer Hazard * (7.5 A)
12 Rear Wiper 10 A
13 ECU RR 7.5 A
14 − −
15 − −
16 − −
17 Trailer E-Brake * (20 A)
18 Power Tailgate Motor 40 A
* Not available on all models
