476
uu Fuses u Fuse Locations
Han
d
lin
g the U
n
expected

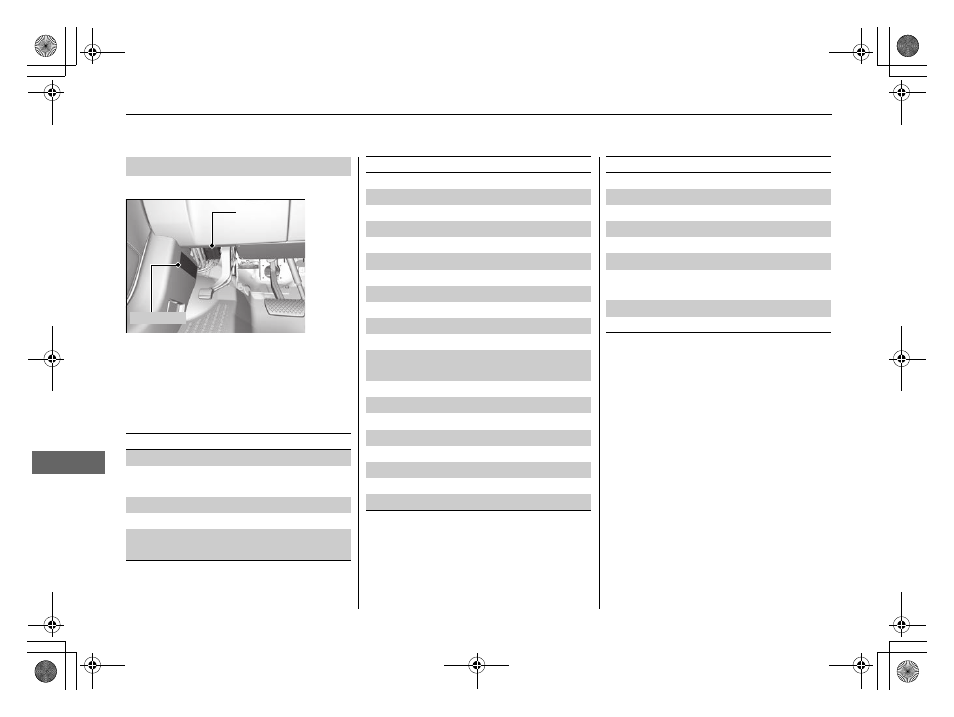

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■ Circuit protected and fuse rating
■ Driver’s Side Interior Fuse Box
Fuse Box
Fuse Label
Circuit Protected Amps
1 Passenger’s Side Door Lock 10 A
2
Rear Passenger’s Side Door
Lock
7.5 A
3 Driver’s Side Door Lock 7.5 A
4 Passenger’s Door Unlock 10 A
5
Rear Passenger’s Side Door
Unlock
7.5 A
6 Driver’s Side Door Unlock 7.5 A
7 Door Lock Main 20 A
8 HAC OP 10 A
9 ETS TELE 20 A
10 IG1 RR Box 15 A
11 IG1 Meter 7.5 A
12 IG1 FR Box 20 A
13 ACC 7.5 A
14 − −
15 Driver’s Power Seat Sliding 20 A
16 Moonroof 20 A
17
Rear Driver’s Side Power
Window
20 A
18 SMART 10 A
19 Driver’s Power Window 20 A
20 − −
21 Fuel Pump 20 A
22 AS Box 15 A
23 VSA 7.5 A
24 ACG AS 7.5 A
25 STRLD 7.5 A
Circuit Protected Amps
26 IG2 HAC 7.5 A
27 IG2 DRL 7.5 A
28 ACC Key Lock 7.5 A
29 Driver Power Lumbar 7.5 A
30 Interior Lights Cut 7.5 A
31 ETS TILT 20 A
32
Driver’s Power Seat
Reclining
20 A
33 − −
34 − −
Circuit Protected Amps
