474
Han
d
lin
g the U
n
expected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
There are two fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

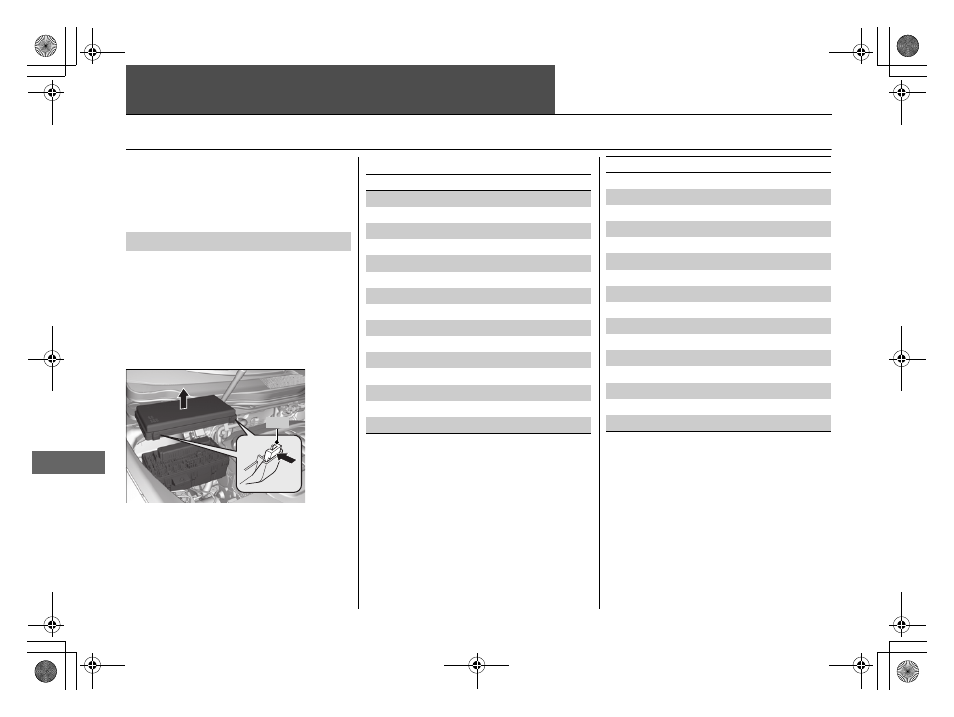

Located near the brake fluid reservoir. Push
the tabs to open the box.
■ Engine Compartment Fuse Box
Tab
■ Circuit protected and fuse rating
Circuit Protected Amps
1 − −
2 − −
3 ACG FR 15 A
4 IG1 Washer 15 A
5 IG1 VBSOL 7.5 A
6 IG1 ECU FR 7.5 A
7 − −
8 FI SUB 15 A
9 DBW 15 A
10 FI Main 15 A
11 IG Coil 15 A
12 DRL R 10 A
13 DRL L 10 A
14 INJ 20 A
15 Radio 20 A
16 Back Up 10 A
17 MG Clutch 7.5 A
18 Front Fog * (20 A)
19 − −
20 Right Headlight High Beam 7.5 A
21 − −
22 Small 10 A
23 − −
24 Left Headlight High Beam 7.5 A
25 − −
26 Right Headlight Low Beam 10 A
27 Left Headlight Low Beam 10 A
28 IGPS Oil LVL 7.5 A
29 Cooling Fan 30 A
30 Sub Fan 30 A
31 WIP Main 30 A
Circuit Protected Amps
* Not available on all models
