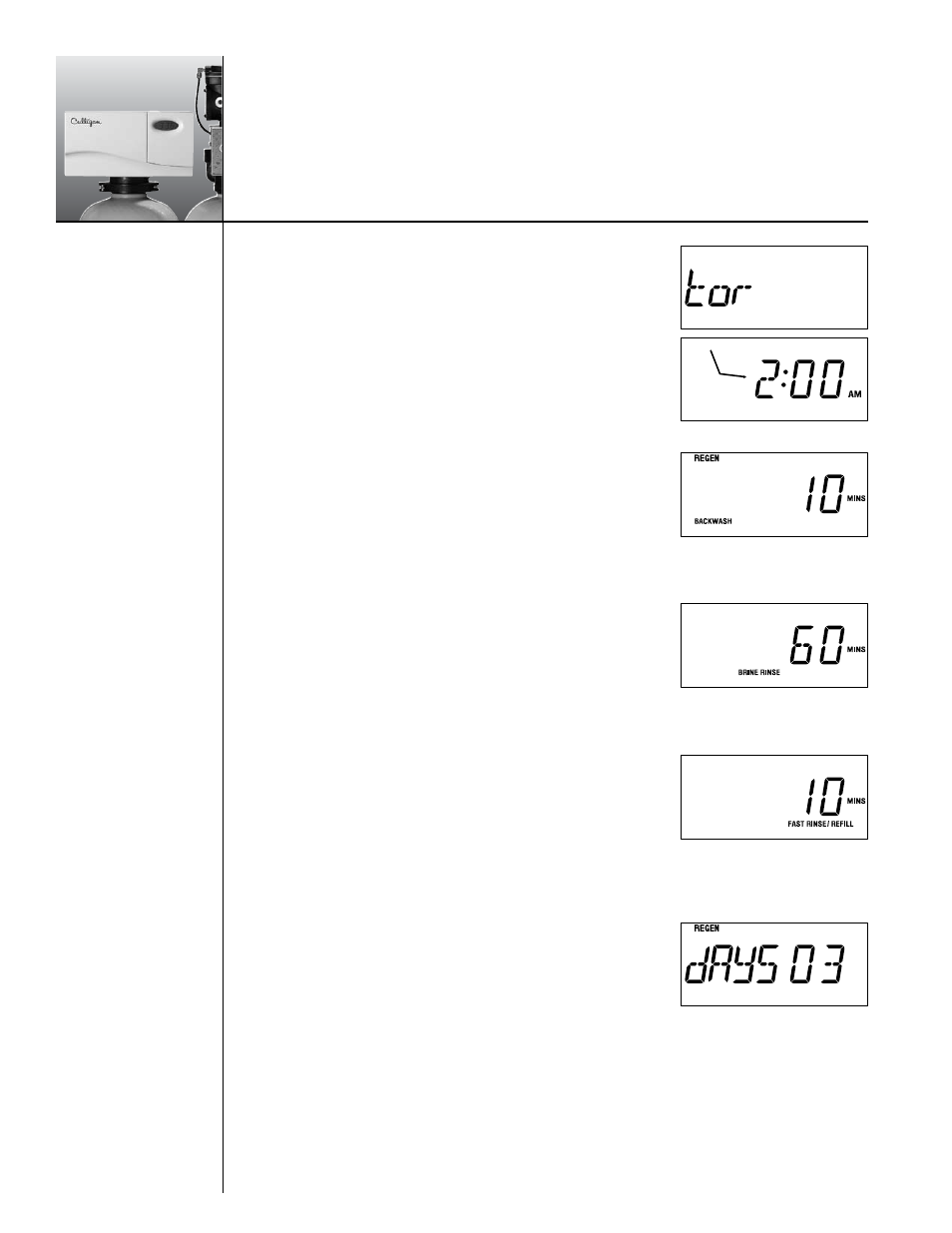

• Time of Regeneration - This setting is used to program the
time at which a regeneration is to occur in the delay mode, or in
immediate mode with time clock backup on. The display will first
show “tor” for two seconds.
After “tor” is shown the display will then show the default of 2:00
AM (or the current programmed time of regeneration if already
set). The time can be adjusted in 30 minute increments by
pressing the “Up” or “Down” keys.
Pressing the “Program” key will save the setting and move to the
next programming step.
• Cycle 1 Time (Backwash) – This setting is used to program
the backwash cycle. The time of the cycle is kept in minutes.
The display will show the “Backwash” and “Mins” icons and the
cycle time in the right most digits. Adjust the value with the “Up”
or “Down“ keys.
Pressing the “Program” key will save the setting and move to the
next programming step.
• Cycle 2 Time (Pause) – This setting is used to set the time in
minutes for cycle 2. This cycle is usually brine draw / slow rinse
for softeners and a settling time for filters. The display will show
the “BRINE RINSE” and “MINS” icons and the cycle time in the
right most digits. Adjust the value with the “Up” or “Down“ keys.
Pressing the “Program” key will save the setting and move to the
next programming step.
• Cycle 3 Time (Fast Rinse) – This setting is used to set the time
in minutes for cycle 3. This cycle is usually fast rinse for softeners
and filters. For softener applications it may include the refill
operation. The display will show the “FAST RINSE”, “/”,“REFILL”
and “MINS” icons for 4-cycle valves or “FAST RINSE” and
“MINS” icons for 5-cycle valves and filters with the cycle time in
the right most digits. Adjust the value with the “Up” or “Down“ keys.
Pressing the “Program” key will save the setting and move to the next programming step.
• Regeneration Interval - This setting is used to set the days
between regeneration in time clock mode. It is also active in
meter mode if the time clock backup DIP switch # 10 is set to on.
The display will show “REGEN” icon and “dAYS” as well as the
numbers to change. Adjust the value with the “Up” or “Down”
keys.
Pressing the “Program” key will save the setting and move to the next programming step.
Programming
(cont.)
Time Flashing
