HI HLPT SERIES LOAD POINT ASSEMBLY
Page 4
Round Vessel with
3 Load Point
Assemblies

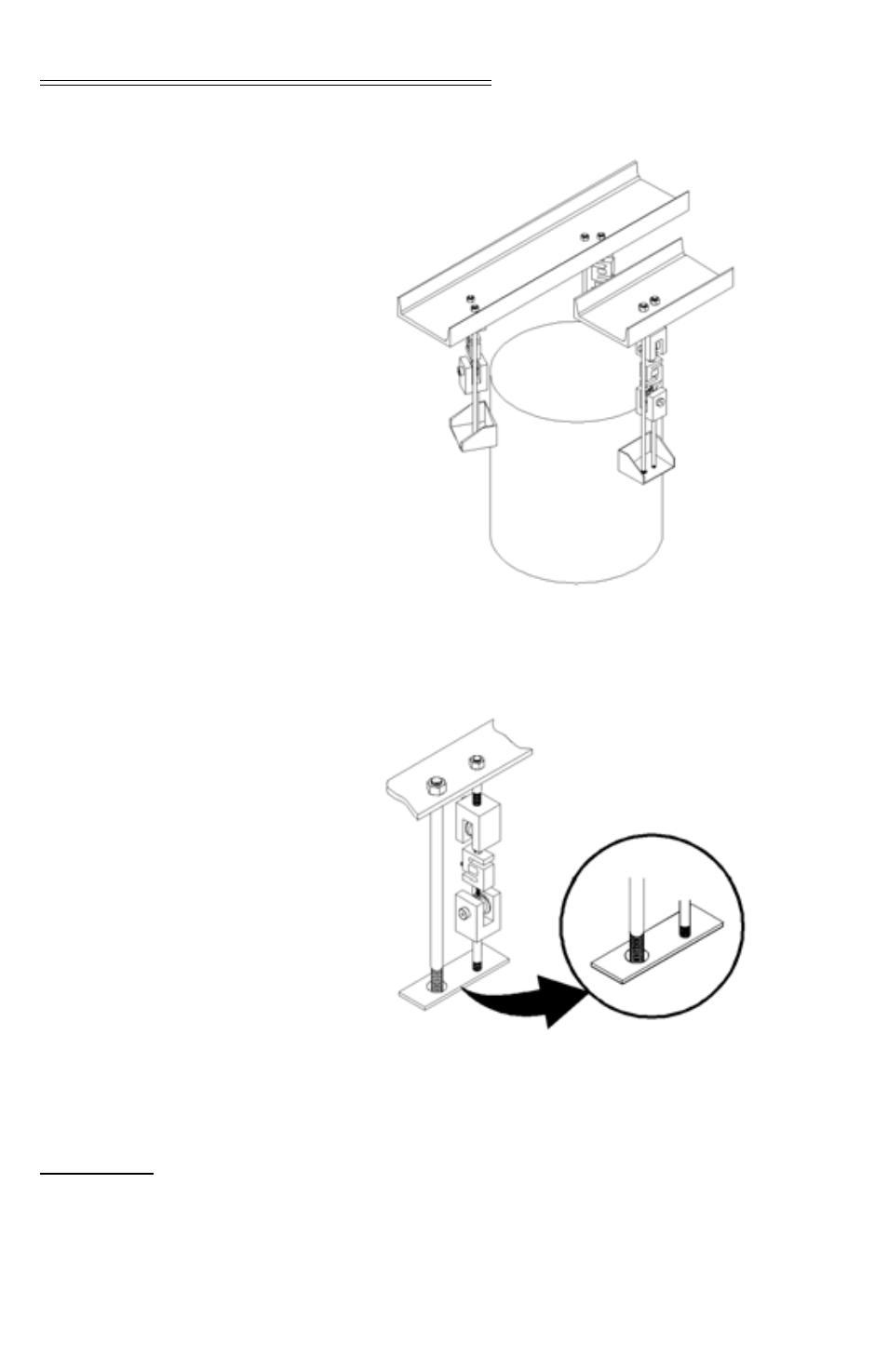

FIG. 3: VERTICAL TANK - 3 LOAD CELLS
Safety Rods
FIG. 4: SPACE REQUIRED FOR SAFETY
RODS
CAUTION: THE ORIENTATION OF THE TOP AND BOT-
TOM CLEVIS ASSEMBLY MUST BE AT 90
° AS
SHOWN IN FIG. 4. IMPROPER ORIENTA-
TION CAUSES THE CLEVISES TO MISALIGN.
THIS CAN LEAD TO BINDING WHICH CAN
