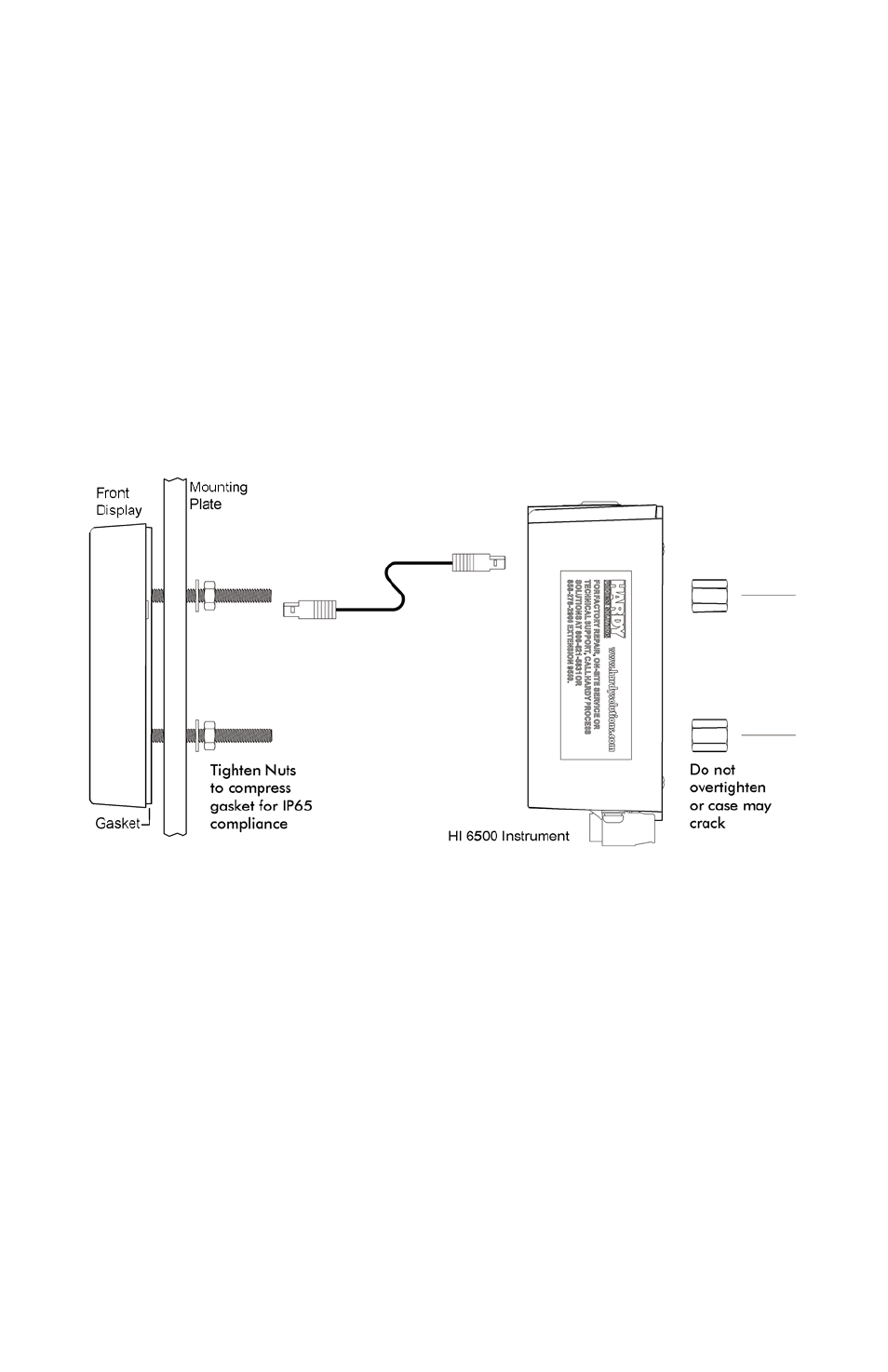

Panel Installation:
1. Use template provided to drill the hole pattern into panel.
2. Install the display onto the panel using 4mm nuts and washers,
tighten until gasket is compressed and display bezel comes in
contact with the panel. Do not overtighten or the instrument’s case
may crack.
3. Connect the display cable to display and then to the instrument.
4. Slide the instrument onto threaded rods and secure in place with
8mm x 4mm retaining nuts using an 8mm nut wrench (do not over
tighten instrument retaining nuts, overtighting could cause the
instrument to crack).
DIN Rail Installation:
1. Use template provided to drill the hole pattern into panel
2. Install the display panel using 4mm nuts and washers, tighten until
gasket is compressed (4mm screws tightened with an 8 mm nut
wrench) with a length length appropriate to panel thickness can be
used in place of the 4mm rods sent with the unit).
3. Place the instrument onto the DIN rail, slide DIN rail clip up until it
snaps into place to secure.
4. Connect the display cable to the display panel and instrument
(legthen the cable as needed by using a thin screwdriver to release
and replace wires between the two connectors).
