4| Compressor assembly

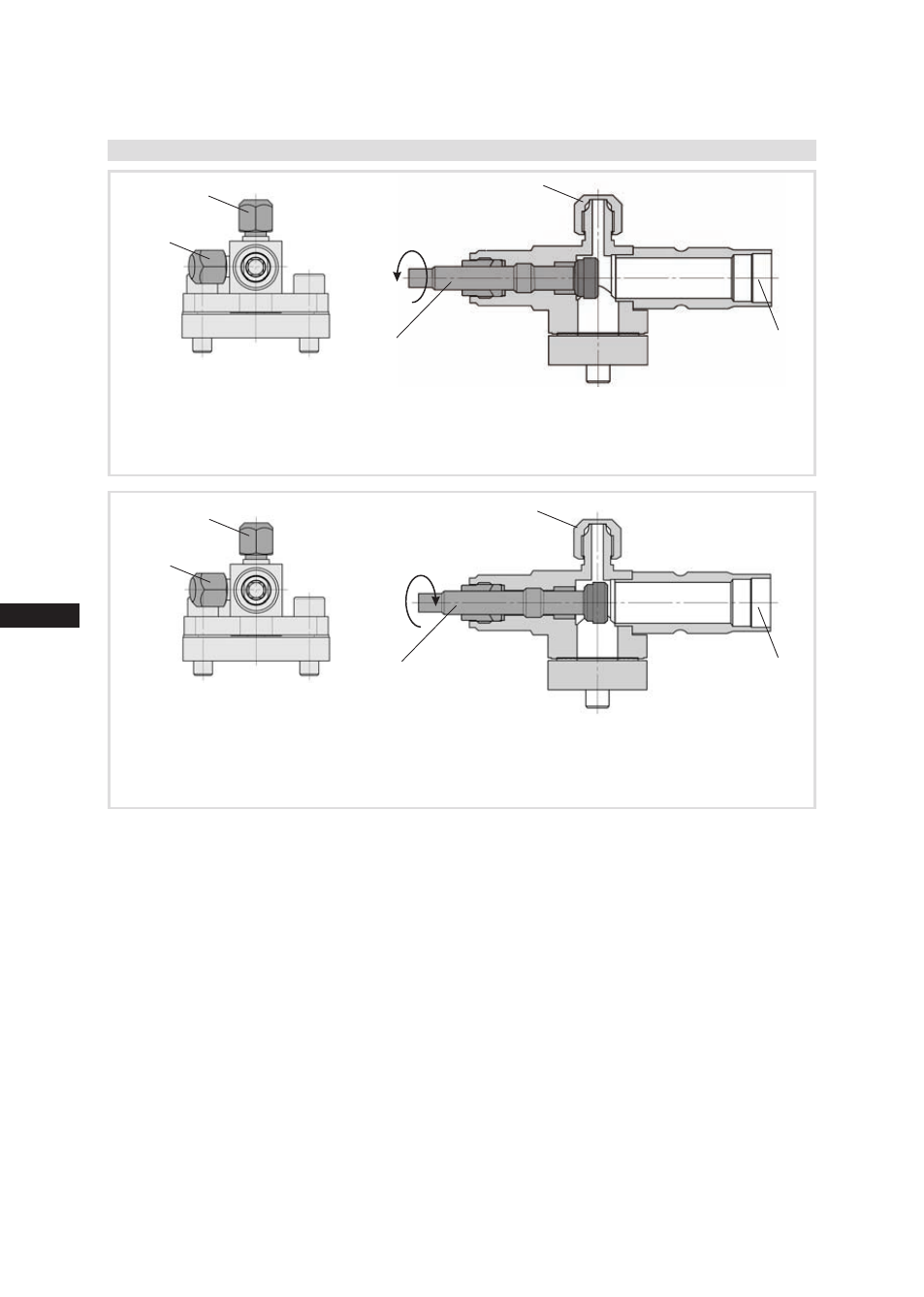

4.9 Operating mode of the lockable service connections
Opening the shut-off valve:
a) Spindle 1: turn to the left (counter-clockwise) as far as it will go.
—> Shut-off valve fully opened /
service connection 2 closed
Fig. 15
Fig. 16
1
1
3
3
Pipe connection
Pipe connection
Opening the service connection (2):
b) Spindle 1: Turn ½ - 1 rotation to the right.
—> Service connection 2 opened / shut-off valve opened.
Connection 3 is provided for safety devices and is not lockable.
3
3
2
2
