4| Compressor assembly
4.1 Setting up

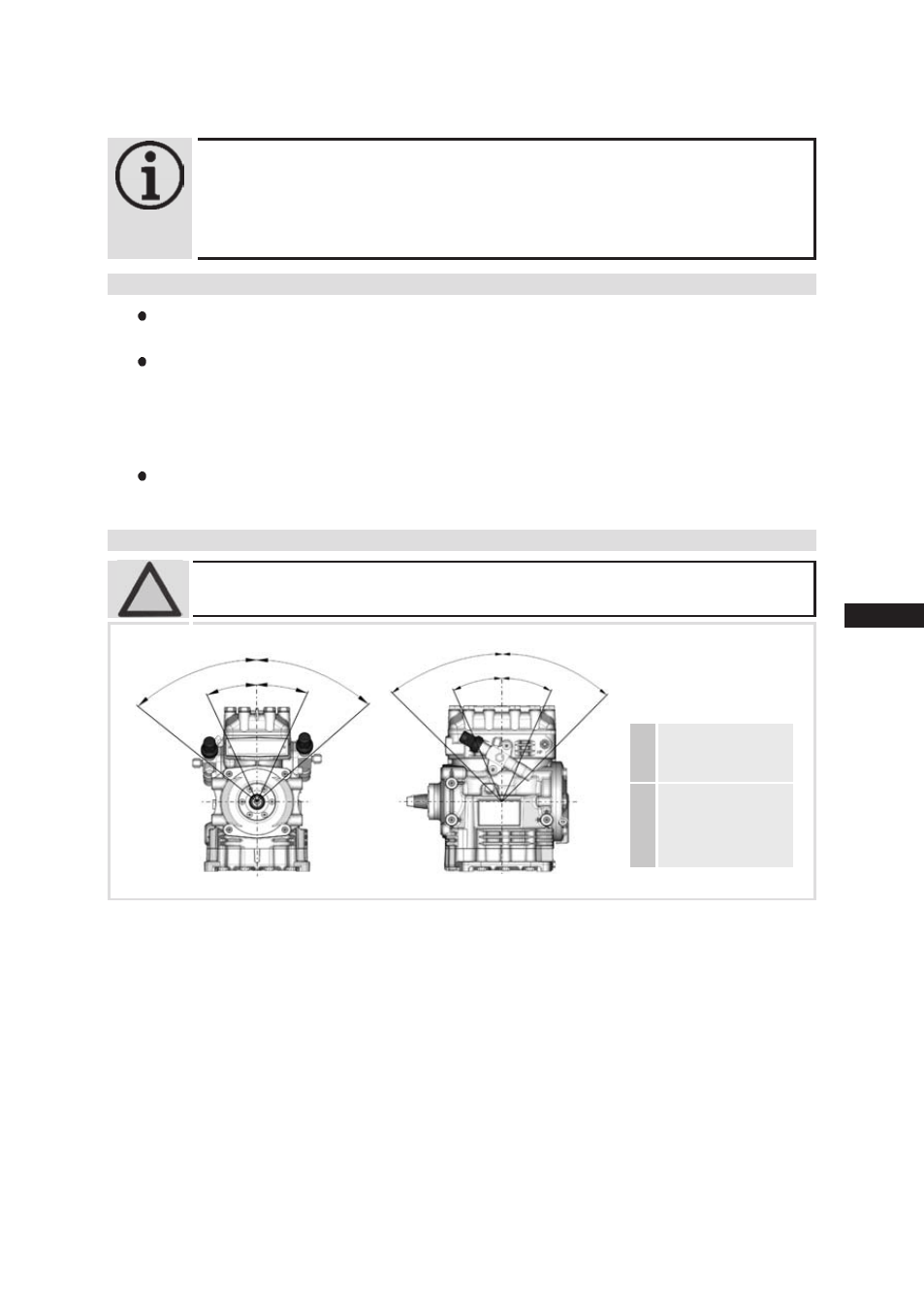

4.2 Maximum permissible inclination
A max. 30°,
max. 2 minutes
a max. 15°,
continuous
operation
ATTENTION! Poor lubrication can damage the compressor.
Respect the stated values.
INFO! New compressors are factory-filled with inert gas (3 bar nitrogen).
Leave this service charge in the compressor for as long as
possible and prevent the ingress of air.
Check the compressor for transport damage before
starting any work.
Fig. 8
A
A
a
a
A
A
a
a
Fittings (e.g. pipe holders, additional units etc.) on the compressor are permissible only
following consultation with Bock.
Setup on an even surface or frame with sufficient load-bearing capacity. The compressor can
be fastened as follows:
- using the 4 drill holes on the baseplate
- using the 3 side M10 tapped blind holes on the left or right of the compressor housing
- using the 4 M10 tapped blind holes on the front of the compressor housing.
Correct setup of the compressor and mounting of the belt drive are decisive for running
comfort, operating safety and the service life of the compressor.
