10. USB 2.0 connector (10-pin USB1)
This connector is for USB 2.0 ports. Connect the USB module cable to
this connector, then install the module to a slot opening at the back of the
system chassis. This USB connector complies with USB 2.0 specification that
supports up to 480 Mbps connection speed.
USB1
PIN 1
+5V
USB4-_R
USB4+_R
GND
GND
GND
GND
USB5+_R
USB5-_R
+5V

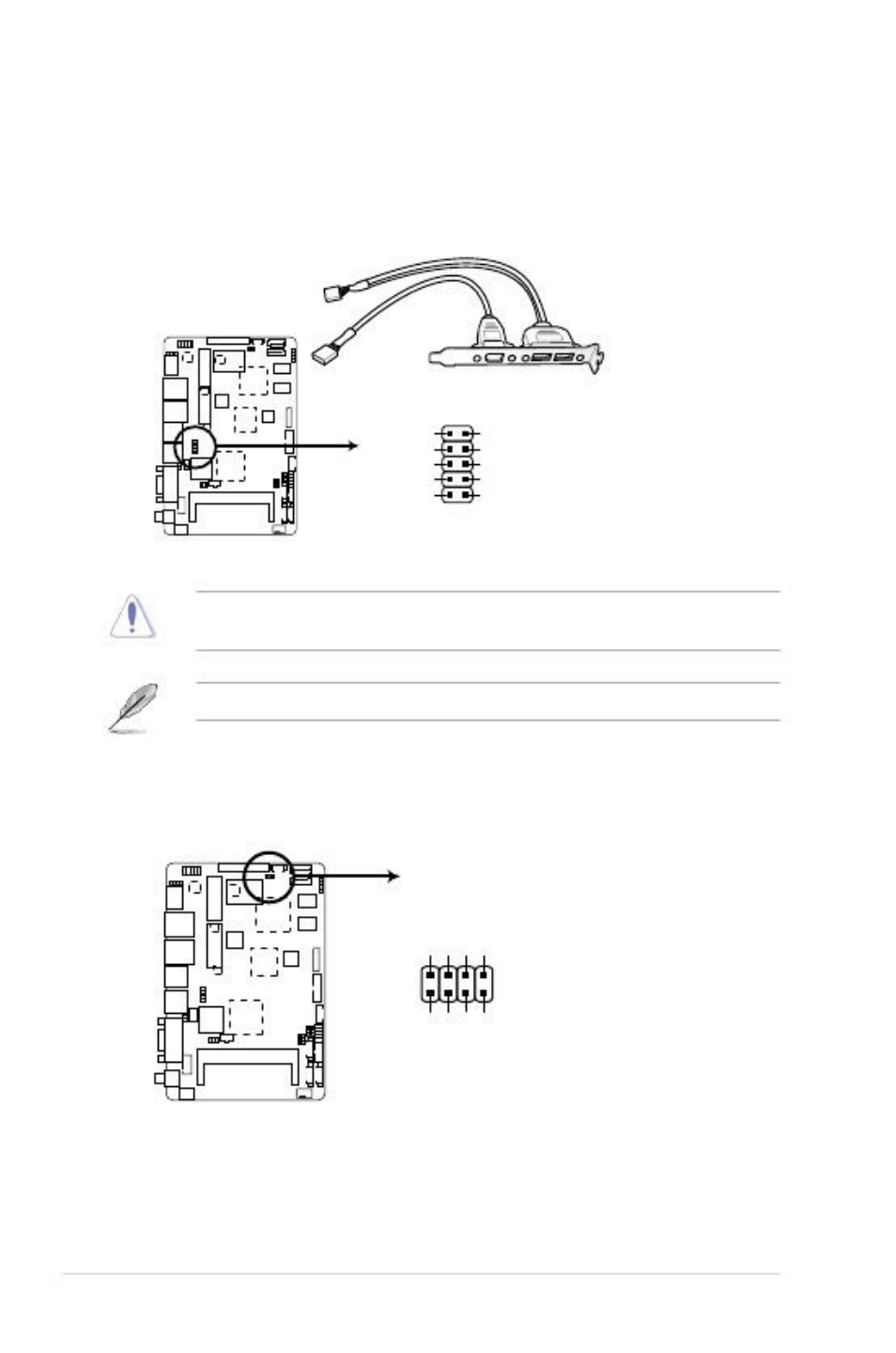

faytech Industrial Motherboard Series USB 2.0 connector
CAUTION! Never connect a 1394 cable to the USB connector. Doing so will
damage the motherboard!
NOTE: The USB module cable is purchased separately.
11.
Use this connector to flash BIOS SPI ROM.
GNDSPI_CLKSPI_MO
SI(NC)
SPI programming connector (8-pin SPI1)
SPI1
+V3.3SPISPI_CS#SPI_
MISO(NC)
PIN 1
faytech Industrial Motherboard Series SPI programming connector
