A brief overview of SidStation
1
2
3
4
5

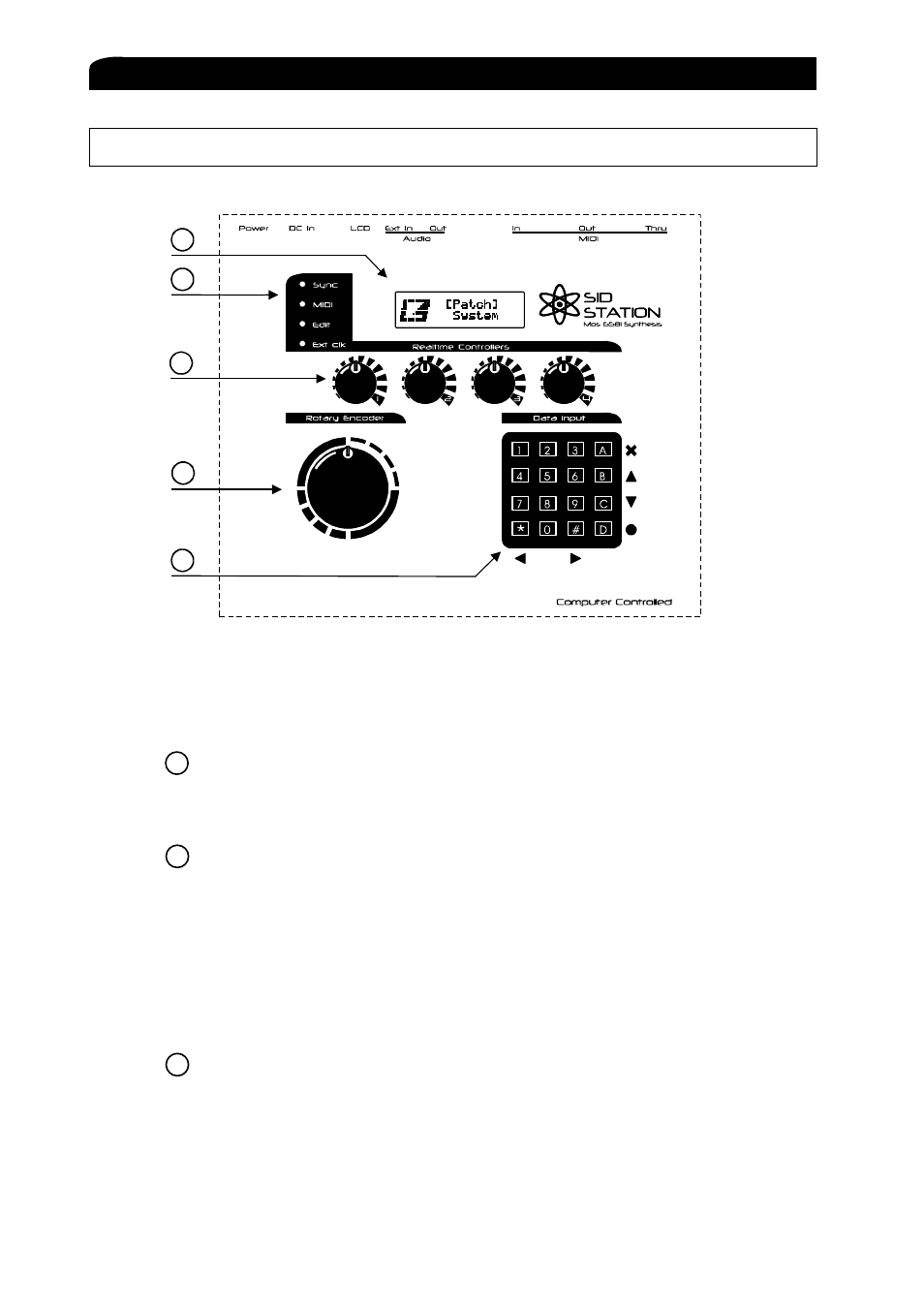

The SidStation interface
1 LCD
The backlit liquid crystal display (LCD) is your source of information of what’s happening in your
SidStation.
2 Indicator LEDs
Sync – Indicates the current update speed of the SidStation. Each blink represents one
hundred updates.
MIDI – Indicates incoming MIDI note events
Edit – This LED indicates that a patch is currently being edited.
Ext clk – Indicates when the SidStation is slaved to external MIDI clock.
3 Real-time control knobs
These knobs are used for changing parameters both in edit mode and in play mode. By turning
a knob clockwise the corresponding value on the LCD increases. Doing the opposite decreases
the value. This allows quick and easy editing in the SidStation menu system. In this manual we
refer to them as [KNOB 1], [KNOB 2], [KNOB 3] and [KNOB 4].
