A-196 PLL System A - 100 doepfer
4

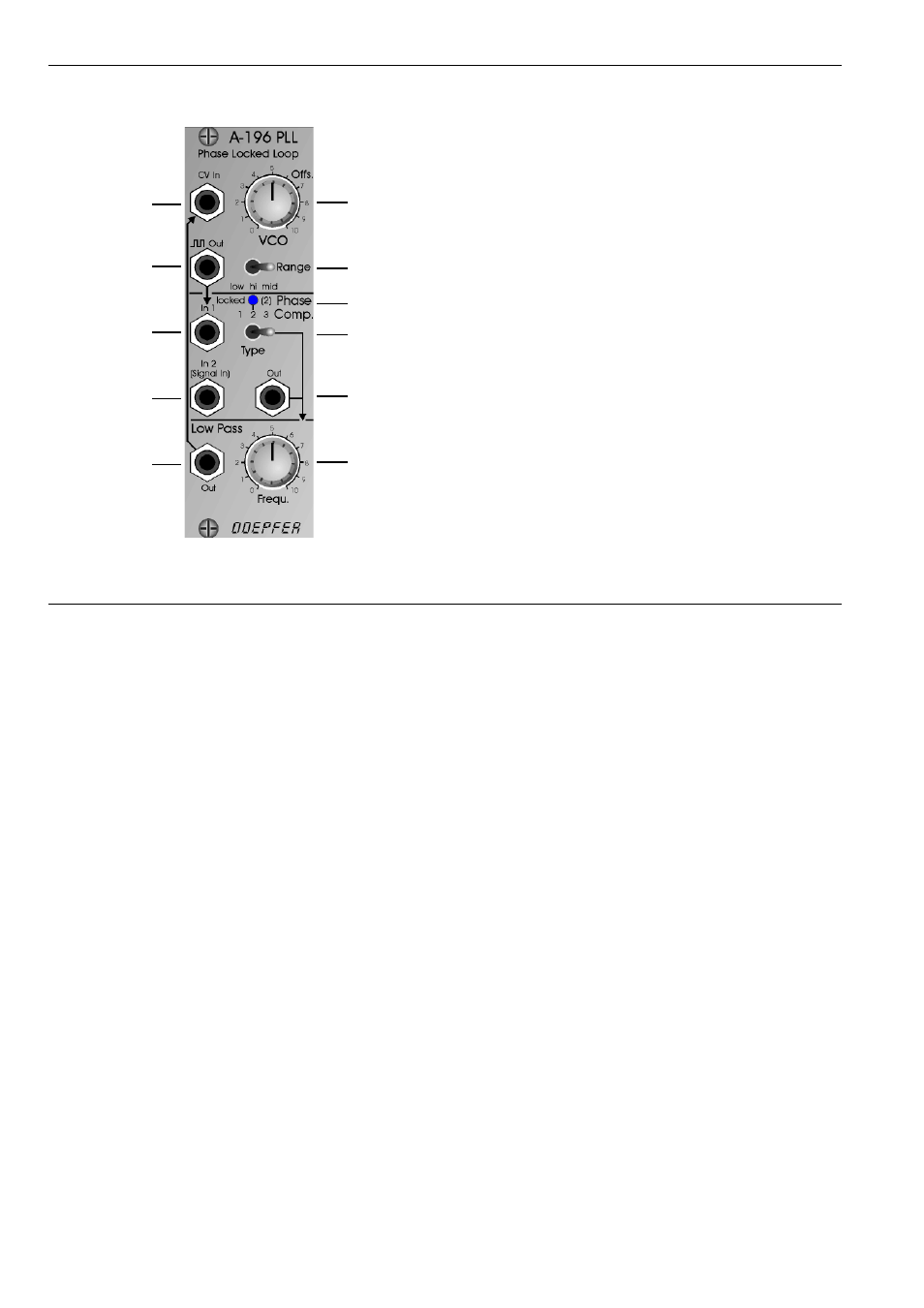

3. Overview Controls:
1 Range : Three-position frequency range switch
for the VCO
2 Offs. : Frequency offset control
3 Type : Three-position switch to select one of
the three phase comparators
4 LED : lock display for PC2
5 Frequ.: Frequency control of the low pass
filter
In- / Outputs:
! VCO CV In : Control voltage input of the VCO,
internally normalled to socket %
" VCO Out : VCO output (rectangle), internally
normalled to socket §
§ PC In 1 : Signal input 1 of the PC, internally
normalled to socket "
$ PC In 2 : Signal input 2 of the PC for external
signal
% Out : PC output, internally connected to the
low pass filter input
& Out : Low pass filter output
!
2
"
§
$
&
1
4
3
%
5
