Doepfer A-111-5 Synthesizer Voice - Manual (Page 7)

DOEPFER System A-100 Synthesizer Voice A-111-5
7
16
17
12
13a
18
13b
14c
19
14a
14b
15c
20
15a

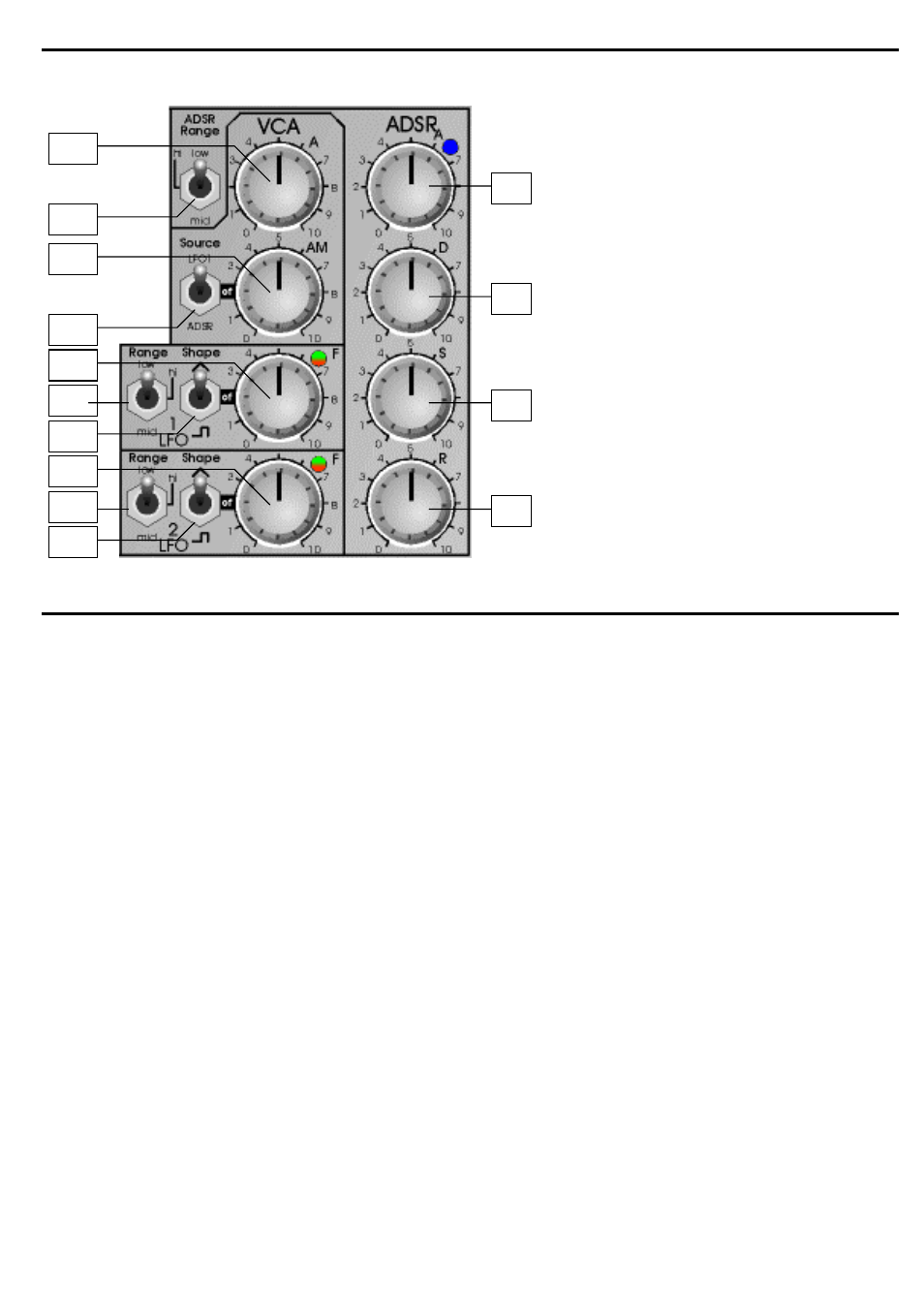

Fig. 2b: Front Panel
(VCA, LFO, ADSR)
12
VCA Amplitude (Manual Gain)
13a VCA AM Source Switch
13b VCA AM Level
14a LFO1
Frequency
14b LFO1 Frequency Range Switch
14c LFO1 Waveform Switch
15a LFO2
Frequency
15b LFO2 Frequency Range Switch
15c LFO2 Waveform Switch
16 ADSR
Range Switch
17 ADSR Attack Time
18 ADSR Decay Time
19 ADSR Sustain Level
20 ADSR Release Time
15b
